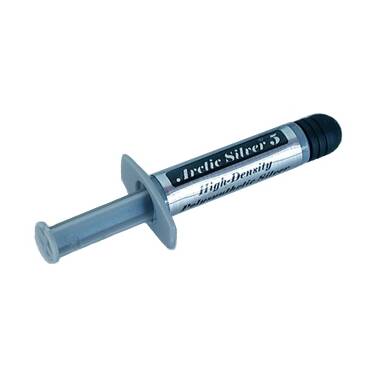

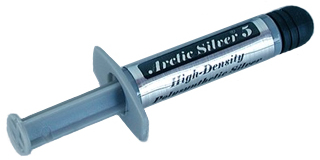

Arctic Silver 5 12G Thermal Compound
Web ID: 39376
With its unique high-density filling of micronized silver and enhanced thermally conductive ceramic particles, Arctic Silver 5 provides a new level of performance and stability. Available at Arctic Silver resellers worldwide. Arctic Silver 5 is the reference premium thermal compound. Arctic Silver 5 is optimized for a wide range of bond lines between modern high-power CPUs and high performance heatsinks or water-cooling solutions.
Manufacturer Warranty: 1 Year
Manufacturer PN: AS5-12G
GTIN: 832199001021
Manufacturer Website
Made With 99.9% Pure Silver: |
Absolute Stability: Compliancy: RoHS3 Compliant. |
Average Particle Size:
<0.49 micron <0.000020 inch
Extended Temperature Limits:
Peak: –50°C to >180°C
Long-Term: –50°C to 130°C
Performance:
3 to 12 degrees centigrade lower CPU full load core temperatures than standard thermal compounds or thermal pads when measured with a calibrated thermal diode imbedded in the CPU core.
Coverage Area:
A 3.5 gram syringe contains enough compound to cover at least 15 to 25 small CPU cores, or 6 to 10 large CPU cores, or 2 to 5 heat plates. At a layer 0.003" thick, the 3.5 gram syringe will cover approximately 16 square inches.
