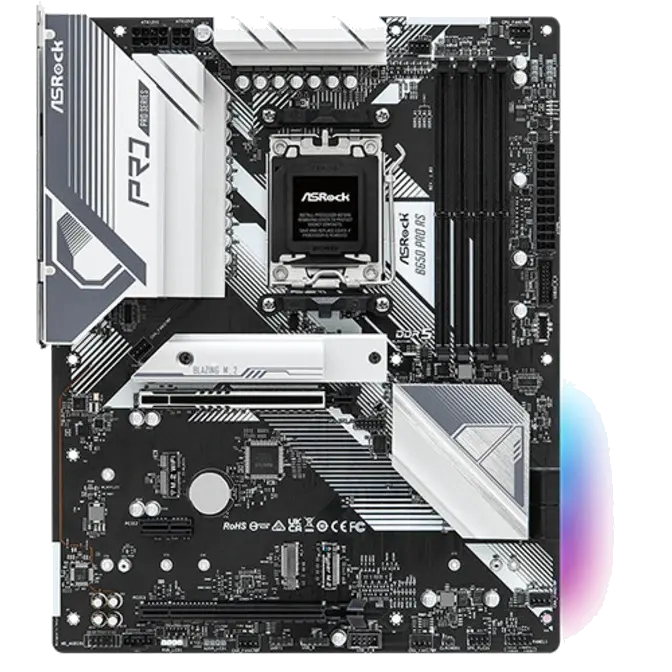

Asrock AM5 ATX B650 Pro RS DDR5 Motherboard


Asrock AM5 ATX B650 Pro RS DDR5 Motherboard

Web ID: 34867

CPU Socket: AMD AM5 || For 7000 Series Desktop Processors
Form Factor: ATX
Chipset: AMD B650E Chipset
Compatible Memory: DDR5 || 4 x DIMM Sockets
Wi-Fi: WiFi 6E + Bluetooth
PCIe Sockets: 1 x PCIe 5.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 4.0 x1
M.2 Sockets: 3 x M.2 PCIe
SATA Ports: 4 x SATA 6Gb/s
RAID Support: 0, 1, 10
Ethernet Port: 1 x RJ45 2.5G
Video Ports: 1 x HDMI || 1 x Displayport
Rear USB Ports: 1 x USB 3.2 Gen 2 Type-A || 2 x USB 2.0 || 6 x USB 3.2 Gen 1 Type-A || 1 x USB 3.2 Gen2 Type-C Port
Internal USB Ports: 1 x USB 3.2 Gen 1 Header || 1 x USB 3.2 Type C Header || 2 x USB 2.0 Header
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: B650 Pro RS
Manufacturer Website

$389
 Add to cart
Out of Stock
 Compare
 Wish List
 Question

asrock am5 atx b650 pro rs ddr5 motherboard

  • Unique Feature

    Superb Productivity
    - PCIe Gen5 (M.2)
    - Dual Channel DDR5
    Rock-Solid Durability
    - 14+2+1 Power Phase, 60A SPS with Enlarged Heatsink Armor
    - Flexible Integrated I/O Shield
    Ultrafast Connectivity
    - 2.5G LAN EZ Update
    - BIOS Flashback Button
    - ASRock Auto Driver Installer
    EZ Troubleshooter
    - ASRock Post Status Checker

  • CPU

    - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors

  • Chipset

    - AMD B650

  • Memory

    - Dual Channel DDR5 Memory Technology
    - 4 x DDR5 DIMM Slots
    - Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC)
    - Max. capacity of system memory: 128GB
    - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

  • BIOS

    - 256Mb AMI UEFI Legal BIOS with GUI support

  • Graphics

    Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
    - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

  • Audio

    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    - Nahimic Audio

  • LAN

    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    - Dragon RTL8125BG
    - Supports Dragon 2.5G LAN Software
    - Smart Auto Adjust Bandwidth Control
    - Visual User Friendly UI
    - Visual Network Usage Statistics
    - Optimized Default Setting for Game, Browser, and Streaming Modes
    - User Customized Priority Control

  • Slots

    CPU:
    - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
    - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*
    Chipset:
    - 1 x PCIe 4.0 x1 Slot (PCIE2)*
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*

    - Supports AMD CrossFire™
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)


    *Supports NVMe SSD as boot disks

  • Storage

    CPU:
    - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    Chipset:
    - 1 x M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes*
    - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
    - 2 x SATA3 6.0 Gb/s Connectors
    ASMedia ASM1061:
    - 2 x SATA3 6.0 Gb/s Connectors


    *Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit

  • RAID

    - Supports RAID 0 and RAID 1 for SATA storage devices
    - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*


    *Requires additional M.2 NVMe expansion cards to support RAID 10

  • USB

    - 1 x USB 3.2 Gen2x2 Type-C (Front)
    - 1 x USB 3.2 Gen2 Type-C (Rear)
    - 1 x USB 3.2 Gen2 Type-A (Rear)
    - 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
    - 9 x USB 2.0 (6 Rear, 3 Front)


    *All USB ports support ESD Protection

  • Connector

    - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x RGB LED Header*
    - 3 x Addressable LED Headers**
    - 1 x CPU Fan Connector (4-pin)***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x 4 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
    - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)


    *Supports in total up to 12V/3A, 36W LED Strip

    **Support in total up to 5V/3A, 15W LED Strip

    ***CPU_FAN1 supports the fan power up to 1A (12W).

    **** CPU_FAN2/WP supports the fan power up to 2A (24W).

    *****CHA_FAN1~4/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

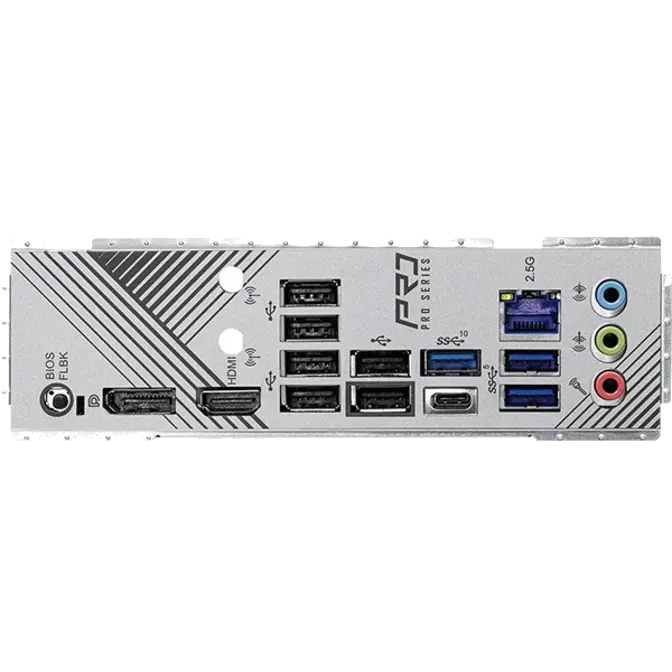

  • Rear Panel I/O

    - 2 x Antenna Mounting Points
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
    - 2 x USB 3.2 Gen1 Ports
    - 6 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - 1 x BIOS Flashback Button
    - HD Audio Jacks: Line in / Front Speaker / Microphone

  • Software and UEFI

    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock Dragon 2.5G LAN Software
    - ASRock Polychrome SYNC*
    UEFI
    - ASRock Full HD UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash


    *These utilities can be downloaded from ASRock Live Update & APP Shop.

  • Accessories

    - 1 x User Manual
    - 2 x SATA Data Cables
    - 3 x Screws for M.2 Sockets

  • Form Factor

    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    - 8 Layer PCB

  • OS

    - Microsoft® Windows® 10 64-bit / 11 64-bit

  • Certifications

    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
