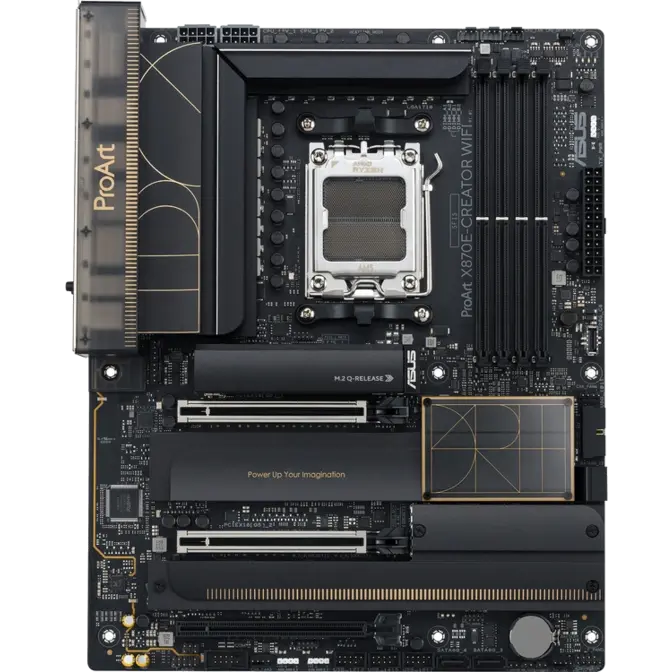

ASUS AM5 ATX PROART X870E-CREATOR WIFI Motherboard, *Eligible for a BONUS 1TB SSD via Redemption *Enter for your chance to win!
Web ID: 43250
CPU Socket: AMD AM5 7000 Series || 8000 Series || 9000 Series
Form Factor: ATX
Chipset: AMD X870E
Memory Type: DDR5
Connectivity: Bluetooth || LAN || Wireless-BE
PCIe Interface: 3 x PCIe x16 (2 x Gen5)
Storage Interface: 4 x M.2 PCIe (2 x Gen5) || 4 x SATA 6Gb/s
LAN Speed: 2.5 Gigabit || 10 Gigabit
Audio: 7.1 Channel
Video Interface: 1 x HDMI || 1 x DisplayPort (Input Only)
USB: 7 x USB 3.2 Type-A || 1 x USB 3.2 Type-C || 1 x USB 2.0 || 2 x USB 4.0 Type-C
Manufacturer Warranty: 3 Year
Manufacturer PN: ProArt X870E-CREATOR WIFI
Manufacturer Website
$999
*Purchase selected ASUS Z890 or X870 Motheboard + selected AIO Cooler & receive a FREE 1TB External SSD via redemption.
Valid for invoices between 22nd November 2024 – 24th January 2025 | Must be redeemed by: 5th February 2025
*Purchase any ASUS product in-store or online and follow the link to enter your invoice number for additional chances to win!
Valid for ASUS products invoiced between 20th November 2024 - 20 December
Click Here to enter the giveaway
|
Model
|
ProArt X870E-CREATOR WIFI
|
|
CPU
|
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
|
| * Refer to www.asus.com for CPU support list. | |
|
Chipset
|
AMD X870E
|
|
Memory
|
4 x DIMM slots, max. 192GB, DDR5
|
| Supports up to | |
| 8000+MT/s(OC) with Ryzen™ 9000 Series Processors, | |
| 8000+MT/s(OC) with Ryzen™ 8000 Series Processors, | |
| 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, | |
| ECC and Non-ECC Un-buffered DIMM | |
| Dual Channel Memory Architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO™) | |
| ASUS Enhanced Memory Profile (AEMP) | |
| * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. | |
|
Graphics
|
1 x HDMITM port**
|
| 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** | |
| * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. | |
| ** Supports 4K@60Hz as specified in HDMI 2.1. | |
| *** Supports max. 8K@60Hz as specified in DisplayPort 1.4. | |
| **** Output at USB4_EC1 and USB4_EC2, each requires a USB-C® to DisplayPort adapter cable. VGA resolution support depends on processors' or graphic cards' resolution. | |
|
Expansion Slots
|
AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
|
| 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes)** | |
| AMD X870E Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). | |
| ** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. | |
| - To ensure compatibility of the device installed, please refer to | |
| https://www.asus.com/support/ for the list of supported peripherals. | |
|
Storage
|
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
|
| AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** | |
| AMD X870E Chipset | |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| 4 x SATA 6Gb/s ports | |
| *AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen™ 9000series CPU. | |
| ** PCIEX16(G5)_2 slot shares bandwidth with M.2_2. | |
|
Ethernet
|
1 x Marvell® AQtion 10Gb Ethernet
|
| 1 x Intel® 2.5Gb Ethernet | |
| ASUS LANGuard | |
|
Wireless & Bluetooth
|
Wi-Fi 7*
|
| 2x2 Wi-Fi 7 (802.11be) | |
| Supports 2.4/5/6GHz frequency band** | |
| Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. | |
| Bluetooth® v5.4*** | |
| *Wi-Fi features may vary depending on the operating system | |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. | |
| For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. | |
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. | |
| *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. | |
|
USB
|
Rear USB (Total 11 ports)
|
| 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®) | |
| 1 x USB 20Gbps port(s) (1 x USB Type-C®) | |
| 7 x USB 10Gbps port(s) (7 x Type-A) | |
| 1 x USB 2.0 port (1 x Type-A) | |
| Front USB (Total 9 ports) | |
| 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)** | |
| 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports | |
| 3 x USB 2.0 headers support 6 additional USB 2.0 ports | |
| "* USB Type-C® power delivery output: max. 5V/3.0A" | |
| ** USB Type-C® power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A | |
|
Audio
|
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
|
| - Impedance sense for front and rear headphone outputs | |
| - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers | |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | |
| - Supports up to 32-Bit/192 kHz playback* | |
| Audio Features | |
| - Audio Shielding | |
| - Premium audio capacitors | |
| - Dedicated audio PCB layers | |
| - Unique de-pop circuit | |
| * Due to limitations in HDA bandwidth, | |
| 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. | |
| ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
|

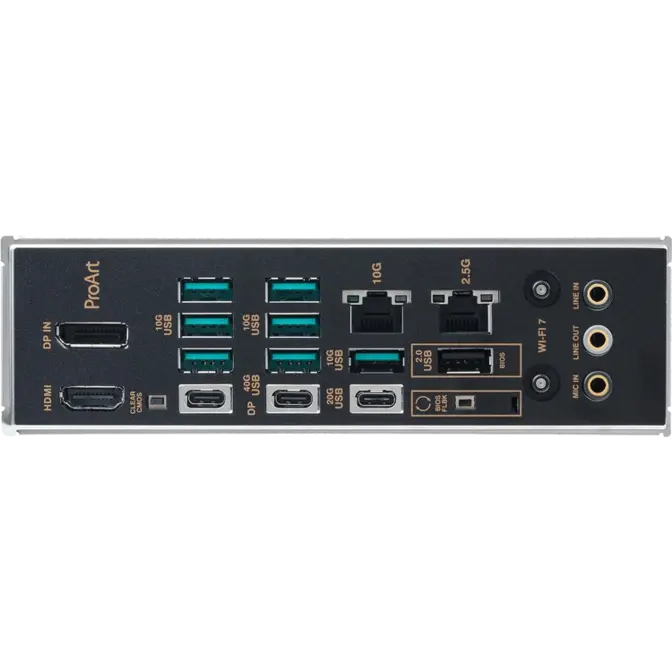

Back Panel I/O Ports
|
2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)
|
| 1 x USB 20Gbps port (1 x USB Type-C®) | |
| 7 x USB 10Gbps ports (7 x Type-A) | |
| 1 x USB 2.0 port (1 x Type-A) | |
| 1 x DisplayPort (Input only) | |
| 1 x HDMITM port | |
| 1 x Wi-Fi Module | |
| 1 x Marvell® AQtion 10Gb Ethernet | |
| 1 x Intel® 2.5Gb Ethernet | |
| 3 x Audio jacks | |
| 1 x BIOS FlashBack™ button | |
| 1 x Clear CMOS button | |
|
Internal I/O Connectors
|
Fan and Cooling related
|
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 5 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V CPU Power connector | |
| Storage related | |
| 4 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+) | |
| 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports | |
| 3 x USB 2.0 headers support 6 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x Chassis Intrusion header | |
| 1 x COM Port header | |
| 1 x CPU Over Voltage jumper | |
| 1 x Front Panel Audio header (F_AUDIO) | |
| 1 x 10-1 pin System Panel header | |
| 1 x Thermal Sensor header | |
|
Special Features
|
ASUS 5X PROTECTION III
|
| - DIGI+ VRM (- Digital power design) | |
| - Enhanced DRAM Overcurrent Protection | |
| - ESD Guards | |
| - LANGuard | |
| - Overvoltage Protection | |
| - Safeslot | |
| - Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - M.2 Q-Release | |
| - M.2 Q-Slide | |
| - PCIe Slot Q-Release Slim (with PCIe SafeSlot) | |
| - Q-Antenna | |
| - Q-Connector | |
| - Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - M.2 heatsink backplate | |
| - M.2 heatsinks | |
| - VRM heatsink design ASUS EZ DIY | |
| - BIOS FlashBack™ button | |
| - BIOS FlashBack™ LED | |
| - ProCool | |
| - Pre-mounted I/O shield | |
| - SafeSlot | |
| - SafeDIMM | |
| AURA Sync | |
| - Addressable Gen 2 headers | |
| Bespoke Motherboard Design & Business Focused Features | |
| - 24/7 Reliability | |
| - Overcurrent Protection | |
| Front Panel USB 20Gbps with Quick Charge 4+ Support | |
| - Support: up to 30W fast charging and USB Wattage Watcher | |
| - Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A | |
| - Compatible with PD3.0 | |
|
Software Features
|
ASUS Exclusive Software
|
| Armoury Crate | |
| - Aura Creator | |
| - Aura Sync | |
| - Fan Xpert 4 with AI Cooling II | |
| - Power Saving | |
| ASUS DriverHub | |
| ASUS GlideX | |
| USB Wattage Watcher | |
| TurboV Core | |
| ASUS CPU-Z | |
| ProArt Creator Hub | |
| CreationFirst | |
| Adobe Creative Cloud (Free Trial) | |
| Norton 360 Deluxe (60 Days Free Trial) | |
| WinRAR (40 Days Free Trial) | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| FlexKey | |
|
Remote Management Features
|
|
|
IT Management software supported
|
|
| - ASUS Control Center Express(ACCE) | |
|
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS
|
|
Manageability
|
|
|
WOL by PME, PXE
|
|
|
Accessories
|
|
|
Cables
|
|
| 1 x DisplayPort cable | |
| 4 x SATA 6Gb/s cables | |
| Additional Cooling Kit | |
| 1 x Thermal pad for M.2 22110 | |
| Miscellaneous | |
| 1 x ASUS WiFi Q-Antenna | |
| 1 x Q-connector | |
| 1 x M.2 Q-Latch package | |
| 1 x M.2 Q-Latch Q-Slide package for M.2 backplate | |
| 2 x Rubber Packages for M.2 | |
| 1 x ProArt ruler | |
| Documentation | |
| 1 x Quick start guide | |
| 1 x ACC Express Activation Key Card | |
|
Operating System
|
Windows® 11
|
|
Form Factor
|
ATX Form Factor
|
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
