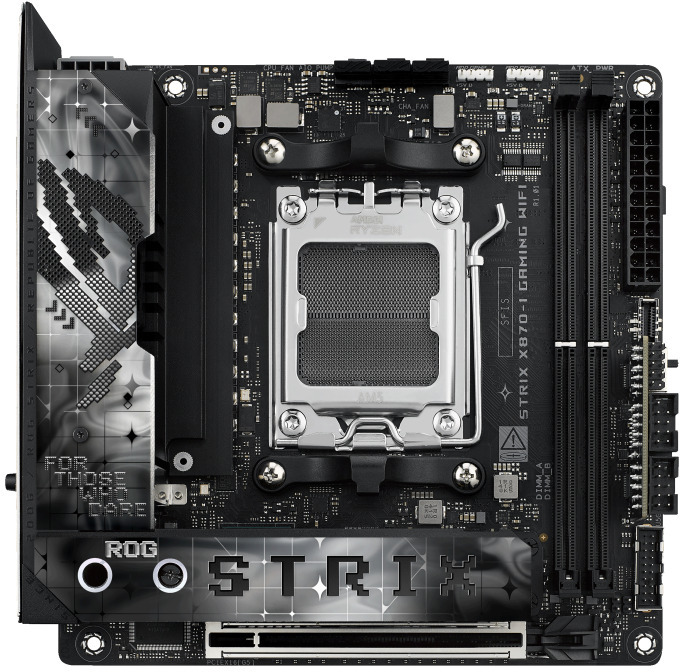

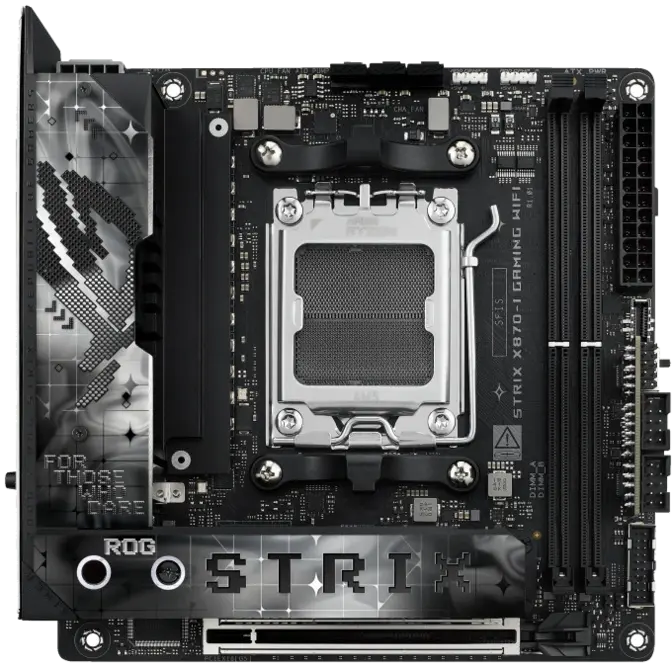

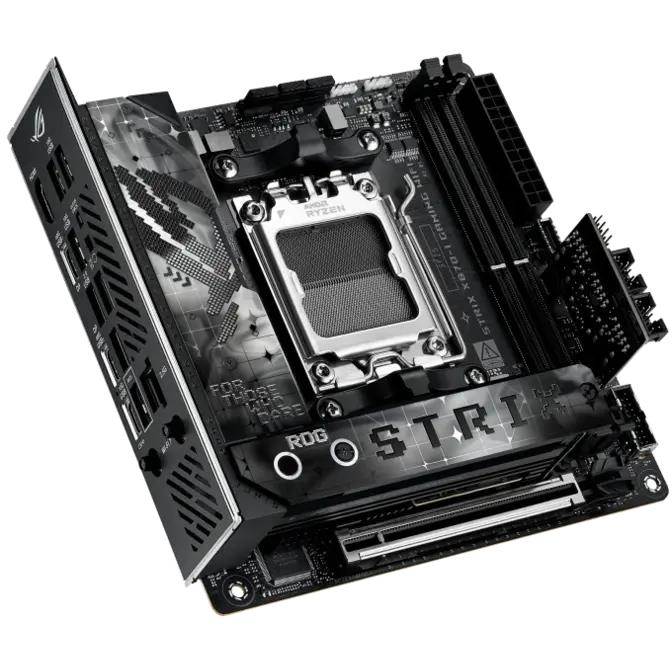

ASUS AM5 Mini-ITX ROG STRIX X870-I GAMING WIFI DDR5 Motherboard
Web ID: 43249
CPU Socket: AMD AM5 7000 Series || 8000 Series || 9000 Series
Form Factor: Mini-ITX
Chipset: AMD X870
Memory Type: DDR5
Connectivity: Bluetooth || LAN || Wireless-BE
PCIe Interface: 1 x PCIe x16
Storage Interface: 2 x M.2 PCIe || 2 x SATA 6Gb/s
LAN Speed: 2.5 Gigabit
Audio: 7.1 Channel
Video Interface: 1 x HDMI
USB: 4 x USB 3.2 Type-A || 1 x USB 3.2 Type-C || 3 x USB 2.0 || 2 x USB 4.0 Type-C
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: ROG STRIX X870-I GAMING WIFI
Manufacturer Website
$899
|
CPU
|
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
|
| * Refer to https://www.asus.com/support/download-center/ for CPU support list. | |
|
Chipset
|
AMD X870
|
|
Memory
|
2 x DIMM slots, max. 96GB, DDR5
|
| Supports up to | |
| 8400+MT/s(OC) with Ryzen™ 9000 Series Processors, | |
| 8600+MT/s(OC) with Ryzen™ 8000 Series Processors, | |
| 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, | |
| ECC and Non-ECC Un-buffered DIMM*" | |
| Dual channel memory architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO™) | |
| ASUS Enhanced Memory Profile (AEMP) | |
| * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory | |
| configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. | |
| * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | |
|
Graphics
|
1 x HDMI™ port**
|
| 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** | |
| * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. | |
| ** Supports 4K@60Hz as specified in HDMI 2.1. | |
| *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a | |
| **** VGA resolution support depends on processors' or graphic cards' resolution. | |
|
Expansion Slots
|
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
|
| 1 x PCIe 5.0 x16 slot | |
| AMD Ryzen™ 8000 Series Desktop Processors | |
| 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)* | |
| * Specifications vary by CPU types. | |
| - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. | |
|
Storage
|
Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
|
| AMD Ryzen™ 9000 & 7000 Series Desktop Processors* | |
| M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode) | |
| AMD Ryzen™ 8000 Series Desktop Processors* | |
| M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode) | |
| AMD X870 Chipset | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) | |
| 2 x SATA 6Gb/s ports*** | |
| * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1 | |
| *** Install ROG FPS Card to support 2 x SATA 6Gb/s ports. | |
|
Ethernet
|
1 x Intel® 2.5Gb Ethernet
|
| ASUS LANGuard | |
|
Wireless & Bluetooth
|
Wi-Fi 7*
|
| 2x2 Wi-Fi 7 (802.11be) | |
| Supports 2.4/5/6GHz frequency band** | |
| Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate. | |
| Bluetooth® v5.4*** | |
| *Wi-Fi features may vary depending on the operating system | |
| For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. | |
| For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. | |
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. | |
| *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications." | |
|
USB
|
Rear USB (Total 10 ports)
|
| 2 x USB4® (40Gbps) port(s)(2 x USB Type-C®) | |
| 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®) | |
| 3 x USB 2.0 port(s) (3 x Type-A) | |
| Front USB (Total 3 ports) | |
| 1 x USB 10Gbps connector (supports USB Type-C®) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| * USB Type-C® power delivery output: max. 5V/3A | |
| ROG STRIX HIVE II(Total 2 ports) | |
| 2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®) | |
| ROG FPS Card (Total 3 ports) | |
| 2 x USB 2.0 headers additional 3 USB 2.0 ports | |
|
Audio
|
ROG Strix Hive II Audio Features
|
| - ROG Hyper-Grounding Technology | |
| - ESS® SABRE9260Q DAC | |
| - Silver-plated audio jacks | |
| - Dedicated audio PCB layers | |
|
Back Panel I/O Ports
|
2 x USB4® (40Gbps)(2 x USB Type-C®)
|
| 5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®, 1 port supports ROG STRIX HIVE II) | |
| 3 x USB 2.0 port(s) (2 x Type-A) | |
| 1 x HDMI™ port | |
| 1 x Wi-Fi module | |
| 1 x Intel® 2.5Gb Ethernet port | |
| 1 x BIOS FlashBack™ button | |
| 1 x Clear CMOS button | |
|
Internal I/O Connectors
|
Fan and Cooling Related
|
| 1 x 4-pin CPU Fan header(s) | |
| 1 x 4-pin AIO Pump header(s) | |
| 1 x 4-pin Chassis Fan header(s) | |
| Power Related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V CPU Power connector | |
| Storage Related | |
| 2 x M.2 slots (Key M) | |
| USB | |
| 1 x USB 10Gbps connector (supports USB Type-C® ) | |
| 1 x USB 5Gbps header support(s) 2 | |
| additional USB 5Gbps ports | |
| Miscellaneous | |
| 2 x Addressable Gen 2 headers | |
| 1 x 2-pin Power Button header | |
| 1 x Thermal Sensor header | |
| 2 x USB Type-C® connectors to install ROG FPS card | |
| ROG FPS card | |
| 2 x SATA 6Gb/s ports | |
| 1 x CPU Over Voltage jumper | |
| 1 x Front Panel header | |
| 1 x Alteration PCIe Mode switch | |
| 2 x USB 2.0 headers support 3 | |
| additional USB 2.0 ports | |
|
Special Features
|
ASUS Q-Design
|
| - M.2 Q-Latch | |
| - PCIe Slot Q-Release Slim (with PCIe SafeSlot) | |
| - Q-Antenna | |
| - Q-Code | |
| - Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - M.2 heatsink | |
| - Aluminum backplate | |
| ASUS EZ DIY | |
| - BIOS FlashBack™ button | |
| - BIOS FlashBack™ LED | |
| - Clear CMOS button | |
| - ProCool II | |
| - Pre-mounted I/O shield | |
| - SafeSlot | |
| - SafeDIMM | |
| Aura Sync | |
| - Addressable Gen 2 header(s) | |
| ROG STRIX HIVE II | |
| 1 x USB Type-C® connects to motherboard | |
| 2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®) | |
| 1 x Headphone jack with mic in | |
| 1 x Power button | |
| 1 x FlexKey button | |
| 1 x Volume control knob with mute button Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
|
Software Features
|
ROG Exclusive Software
|
| - ROG CPU-Z | |
| - Dolby Atmos | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| - AIDA64 (60 days free trial) | |
| - Aura Creator | |
| - Aura Sync | |
| - Fan Xpert 4 (with AI Cooling II) | |
| - GameFirst | |
| - HWiNFO | |
| - Power Saving | |
| ASUS Driver Hub | |
| ASUS GlideX | |
| Adobe Creative Cloud (Free Trial) | |
| Norton 360 for Gamers (60 Days Free Trial) | |
| WinRAR (40 Days Free Trial) | |
| UEFI BIOS | |
| AI Overclocking Guide | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI | |
| BIOS EZ Mode | |
| - ASUS | |
| MyHotkey | |
| FlexKey | |
| Dynamic OC Switcher | |
|
BIOS
|
256 Mb Flash ROM, UEFI AMI BIOS
|
|
Manageability
|
WOL by PME, PXE
|
|
Accessories
|
Cables
|
| 1 x Panel cable | |
| 1 x ROG USB2.0 splitter cable | |
| 2 x SATA 6Gb/s cables | |
| ROG FPS Card | |
| 1 x ROG FPS Card | |
| ROG STRIX HIVE II | |
| 1 x ROG STRIX HIVE II | |
| 1 x USB Type-C® power connection cable | |
| Miscellaneous | |
| 1 x ASUS WiFi Q-Antenna | |
| 1 x Cable ties package | |
| 1 x M.2 Q-Latch package(s) | |
| 1 x ROG key chain | |
| 1 x ROG Strix stickers | |
| 1 x M.2 rubber package(s) | |
| Documentation | |
| 1 x Quick start guide | |
|
Operating System
|
Windows® 11 64-bit
|
|
Form Factor
|
Mini-ITX Form Factor
|
| 6.7 inch x 6.7 inch (17 cm x 17 cm) |
