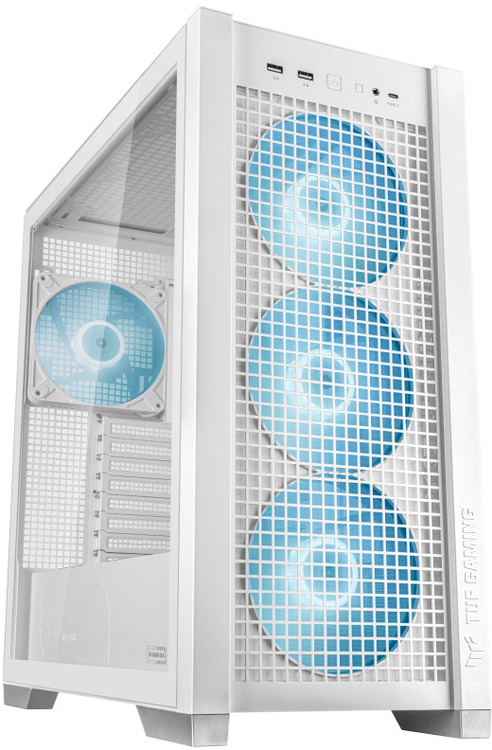

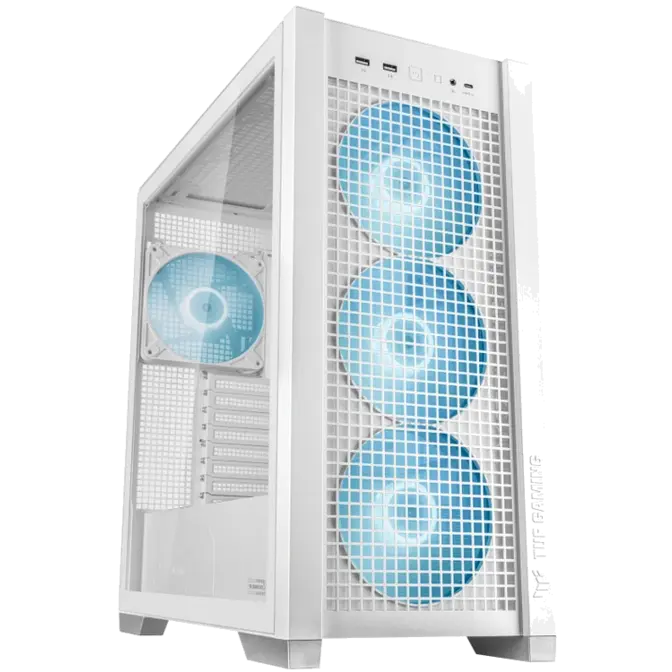

ASUS E-ATX TUF Gaming GT302 ARGB White Case
Web ID: 39580
Case Type: ATX Case
Form Factor: ATX (PSU) || Mini-ITX || Micro-ATX || ATX || E-ATX
Colour: White
Cooler Clearance: 165mm (Cooler Clearance)
GPU Max Length: 405mm Max GPU Length
Radiator Size: 120mm Radiator || 140mm Radiator || 240mm Radiator || 280mm Radiator || 360mm Radiator
Interface: 2.5" Drive Bay || 3.5" Drive Bay
USB: USB 3.2 Type-A || USB 3.2 Type-C
Manufacturer Warranty: 2 Year
Manufacturer PN: TUF Gaming GT302 ARGB WH
GTIN: 197105478763
Manufacturer Website
TUF Gaming GT302 ARGB
Cool Confidence
MAXIMIZED NATIVE COOLING
Square-type mesh front panel
TUF Gaming GT302 ARGB features an optimized square-type mesh front panel, ensuring unobstructed airflow and great porosity engineered to maximize airflow efficiency.
FOUR 140 X 28 MM ARGB FANS INCLUDED
Pre-installed 140 x 28 mm ARGB fans (AR140) with extra-thick design yield very high airflow while remaining exceptionally quiet and aesthetically pleasing.

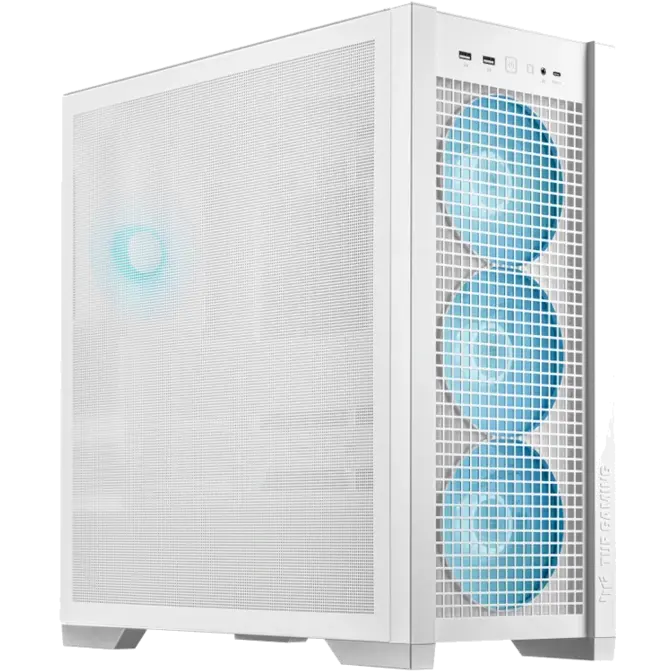

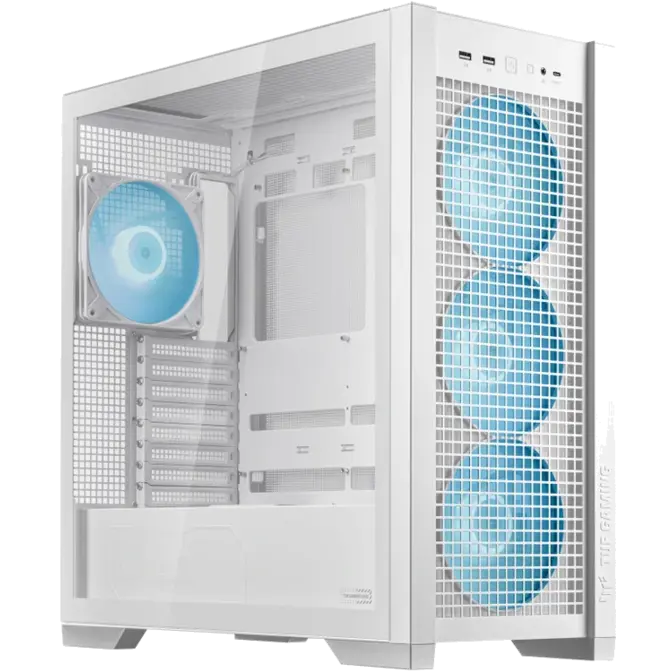

INTERCHANGEABLE SIDE PANELS
Choose between tempered glass for better system demonstration or a mesh panel for increased ventilation, with either choice providing quick tool-free access.

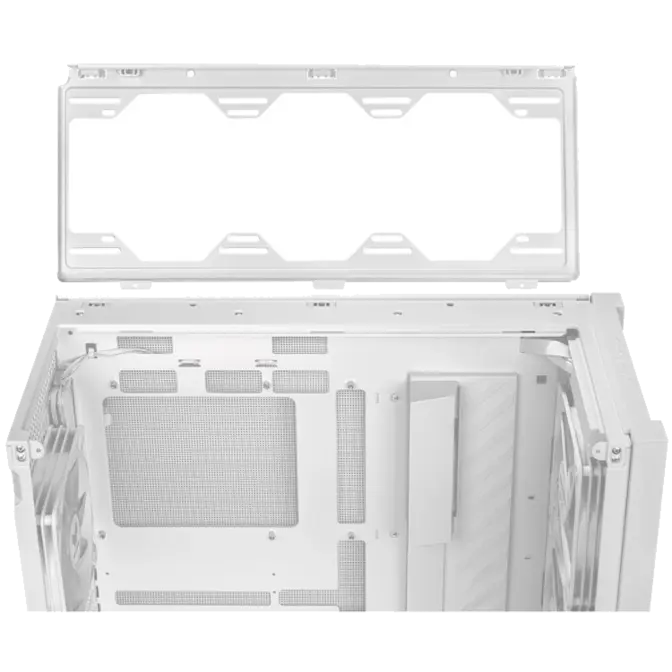

DETACHABLE TOP PANEL
The removable top panel makes cable routing and the installation of fans or a radiator easier than ever.

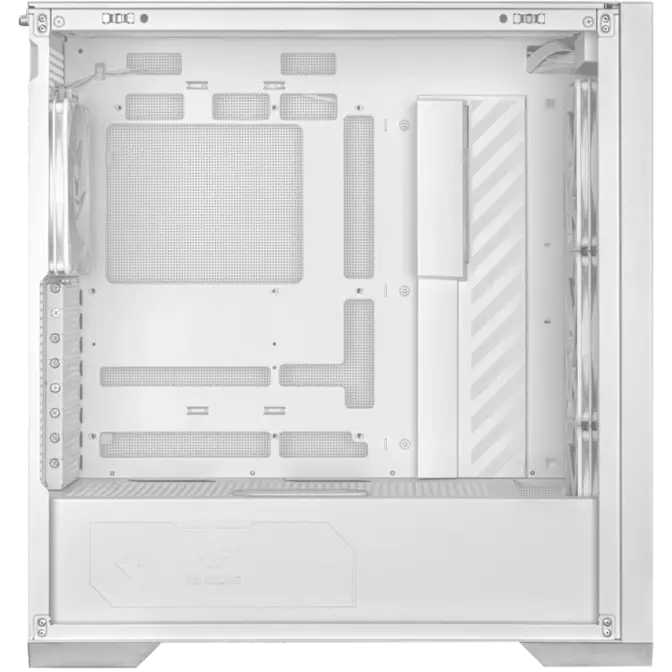

SPACE FOR POWERFUL COMPONENTS
The beefiest motherboards and graphics cards can fit, despite the compact dimensions. It also supports ASUS hidden-connector motherboards.
TUF Gaming GT302 ARGB supports ASUS hidden connector motherboards, including TUF Gaming Z790-BTF WIFI, whose connecters and headers are located on the underside to maximize clean cable management.
Click here to explore our BTF ecosystem lineup
STORAGE CAPACITY
Fits up to 4 x 2.5-inch SSDs and 2 x 3.5-inch HDDs with improved bracket design.

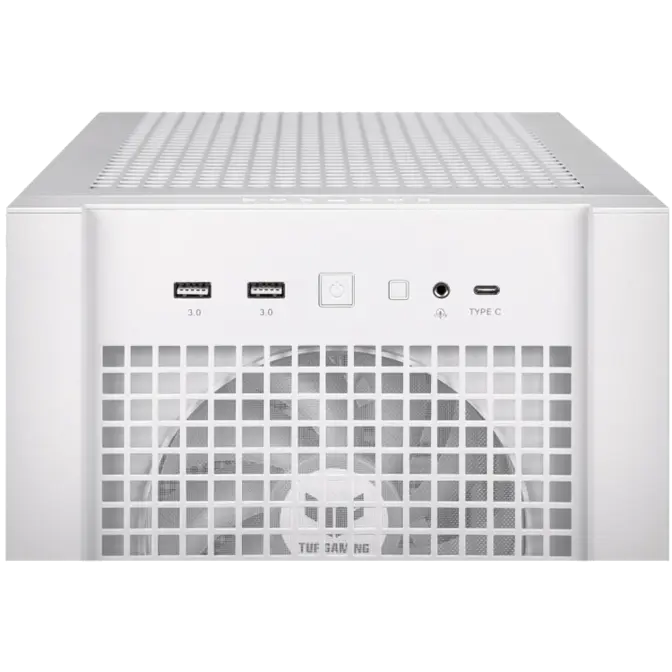

FRONT PANEL HIGH-SPEEDUSB TYPE-C®
In addition to two USB-A ports, the TUF Gaming GT302 ARGB front panel features a USB Type-C® port ready to transfer at up to 20 Gbps*.
*Actual speed varies by motherboard.
EASY PC BUILD EXPERIENCE

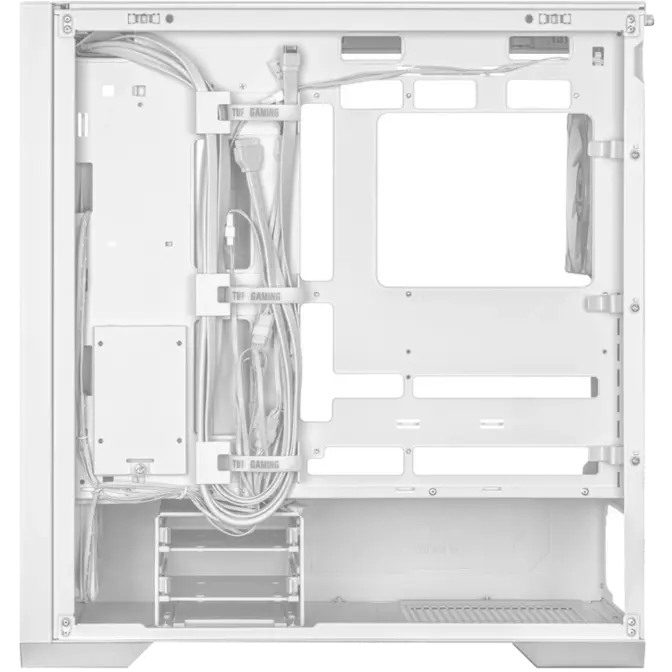

OPTIMIZED CABLE MANAGEMENT
The TUF Gaming GT302 ARGB comes with a cable grommet bar featuring three large straps to let you neatly organize two sets of cables, and three cable clips on the side for tidy routing of the 8-pin CPU power cable.
Model
TUF Gaming GT302 ARGB
Case Size
Mid Tower
Motherboard Support
EATX (12"x10.9")
ATX
Micro-ATX
Mini-ITX
Drive Bays
2 x 2.5" Bay
2 x 2.5"/3.5" Combo Bay
Expansion Slots
8
3 (additional vertical)
Front I/O Port
1 x headphone / Microphone
2 x USB 3.2 Gen1
1 x UBS 3.2 Gen 2x2 Type C
Tempered Glass
Left Side
Radiator Support (Front)
140 mm
280 mm
Radiator Support (Top)
120 mm
140 mm
240 mm
280 mm
360 mm
Radiator Support (Rear)
120 mm
140 mm
Cooling Support (Front)
3 x 140 mm
Cooling Support (Top)
3 x 120 mm
3 x 140 mm
Cooling Support (Rear)
1 x 120 mm
1 x 140 mm
Pre-installed Fans (Front)
3 x 140 mm
PWM
ARGB
Pre-installed Fans (Rear)
1 x 140 mm
ARGB
PWM
Maximum CPU Cooler Height
165 mm
Maximum GPU Length
407 mm
Maximum PSU Length
220 mm
Removable Dust Filters
Front
Top
Bottom
Maximum Cable Management Space
37 mm
Dimensions
235*520*485 mm (W*H*D)
