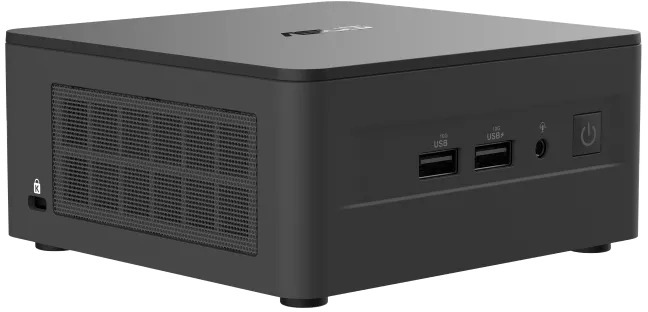

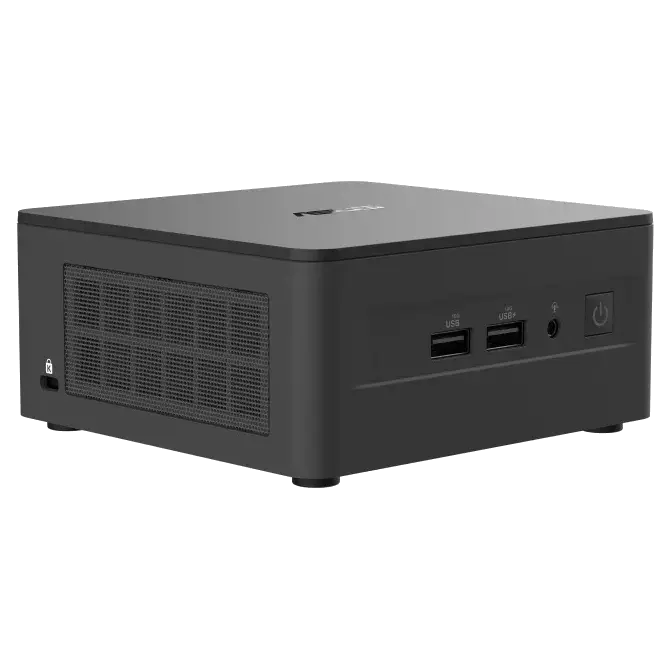

Asus RNUC13ANHI700000I NUC 13 Pro i7 Mini PC Barebone
Web ID: 40084
Barebone Chassis Requires: RAM, SSD, Windows.
CPU: Intel 13th Generation || Core i7-1360P || 12 Core || Up to 5.0Ghz || 18MB CacheMemory Type: SODIMM DDR4
Graphics Processing Type: Integrated Graphics
Storage Interface: M.2 PCIe || SATA 6Gb/s
Video Interface: 2 x Thunderbolt 4 || 2 x HDMI
LAN Speed: 2.5 Gigabit
WiFi Standard: Wireless-AX
, BONUS 0.5m ALOGIC Aus 3 Pin Clover Wall to IEC C5 Male to Female PN MF-AUS3PC5-0.5 ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: RNUC13ANHI700000I
GTIN: 197105503199
Manufacturer Website
$989
| Operating System
|
Without OS
|
|
CPU
|
Intel® Core™ i7-1360P Processor (TDP28W) |
|
Chipset
|
Integrated |
| Graphics | Intel® Iris® Xe Graphics |
| Memory | Support 2 x SO-DIMM DDR4 2400/2666/3200 MHz |
| Support 8 GB and 16 GB technology up to 64 GB | |
| Storage | 1 M.2 PCIe Gen4 M.2 22x80 (key type M) NVMe only |
| 1 M.2 M.2 22x42 (key type B) SATA SSD, PCIe x1 or | |
| USB 3.2 expandability | |
|
Wireless Data Network
|
Pre-Installed Intel® Wi-Fi 6E AX211, 2x2, and Bluetooth® v5.3
|
|
LAN
|
2.5G Ethernet, 10/100/1000/2500 Mbps via Intel® i226 Foxville Gigabit Ethernet |
| Audio | Realtek audio via 3.5mm stereo headset jack |
|
Front(Side) I/O Ports
|
2 x USB 3.2 Gen2 Type A (1x Front Panel, 1x Front Panel Charging) *Side I/O: 1 x Kensington Lock (Left side of Chassis) + Cable Locking Arm |
| 2 x USB 3.2 Gen2 Type A (1x Front Panel, 1x Front Panel Charging) *Side I/O: 1 x Kensington Lock (Left side of Chassis) + Cable Locking Arm | |
|
Back I/O Ports
|
2 x Thunderbolt 4 Type-C Ports |
| 1 x USB 3.2 Gen 2 Type-A | |
| 2 x HDMI 2.1 (TMDS) ports | |
| 1 x RJ45 LAN Port | |
| 1 x DC-in" | |
| 2 x Thunderbolt 4 Type-C Ports | |
| 1 x USB 3.2 Gen 2 Type-A | |
| 2 x HDMI 2.1 (TMDS) ports | |
| 1 x RJ45 LAN Port | |
| 1 x DC-in | |
|
Power Supply
|
120W Power Adapter (U5/U7)
|
|
Dimensions (W x D x H)
|
117mm x 112mm x 54mm
|
|
Weight
|
"H" 0.75 kg(barebone) / "K" 0.51 kg (barebone) |
| Color | Black |
| With ASUS NUC logo | |
|
Accessories
|
AC Adapter+Power Cord |
| Warranty Card | |
| Quick Start Guide | |
| VESA Mount | |
| Keyboard+Mouse (Optional) | |
| Ship with VESA mount and screws |
