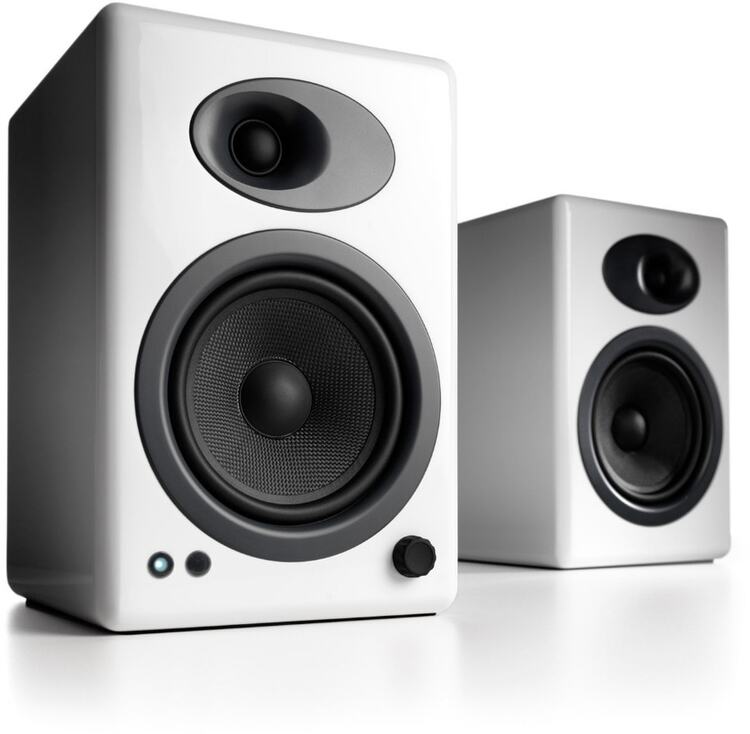

Audioengine 5+ Classic Powered Wired Speakers White
Web ID: 32702
The A5+ Powered Speakers are bookshelf speakers with sound that can fill any room. No network setup, passwords to enter, or buttons to push.
Manufacturer Warranty: 3 Year
Manufacturer PN: 90021910
GTIN: 819955230024
Manufacturer Website
HEAR THE DIFFERENCE
YOUR MUSIC WILL SOUND BETTER, GUARANTEED.
You won’t hear any enhanced super-mega-hyper-monster boomy bass from these powered speakers. The low end from the A5+ Powered Speakers is real bass, very near to the originally-recorded music. From rap to classical to movies, you’ll get tight, punchy bass with an awesome growl that will make you smile – regardless of the volume level.
Even if you’re not an audio enthusiast we guarantee your music will sound better!
WHY YOU'LL LOVE THEM
BENEFITS
Desktop or stands
5” woofers
Analog inputs
Connect a subwoofer
Remote control
SET UP IN SECONDS
SIMPLE. NO HASSLE. EASY TO USE.
The A5+ Powered Speakers are bookshelf speakers that pack a big sound, filling any room. No network setup, passwords to enter, or buttons to push. Setting them up is so easy you’ll be rocking in no time.
Connect your phone, computer, TV, turntable or any other audio gear for great stereo sound in any room.
Keep your music fun, easy, and sounding great.
SMALL SPEAKERS BIG SOUND
FILLS ANY ROOM
Clear, full and powerful audio that fills any room. The A5+ Powered Speakers are constructed with custom Audioengine components: aramid fiber woofers, silk tweeters, and built-in power amps wrapped in precision-tuned and hand-crafted cabinets.
Smart speakers that are perfect for any sized space.
GO OLD SCHOOL
ANALOG, BABY!
Audioengine speakers are special. Their traditional analog amplifiers sound incredible compared to lower-cost digital amps found in other mass-produced brands.
A whole new music experience, guaranteed.
-
Type
Powered speaker systemAmplifier Type
Class ABPower Output
150 W peak power total (50 W RMS / 75 W peak per channel), AESDrivers
5″ aramid fiber woofers0.75″ silk dome tweeters
Inputs
3.5 mm stereo mini-jack, RCA L/ROutputs
RCA variable line-out, USB (power/charge)Input Voltages
115/240 V, 50/60 Hz manually switchableSNR
>95 dB (typical A-weighted)THD+N
<0.05% at all power settingsCrosstalk
<50 dBFrequency Response
50 Hz-22 kHz ±1.5 dBInput Impedence
10K ohms unbalancedProtection
Output current limiting, thermal over-temperature, power on/off transient protection, replaceable external main fusePower Consumption
Idle: 10 W
Mute: 6 W
Sleep: 4 W -
USB SPECIFICATIONS
Connector Type
Standard USBUSB Device Class
USB 1.1 or above -
WEIGHTS AND MEASURES
Dimensions (HWD)
Left (active) – 10.75″ (27 cm) x 7″ (18 cm) x 9″ (23 cm)
Right (passive) – 10.75″ (27 cm) x 7″ (18 cm) x 7.75″ (20 cm)Weight
Left (active) – 15.4 lb (7 kg)
Right (passive) – 9.6 lb (4.4 kg)Total Shipping Weight
31 lb (14 kg)Shipping Box Dimensions (LWH)
22″ (56 cm) x 11.5″ (29 cm) x 15″ (38 cm) -
ENVIRONMENTAL REQUIREMENTS
Operating temperature: 32 degrees F to 95 degrees F
Non-operating temperature: -4 degrees F to 113 degrees F
Relative humidity: 5 – 95% non-condensing -
MATERIALS AND CONSTRUCTION
0.5″ (13 mm) thick MDF cabinets
5″ (130 mm) aramid fiber woofers with advanced voice coils
0.75″ (20 mm) silk dome tweeters with neodymium magnets
Toroidal power transformer -
CABINETS
To minimize unwanted resonances and distortion, Audioengine cabinets have thick high-resin MDF walls with extensive internal bracing. Heavy internal sound-damping material is used to reduce unwanted sound reflections inside the cabinet. All cabinet edges are rounded which look great and reduce high-frequency diffraction effects on the front baffles. The A5+ cabinet contains tuned, rear-port slots.
-
FURNITURE GRADE FINISHES
The A5+ cabinets are available in several handsome finishes, including bamboo veneers as well as satin black and high-gloss white paint, offering a wide choice for complementing room furnishings.
-
CUSTOM COMPONENTS
Audioengine designs and manufactures our own tweeters, woofers, and other critical components. In other words, these are not “box built” speakers with off-the-shelf parts but custom-designed to our specifications. What we do not fabricate directly in our factory we have made to our designs (parts such as transformers, magnets, and wiring harnesses, for example). The cabinets, drivers, bass port designs, amplifiers, and crossovers are all painstakingly tuned together for each Audioengine model. This, in turn, makes for a much more efficient system that requires much less power than passive speakers and a separate integrated amplifier or similar A/V components.
-
BASED ON STUDIO MONITOR DESIGNS
Studio monitor speakers are used by producers and engineers in recording and production studios. They are designed with a theoretical flat frequency response which allows the engineer to create a final mix in such a way that the recorded music will sound good on most other speakers. Although Audioengine speakers are not designed to be up-close “nearfield” studio monitors, we do carry over much of the same higher-end technology, components, and design philosophy for all Audioengine speaker systems.
-
EFFICIENT INTEGRATED DESIGN
The speaker cabinets, drivers, innovative bass port designs, amplifiers, and passive crossovers are all critically tuned together for each Audioengine model. This, in turn, makes for a much more efficient system that requires less power than passive speakers and a separate integrated amplifier or similar A/V components. We build all this goodness into the left speaker cabinet to make it super-easy to connect your smartphone, tablet, computer, TV, network player or any other audio product.
-
USB POWER
The Audioengine A5+ includes a 5V, 500mA USB power supply for charging portable devices, while listening to your music. The USB connector allows you to charge and power your Smartphone, Tablet, Audioengine wireless adapters or any other USB powered product. USB is for power only, not USB audio or data transfer.
-
AMPLIFIER DESIGN
The amplifiers in powered Audioengine speakers are located in the left speaker and are a conservatively-rated class A/B analog monoblock design. This is a more traditional speaker/amplifier marriage which provides excellent quality audio and greater flexibility. All circuit boards for the power and preamp sections are vertically mounted for maximum mechanical shock protection.
-
DRIVER DESIGNS
Audioengine uses audiophile-quality, ferrofluid-cooled silk dome tweeters with neodymium magnets. Silk tweeters hold up well under high power and the edge-driven design gives very smooth response. The woofers are aramid fiber woven glass composite with rubber surrounds. Aramid fiber is obviously very strong, which means that the woofer retains its shape when being driven at high levels. The speaker materials and construction are robust enough to stand up to some serious thrashing, so speaker grills are not needed and they will sound and look great after many years of use.
-
POWER TRANSFORMERS
Power transformers are a large contributor to the overall audio performance, especially in the low end. Again, no off-the-shelf parts. Audioengine uses gapless core toroidal transformers which have a tighter radiated magnetic field, directly translating to lower noise. They are lighter than standard, lower-cost transformers and also generate less heat.
-
SHIELDING
Both drivers are directly video shielded and allow the user to place the speakers within a few inches of a video monitor. This shielding also offers protection for hard-drive digital music players.
