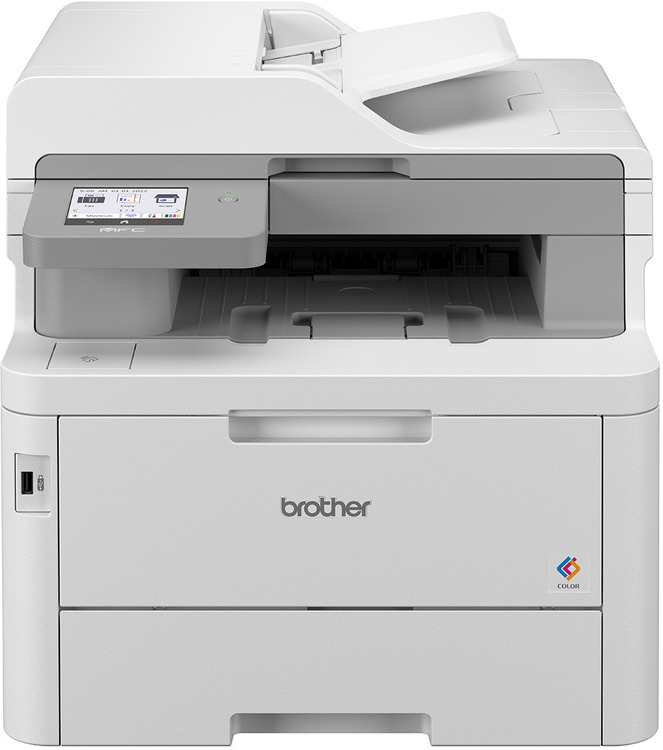

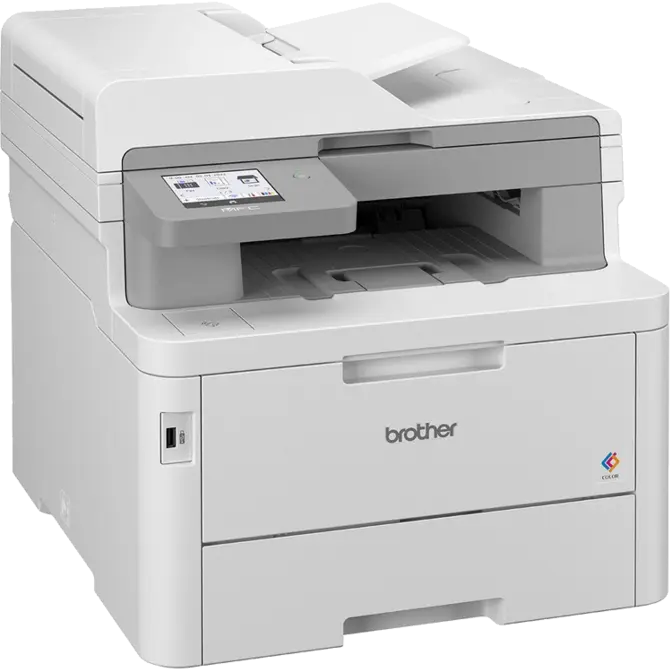

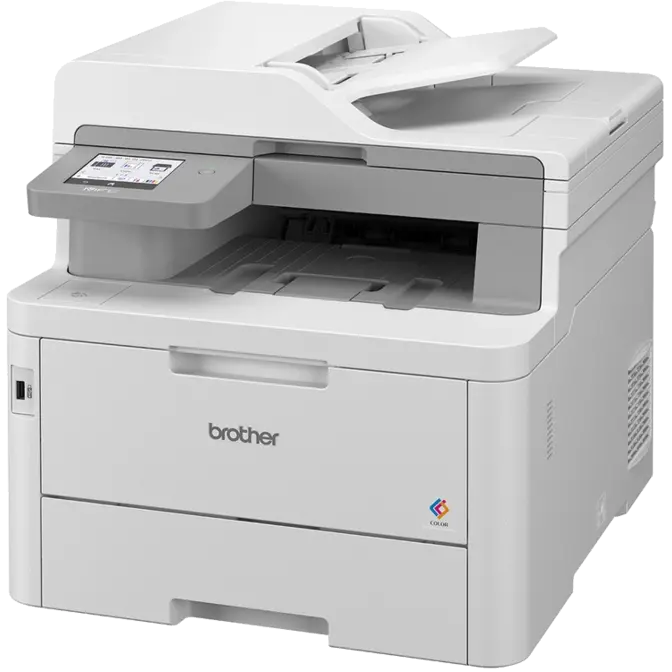

Brother MFC-L8390CDW Professional Duplex Colour Wireless Laser Multifunction Printer

Basic Specs

FUNCTIONS

Print,Scan,Copy,Fax

PRINTER TYPE

Laser Printer

PRINT SPEED

Up to 30 (Mono) / Up to 30 (Colour) ppm (A4)
Up to 31 (Mono) / Up to 31 (Colour) ppm (Letter)

PAPER TYPE

Plain Paper, Thin Paper, Thick Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick, Glossy Paper

PAPER SIZE

A4, Letter, B5 (JIS) ,B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Folio, Mexico Legal, India Legal, 16K (195x270mm), A4 Short (270mm Paper), COM-10, DL, C5, Monarch

MAXIMUM PAPER CAPACITY

Up to 530 sheets of 80 gsm plain paper (with Added Optional Trays)

WARRANTY

1 year Return to Base Warranty

Print

RESOLUTION

600 x 600 dpi, 2,400 dpi class (600 x 2400) quality

2-SIDED - PAPER TYPE

Plain Paper, Thin Paper, Recycled Paper

2-SIDED - PAPER SIZE

A4

Print Media

PAPER INPUT - PAPER TRAY #1 - PORTRAIT

A4, Letter, B5 (JIS) ,B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, Legal, Folio, Mexico Legal, India Legal, 16K (195x270mm), A4 Short (270mm Paper)

PAPER INPUT - PAPER TRAY #1 - MAXIMUM PAPER CAPACITY

Up to 250 sheets of 80 gsm plain paper

PAPER INPUT - PAPER TRAY #2 (OPTIONAL) - PORTRAIT

A4, Letter, B5 (JIS), A5, Executive, Legal, Folio, Mexico Legal, India Legal, 16K (195x270mm), A4 Short (270mm Paper)

PAPER INPUT - PAPER TRAY #2 (OPTIONAL) - MAXIMUM PAPER CAPACITY

Up to 250 sheets of 80 gsm plain paper

PAPER INPUT - MULTI-PURPOSE TRAY - PORTRAIT

Width: 76.2 to 216 mm (3.0" to 8.5")
Length: 116 to 355.6 mm (4.57" to 14")
Envelope: COM-10, DL, C5, Monarch

PAPER INPUT - MULTI-PURPOSE TRAY - MAXIMUM PAPER CAPACITY

Up to 30 sheets of 80 gsm plain paper

PAPER OUTPUT

Up to 150 sheets of 80 gsm plain paper (face-down delivery to the face-down output paper tray)
1 sheet (face up delivery to the face up output tray)

Document Sizes

ADF (PAPER HANDLING) 1

Width 105 mm to 215.9 mm, Length 147.3 mm to 355.6 mm

SCANNER MAXIMUM DOCUMENT SIZE 1

Up to 215.9 mm (Width), Up to 300 mm (Length)

Copy

COLOUR

Yes

MONOCHROME

Yes

COPY WIDTH

A4 (ADF/FB): Up to 204 mm
Letter (ADF/FB): Up to 210 mm

ENLARGE/REDUCE

25 to 400% (in increments of 1%)

RESOLUTION

Up to 600 x 600 dpi

Connectivity

Hi-Speed USB 2.0
Ethernet 10Base-T/100Base-TX/1000Base-T
Wireless LAN IEEE 802.11a/b/g/n (Infrastructure), IEEE 802.11a/g/n (Wi-Fi Direct)

Scan

COLOUR SCANNING

Yes

MONOCHROME

Yes

COLOUR DEPTH - INPUT

48 bit Colour Processing

COLOUR DEPTH - OUTPUT

24 bit Colour Processing

GREYSCALE - INPUT

16 bit Colour Processing

GREYSCALE - OUTPUT

8 bit Colour Processing

RESOLUTION - INTERPOLATED

Up to 19200 x 19200 dpi (interpolated) (Windows Only)

RESOLUTION - SCANNER GLASS

Up to 1200 x 1200 dpi

RESOLUTION - ADF

Up to 600 x 600 dpi

SCANNING WIDTH - SCANNER GLASS

Up to 204/210 mm (A4/Letter)

Fax

COMPATIBILITY

ITU-T Super G3

MODEM SPEED

33.6 Kbps

SCANNING WIDTH (SINGLE-SIDED DOCUMENT)

A4 (ADF/FB): Up to 208/204 mm
Letter (ADF/FB): Up to 208 mm

PRINTING WIDTH

Up to 208 mm

GREYSCALE - MONO

8 bit

RESOLUTION (HORIZONTAL)

203 dpi

RESOLUTION (VERTICAL) - STANDARD - MONO

98 dpi

RESOLUTION (VERTICAL) - FINE - MONO

196 dpi

RESOLUTION (VERTICAL) - SUPERFINE - MONO

392 dpi

ADDRESS BOOK

300 Locations

GROUPS

Up to 20 groups

BROADCASTING

350 Locations

AUTOMATIC REDIAL

3 times at 5 minute intervals

MEMORY TRANSMISSION

Up to 500 pages (ITU-T Test Chart #1, Standard Resolution, JBIG)

OUT OF PAPER RECEPTION

Up to 500 pages (ITU-T Test Chart #1, Standard Resolution, JBIG)

PC FAX - SENDING

Yes

PC FAX - RECEIVING

Yes

Display & Memory

DISPLAY

8.76cm (3.5") Colour Touchscreen LCD

MEMORY CAPACITY

512 MB

Operation

POWER SOURCE

220 - 240 V AC 50/60 Hz

POWER CONSUMPTION - COPYING

Approximately 620 W

POWER CONSUMPTION - READY

Approximately 70 W

POWER CONSUMPTION - SLEEP

Approximately 10 W

POWER CONSUMPTION - POWER OFF

Approximately 0.04 W

NOISE LEVEL

43 dB(A)

TEMPERATURE - OPERATING

10 ? to 32.5 ?

PictBridge Specifications

INTERFACE

USB Direct Interface

Network

WIRELESS NETWORK SECURITY

WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES)
*Wi-Fi Direct supports WPA2-PSK (AES) only.

Supported OS

Windows® Server 2012, Server 2012 R2, 10, Server 2016, Server 2019, Server 2022, 11
