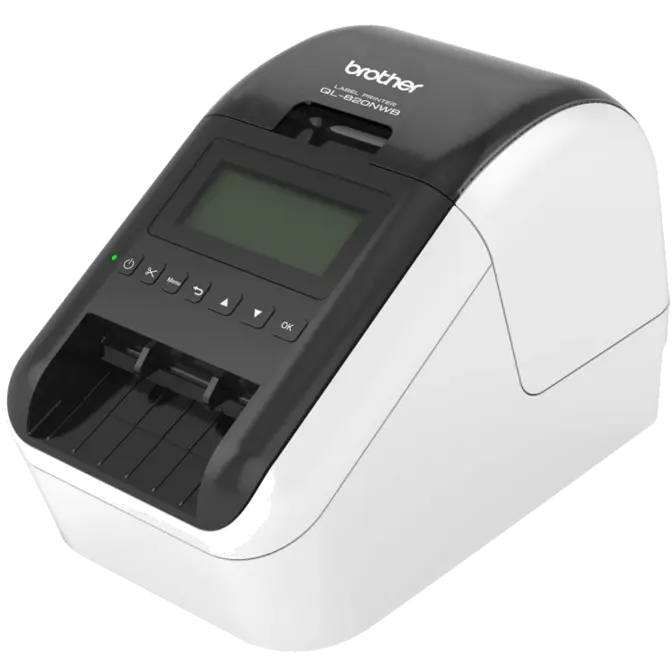

Brother QL-820NWB Professional Label Printer

Web ID: 21694

Fast print speed approx.110 labels per minute. Print labels with both black and red* print. Advanced label design software for PC/Mac (P-touch Editor). USB, Wi-Fi with AirPrint, Wired Ethernet and Bluetooth connectivity for easy connection to iOS/Android/Windows devices.
Manufacturer Warranty: 3 Year
Manufacturer PN: QL-820NWB
GTIN: 4977766775120
Manufacturer Website

$269SAVE $20

Add to cart

Out of Stock

Compare

Wish List

Question

Introducing the QL-820NWB; Brother’s fastest label printer of up to 110 labels/min. Equipped with a large graphic LCD display making it easier to operate and design personal labels, the Brother QL-820NWB can also work without being connected to a PC. Providing unprecedented flexibility and creative possibilities for users, this device prints in both black and red text, enabling a variety of use applications including warnings, highlighting important messages or emphasising offers on signs. Offering Bluetooth and wired network connectivity in addition to Wi-Fi, AirPrint and USB connection, and an optional Li-ion battery supporting mobile use, the QL-820NWB is the professional tool you’ve been looking for.

General
- FunctionsWired/Wireless network ready with Bluetooth labeller that prints 62mm labels with auto cutter
- Hardware TypeDesktop
- EngineDirect thermal
- Standard Memory6Mb / 255 templates
Display
- Display TypeLCD Display 62mm x 26mm with Preview and Backlight, LED - Power
Control Panel
- Buttons7 (Power, Cut, Menu, Return, Up, Down, OK)
Printer
- Emulation1.Raster
  2.ESC/P
  3.PTouch template
- Print SpeedMax. 176 mm / sec.
- Printer Resolution300 dpi / 720 dots
- Distributed PrintingYes (Windows Only via USB or Ethernet)
Labeller
- Characters and SymbolsPC Select
- Frames and BackgroundsPC Select
- BarcodesYes
- BarCode NamesSoftware side: CODE39, CODE128, UCC/EAN128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13, EAN8, ISBN-2(EAN13 AddOn2), ISBN-5(EAN13 AddOn5), Laser Barcode, POSTNET, RSS(RSS14 Standard, RSS14 Truncated, RSS14 Stacked, RSS14 Stacked Omni, RSS Limited, RSS Expanded, RSS Expanded Stacked), PDF417(Standard, Truncate, Micro), QR code(Model1, Model2, Micro), Data Matrix(ECC Square, ECC Rectangular), MaxiCode(Model2, Model3, Model4, Model5), IMB**
  Machine side: CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked), PDF417(Standard, Truncate, Micro), QR Code(Model 1, Model 2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENTION
- Multi Line PrintPC Select
- Tape Length Setting12.7mm - 1000mm
- Max Print Height58.93 mm
- Max Print LengthUp to 1000mm long (Windows)
- Fonts LabellerBuilt-in Bitmap fonts: Helsinki, Brussels, Letter Gothic Bold, San Diego, Brougham
  Built-in Outline fonts: Helsinki, Brussels, Letter Gothic
  All True Type Fonts installed in your computer
- Time and Date FeatureBuilt-in or Via Computer
Software
- Software IncludedWin: P-touch Editor , Office Add-in (Word, Excel, Outlook), P-touch Address Book ver. 1.1
  Mac: P-touch Editor
- Template Transfer to MachineYes (255 Templates or 6MB)
Connectivity
- InterfaceUSB(Full Speed), RS-232C, 10/100 BASE-TX Wired Ethernet, IEEE 802.11b/g/n Wireless LAN, Bluetooth, USB Host
- Wired Interface10/100 BASE-TX Wired Ethernet
- Wireless InterfaceYes
- Operating SystemWindows 10, Windows 8/8.1, Windows 7, Vista, Server 2008, Server 2008R2, Server 2012, Server 2012R2
  Mac: OSX 10.9 or greater
  Linux deb, rpm (Only driver)
  Android / IOS
Mobile / Web Printing
- Mobile Operating SystemIprint&Label (Android/IOS), AirPrint
- iPrintLabelAndroid/IOS
Networking
- Wireless InterfaceYes
- Wireless ModeIEEE 802.11b/g/n, (Infrastructure Mode), IEEE 802.11b (Adhoc Mode)
- Wireless SecuritySSID (32 chr), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), LEAP, EAP-FAST
Power Supply
- AC AdaptorExternal S/W Power Supply (PA-AD-001A)
- Battery LifeMono:4,300 labels / 2 colour:1,400 labels
- Battery RechargeLess than 2 hours and 30 minutes
Options
- Optional PowerRechargeable Lithium-Ion Battery Pack (PA-BU-001)
- Optional OtherCleaning Sheet (10 sheets)
- BatteriesOptional Rechargeable Lithium-Ion Battery Pack (PA-BU-001)
Consumable
- Roll Width62mm
- Roll TypeDK Rolls (DK Die-cut Labels / DK Continuous Length Tape / DK Two Colour Rolls)
- Roll SizeSee Roll Type
- Roll CutterDurable Auto cutter (User unreplaceable)
Weight and Measures
- Size125x234x145 (WxDxH) mm
- Weight1.13kg (without DK roll)
Environment
- Energy Star CompliantYes
- Auto Power OffYes
Others
- Warranty3 Years Return To Base
- Carton ContentsQL-820NWB, CD-ROM (Software/Driver/User's Guide/Network Guide), Quick Start Guide, DK Rolls Line-up Guide, DK11201 Standard Address Label (Starter roll, 100 labels), DK22251 62mm 2 Colour Continuous Length Paper Tape (Starter roll, 5m), Power Cord and Adaptor
