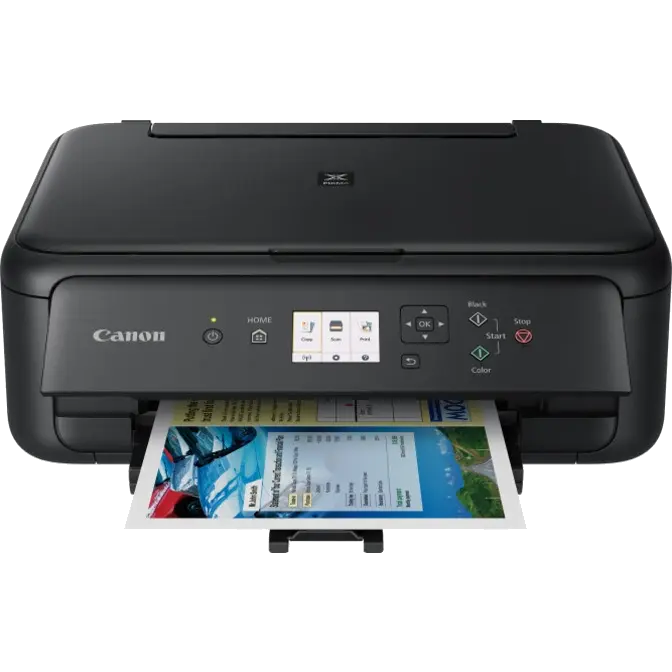

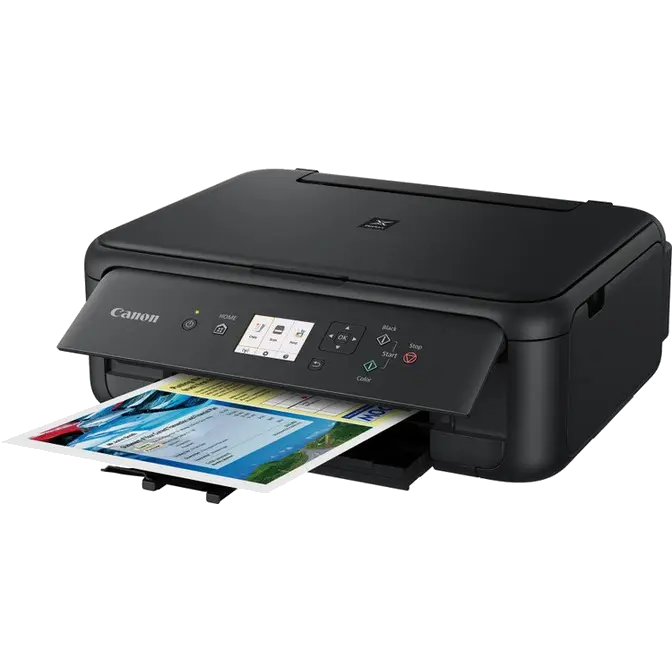

Canon PIXMA TS5160 Wireless Colour Multifunction Inkjet Printer Black
Web ID: 22920
Every function is easier with the manually adjustable front panel, LCD display and simple interface. The clear buttons mean quick access to the printers primary functions, whether that be printing, copying or scanning. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: TS5160
GTIN: 4549292090772
Manufacturer Website
$109
The printer for convenient high quality colour prints
- Auto Duplex Prints
Save time and money with the auto duplex printing function, which automatically prints on both sides of paper.
- App Connected
Using PIXMA Cloud Link, accessed through the Canon PRINT app, you can now print from popular social network and cloud services including Facebook, Instagram, Google Drive, Dropbox, OneDrive and many more.
- Dual Paper Feeder
Get flexible with the way your printer receives paper — either through rear paper feeding or via front paper cassette. The paper output tray is also automatically expandable.
- Wireless
Print with ease with PIXMA Cloud Print and other applications such as Apple AirPrint, Google Cloud Print that simply connect to mobile devices.
| Printing Resolution (Horizontal x Vertical) | 4800 x 1200 dpi |
|---|---|
| Print Speed | Documents: BB&W: 13.0 ipm, Colour: 6.8pm [1] Photo:Approx. 43 seconds (4”x6” borderless) [2] |
| Ink Type | FINE Cartridge |
| Ink Tanks | PG-640BK CL-641 |
| XL Ink Tanks | PG-640XL BK CL-641XL PG-640XXL BK |
| Ink Yield: Borderless 4”X6” photo | PG-640BK (2465) CL-641 (69) PG-640XL BK (5235) CL-641XL (150) PG-640XXL BK (7560) |
| Ink Yield: A4 | PG-640BK (180) CL-641 (180) |
| XL Ink Yield: A4 | PG-640XL BK (400) CL-641XL (400) PG-640XXL BK (600) |
| Borderless Printing | Top/Bottom/Right/Left margin: each 0mm (Supported Paper Size: A4/LTR/4"x6"/5"x7"/8"x10"/Square (5" x 5") [3] |
| Bordered Printing | Top margin: 3 mm, Bottom margin: 5 mm Left/Right margin: each 3.4 mm (LTR/LGL: Left: 6.4 mm, Right: 6.3 mm) |
| Auto Duplex | Yes |
| Duplex Printing | Yes |
| Paper Capacity | Plain paper: A4, A5, B5, LTR = 100 sheets, LGL = 10 sheets |
| Paper Sizes | A4, A5, B5, Letter, Legal, Envelopes (DL,COM10), 4”x6”, 5”x7”, 8”x10”, Custom size (width 55mm – 215.9mm, length 89mm – 676mm), Square (5”x5”) |
| Paper Sizes | 4" x 6", 5" x 7", 8" x 10", A5, A4, B5, Custom size (width 55mm – 215.9mm, length 89mm – 676mm), Envelope (DL, COM10), Legal, Letter, Square (5”x5”)*30 |
| Supported Paper Weights | Plain Paper: 64-105 g/m2 , Canon specialty paper: max paper weight : approx. 300 g/m2 (Photo Paper Pro Platinum PT-101) |
Network
| Protocol | TCP/IP |
|---|---|
| Wireless LAN Network Type | IEEE802.11n/IEEE802.11g/IEEE802.11b |
| Frequency Band / Channel | 2.4GHz, 1-13 [8] |
| Wireless LAN Range | Indoor 50m (depending on the transmission speed and conditions) |
| Security | WEP64/128bit, WPA-PSK(TKIP/AES),WPA2-PSK(TKIP/AES) |
| Wired LAN Network Type | IEEE802.11n/IEEE802.11g/IEEE802.11b |
| Mobile Phone/Tablet Printing | Available |
| Camera/Memory Card Printing | N/A |
Copier
| Multiple Copy | Max. 99 pages (black/colour) |
|---|
Scanner
| Scanner Type | Flatbed |
|---|---|
| Scanning resolution | 1200 x 2400 dpi [4] |
| Scanning Speed | A4 Colour / 300 dpi [5] |
| Scanning Bit Depth (Input/ Output) | Grayscale; 16bit/8bit Colour: RGB each 16bit/8bit |
PIXMA Cloud Link
| Bluetooth | Available (Android only) |
|---|---|
| Wi-Fi | Available |
| For Smart Phone or Tablet | Available |
| Google Cloud Print | Available |
| Apple Air Print | Available |
| PIXMA Printing Solutions | Available |
General Features
| Interface | High Speed USB (USB cable not included) |
|---|---|
| Paper Feed | Rear Tray, front load cassette |
| Power Source | AC 100-240V, 50/60Hz |
| Power Consumption | Standby (scanning lamp is off) USB connection to PC: approx. 0.7W, OFF: Approx. 0.2W, Copying (USB connection to PC) approx. 14W |
| Operating Environment | Temperature: 15 - 30°C Humidity: 10 - 80%RH (no dew condensation) [7] |
| Dimensions (W x D x H) | Approx. 425 x 315 x 147 mm |
| Weight | Approx. 6.5 kg |
| Quiet Mode | Available |
Notes
| Barcode | 4549292090772 |
|---|---|
| general | 2. Photo print speed is based on the default setting using ISO/JIS-SCID N2 on Photo Paper Plus Glossy II and does not take into account data processing time on host computer. Print speed may vary depending on system configuration, interface, software, doc |
| Print Speed | 1. Document print speeds are the averages of ESAT in Office Category Test for the default simplex mode, ISO/IEC 24734. Print speed may vary depending on system configuration, interface, software, document complexity, print mode, page coverage, type of pap |
| Print Speeds | Document Print Speeds are averages of EAST in Office Test of the default simplex mode, ISO/IEC 24734, Print speed may vary depends on system configuration, interface software, document complexity, print mode, page, coverage, type of paper used etc |
| Ink Yield | Declared yield value in accordance with ISO/IEC 24711. Values obtained by continuous printing. Ink yield may vary depending on texts/photo printed, applications software used, print mode, combination of the ink tank /ink cartridge size and type of paper. |
| Borderless Printing | Paper types NOT supported for borderless printing are as follows: Envelope, High Resolution Paper, T-Shirt Transfer, Photo Stickers. |
| Copy Speeds | Copy Speeds are the average of sFCOT and sESAT, ISO/IEC29183, Copy speed may vary depending on document complexity, copy mode, page coverage, type of paper used etc.. and does not take into account warming-up time. |
| Scanning Resolution | Optical resolution is measure of maximum hardware sampling resolution, based on ISO 14473 standard. |
| Scanning Speed | Colour documents scan speed is measured with ISO/IEC29183 target A. Scan speed indicates the time measured between pressing the scan button of the scanner driver and the on-screen status display turns off. Scan speed may vary depending on system configura |
| Frequency Band / Channel | 1-11 in US, CND, LTN, BRA, TW and HK |
| Recommended Environment | For the temperature and humidity conditions of papers such as photo paper, refer to the paper's packaging or the supplied instructions. |
