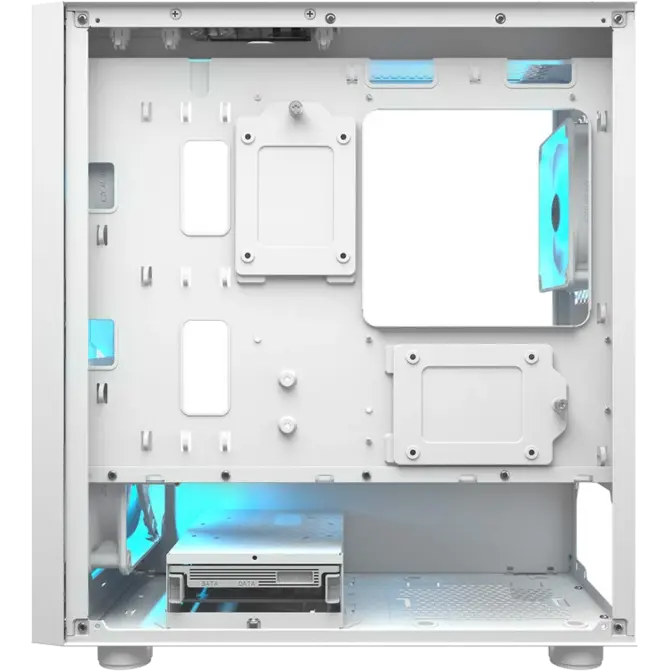

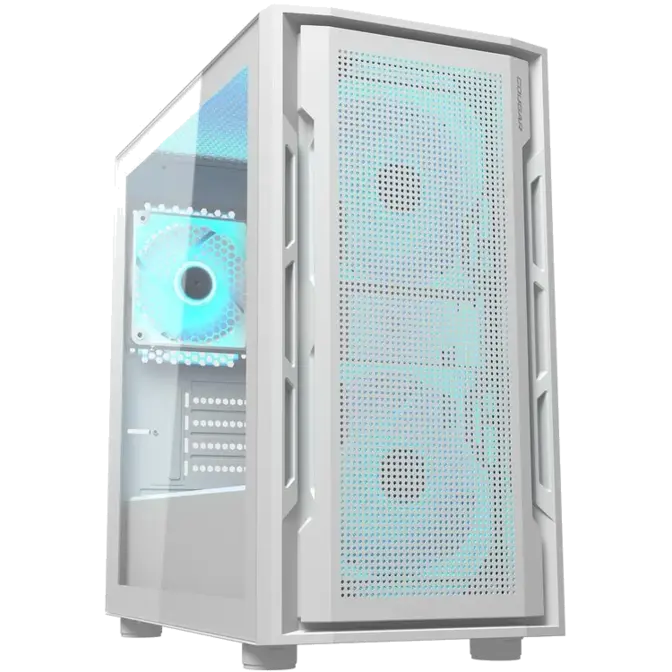

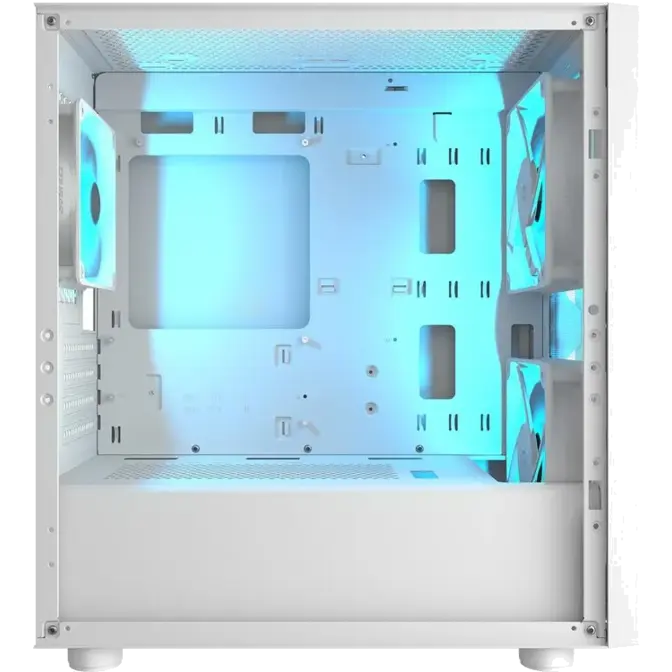

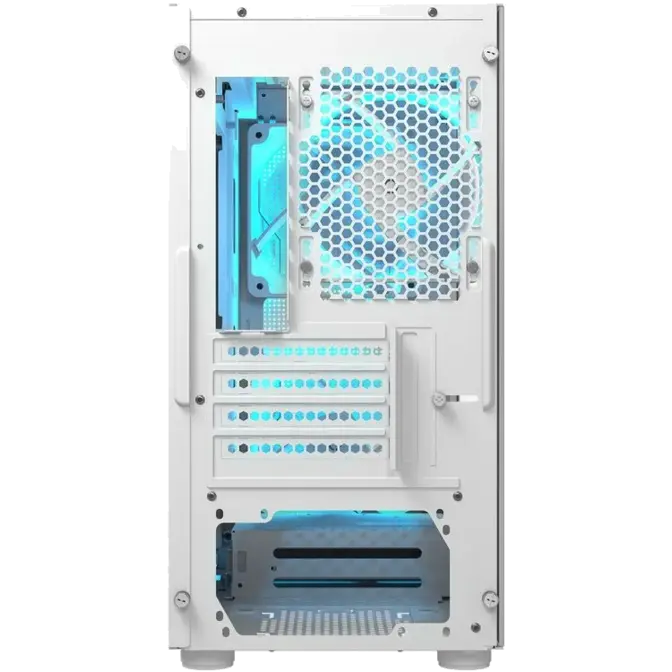

Cougar Uniface Mini RGB MicroATX White Case
Web ID: 42562
Case Type: Micro ATX Case
Form Factor: ATX (PSU) || SFX (PSU) || Mini-ITX || Micro-ATX
Colour: White
Cooler Clearance: 160mm (Cooler Clearance)
GPU Max Length: 340mm Max GPU Length
Radiator Size: 120mm Radiator || 140mm Radiator || 240mm Radiator || 280mm Radiator
Interface: 2.5" Drive Bay || 3.5" Drive Bay
USB: USB 1 x 2.0 || 2 x USB 3.0
Usage: Gaming
Manufacturer Warranty: 1 Year
Manufacturer PN: CGR-55C9W-RGB
GTIN: 192554007687
Manufacturer Website
$84
| Product Name | Uniface Mini RGB / Uniface Mini RGB (White) | |
|---|---|---|
| Case Form Factor | Mini Tower | |
| Motherboard Type | Mini ITX / Micro ATX | |
| Dimensions (WxHxD) | 210 x 422 x 390 (mm) 8.3 x 16.6 x 15.4 (in) |
|
| I/O Panel | USB 3.0 x 2, USB 2.0 x 1, Mic x 1 / Audio x 1, RGB Button | |
| 3.5" Drive Bay | 2 | |
| 2.5" Drive Bay | 2+2 (converted from 3.5" drive bays) | |
| Expansion Slots | 4 | |
| Cooling Fan Support | Front | 120mm x 3 / 140mm x 2 |
| Top | 120mm x 2 / 140mm x 2 | |
| Rear | 120mm x 1 | |
| Pre-installed Fans | Front | 140mm ARGB fan x 2 |
| Rear | 120mm ARGB fan x 1 | |
| Speed | 140mm ARGB fan: 1000 ± 10% RPM 120mm ARGB fan: 1200 ± 10% RPM |
|
| Connector | 5V 3 Pin (ARGB) / 3 Pin (Fan) | |
| Maximun Number of Fans | 6 | |
| Water Cooling Support | Front | 280mm / 240mm / 140mm / 120mm |
| Top | 240mm / 120mm (When installing the top radiator, the RAM height limitation is 45mm.) | |
| Rear | 120mm | |
| RGB Sync Hub with M/B | Yes | |
| Max. Graphics Card Length | 340 (mm) / 13.4 (in) | |
| Max. CPU Cooler Height | 160 (mm) / 6.3 (in) | |
| Max. PSU Length | 160 (mm) / 6.3 (in) | |
Packing Data
| Uniface Mini RGB | Uniface Mini RGB(White) | |
| Product Number (P/N) | 3855C90.0003 | 3855C90.0004 |
| Model No. | CGR-55C9B-RGB | CGR-55C9W-RGB |
| EAN CODE | 4710483777615 | 4710483777622 |
| UPC CODE | 192554007670 | 192554007687 |
| JAN CODE | 4541995038587 | 4541995038594 |
| Individual Size W/O Packaging Weight (N.Weight) | 5.95 (kg) | |
| Individual Packaging Weight (G.Weight) | 7 (kg) | |
| Individual Size W/O Packaging (WxHxD) | 210 x 422 x 390 (mm) | |
| Individual Packaging Size (WxHxD) | 272 x 480 x 480 (mm) | |
