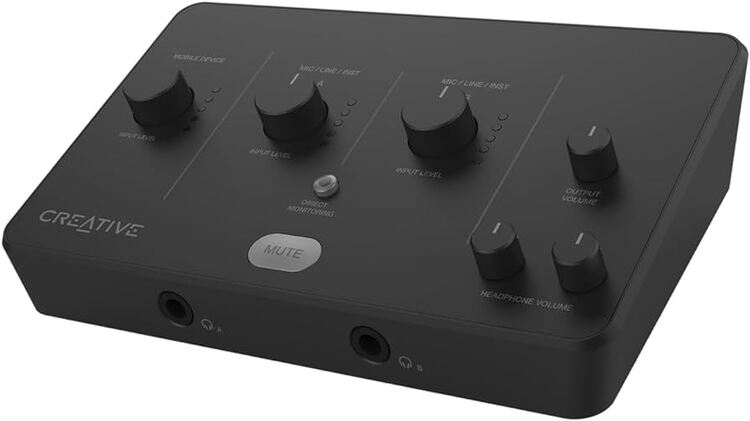

Creative Live! Audio A3 USB Audio Interface
Web ID: 39803
Unleash your creative potential with the all-new Creative Live! Audio A3 USB audio interface.
Engineered to deliver exceptional audio at 24-bit / 96 kHz and unparalleled versatility, the Creative Live! Audio A3 is your gateway to professional-grade audio recording, playback, and mixing, all in the comfort of your own creative space.
Manufacturer Warranty: 1 Year
Manufacturer PN: 70SB189000000
Manufacturer Website
USB Interface
- USB-C for power and data
Input
- 2 x XLR/ 1/4” Combo (Mic/Line/ Instrument)
- 1 x TRRS 3.5 mm (1/8”) Mobile stereo I/O
Output
- 2 x 1/4” Headphone out
- 1 x 1/4” Balanced/Unbalanced Stereo Out
Supported Recording and Playback Resolution *
- Playback - 16/24-bit, 44.1 kHz, 48.0 kHz, 96.0 kHz
- Recording - 24-bit, 44.1 kHz, 48.0 kHz, 96.0 kHz
*Playback and recording must be set at the same sampling rate
Frequency Response
- 20 - 45,000 Hz
Microphone Gain
- Up to 50 dB
Dynamic Range
- > 90 dB
Total Harmonic Distortion (THD)
- 0.05%
Dimensions (L x D x H)
- 187.7 x 109.2x 52.7 mm / 7.38 x 4.30 x 2.07 inches
Weight
- 890g (31.4 oz)
SYSTEM REQUIREMENTS
Windows
- Intel® i3 or AMD® Ryzen equivalent processor
- Intel, AMD, or 100% compatible motherboard
- Microsoft® Windows 11 / 10, 32 / 64-bit ver 1903 or higher
- 4 GB RAM
- > 4 GB of free hard disk space
- Available USB 2.0 / USB 3.0 port
Mac
- Mac running macOS 10.15 or later
- 4 GB RAM
- > 4 GB of free hard disk space
- Available USB 2.0 / USB 3.0 port
PACKAGE CONTENTS
- Creative Live! Audio A3
- USB-C to USB-A Cable for power and data
- Quick Start Leaflet
- Warranty Card
WARRANTY
2-year Limited Hardware Warranty (EU Countries)
1-year Limited Hardware Warranty (Non-EU Countries)
