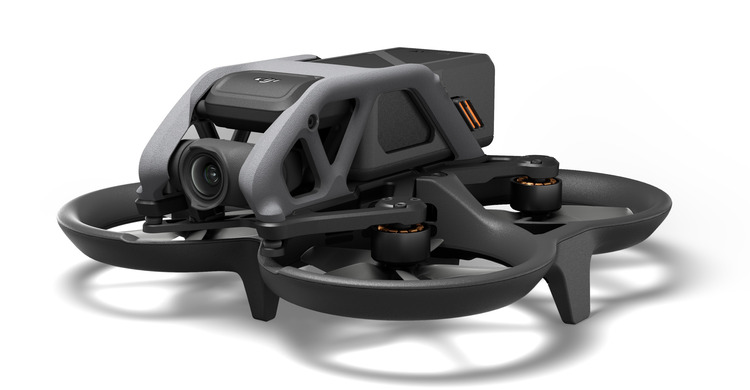

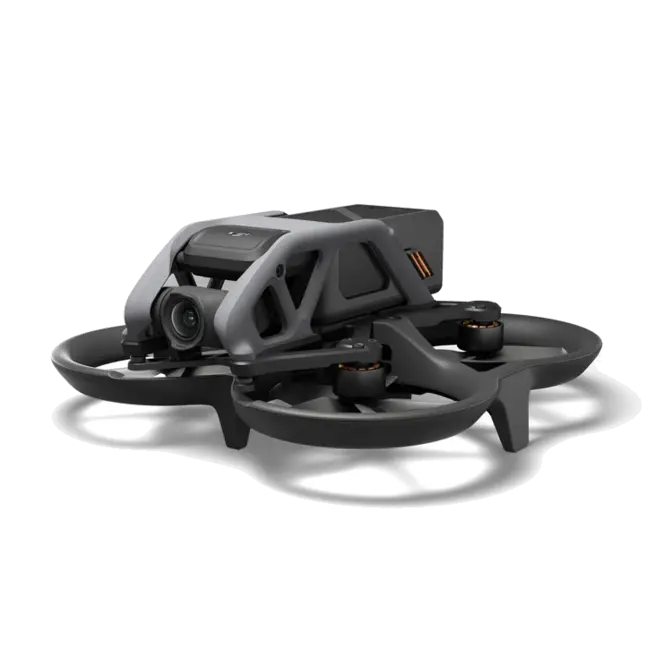

DJI Avata Drone Standalone Unit
Web ID: 43698
- Immersive Flight Experience
- Intuitive Motion Control
- 4K/60fps 155 Super-Wide FOV Videos
- Powerful Video Stabilization
- Weighs About 410 g, Lightweight and Portable
- Enhanced Safety with Built-in Propeller Guard
- 10km 1080p Low-Latency Video Transmission
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: CP.FP.00000062.01
Manufacturer Website
Discover the Freedom of Flight
Lose yourself in total immersion as you swoop and dive like never before. Combine Avata with DJI goggles for a life-like flying experience.
Get a Feel for Flying
Flight is accessible to all with the DJI Motion Controller. It follows your hand movements and allows users of all levels to fly with confidence.
Super-Smooth 4K Video
Shoot 4K/60fps video with the 155° FOV for visuals that stand out. And keep your footage stable with RockSteady and HorizonSteady.
Light and Agile
Avata's compact design makes it more convenient to carry and perfect for hitting the tightest gaps. Take it with you and fly like never before.
Built for You to be Bold
Avata features a built-in propeller guard, an Emergency Brake button, and downward sensors for next-level safety and low-altitude flight.
Camera
Sensor1/1.7-inch CMOS
Effective Pixels: 12 MP
LensFOV: 155°
Equivalent Focal Length: 12.7 mm
Focal Length: 2.34 mm
Aperture: f/2.8
Focus Mode: FF
Focus Range: 0.6 m to ∞
ISO Range100-6400 (Auto)
100-25600 (Manual)
Shutter SpeedVideo: 1/8000-1/50 s
Photo: 1/8000-1/50 s
Still Photography ModeSingle Shot
Max Image Size4000×3000
Photo FormatJPEG
Video ResolutionWith DJI Goggles 2:
4K@30/50/60fps
2.7K@30/50/60/100/120fps
1080p@30/50/60/100/120fps
With DJI FPV Goggles V2:
4K@30/50/60fps
2.7K@30/50/60/100/120fps
1080p@30/50/60/100/120fps
Video FormatMP4
Max Video Bitrate150 Mbps
Color ModeStandard
D-Cinelike
EISSupports RockSteady and HorizonSteady
Can be disabled
Distortion CorrectionSupports Normal Mode, Wide Mode, and Ultra Wide Mode
Supported File SystemexFAT
Gimbal
Mechanical RangeTilt: -95° to 75°
Controllable RangeTilt: -80° to +65°
StabilizationSingle-Axis (tilt)
Max Control Speed60°/s
Angular Vibration Range±0.01°
Electronic Roll AxisReal-time screen correction is unavailable during recording, but can be applied to the footage recorded on the drone.
Aircraft
ModelQF2W4K
Takeoff WeightApprox. 410 g
Dimensions (L×W×H)180×180×80 mm
Diagonal Distance120 mm
Max Ascent Speed6 m/s (Normal Mode, Sport Mode)
Max Descent Speed6 m/s (Normal Mode, Sport Mode)
Max Speed [1]8 m/s (Normal Mode)
14 m/s (Sport Mode)
27 m/s (Manual Mode)
Maximum Takeoff Altitude5000 m
Max Hover TimeApprox. 18 mins [2]
Max Flight Distance11.6 km
Max Wind Speed Resistance10.7 m/s (Level 5)
Operating Temperature Range-10° to 40° C (14° to 104° F)
Transmission Power (EIRP)FCC: < 33 dBm
CE: < 14 dBm
SRRC: < 30 dBm
AntennasDual Antennas, 2T2R
GNSSGPS + Galileo + BeiDou
Hovering Accuracy RangeVertical:
±0.1 m (with Vision Positioning)
±0.5 m (with GNSS Positioning)
Horizontal:
±0.3 m (with Vision Positioning)
±1.5 m (with GNSS Positioning)
Supported SD CardsmicroSD (up to 256 GB)
Recommended microSD CardsSanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung PRO Plus U3 V30 A2 256GB microSDXC
Internal Storage20 GB
Sensing System
Downward (Binocular Vision and ToF) [3]ToF Effective Measurement Height: 10 m
Precise Hovering Range: 0.5-10 m
Vision Sensor Hovering Range: 0.5-20 m
Operating EnvironmentDiffuse reflective surfaces with a clear pattern > 20% (such as walls, trees, or people)
Adequate lighting (lux > 15, normal indoor lighting conditions)
Intelligent Flight Battery
Battery Capacity2420 mAh
Voltage14.76 V
Charging Voltage Limit17 V
TypeLi-ion
Chemical SystemLiNiMnCoO2
Energy35.71 Wh@0.5C
Discharge RateTypical: 7C
WeightApprox. 162 g
Charging Temperature Range5° to 40° C (41° to 104° F)
Video Transmission
Communication Frequency2.400-2.4835 GHz (RX only)
5.725-5.850 GHz (RX and TX) [4]
Communication BandwidthMax 40 MHz
Live View Quality and Latency [5]With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The video transmission latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The video transmission latency is lower than 40 ms.
With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The video transmission latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The video transmission latency is as low as 40 ms.
Max Video Transmission Bitrate [6]50 Mbps
Max Video Transmission Range [7]10 km (FCC), 2 km (CE), 6 km (SRRC)
Audio TransmissionN/A
DJI Goggles 2
ModelRCDS18
WeightApprox. 290 g (headband included)
Dimensions (L×W×H)With antennas folded: 167.40×103.90×81.31 mm
With antennas unfolded: 196.69×103.90×104.61 mm
Screen Size (single screen)0.49-inch
Resolution (single screen)1920×1080
Refresh RateUp to 100 Hz
Interpupillary Distance Range56-72 mm
Diopter Adjustment Range-8.0 D to +2.0 D
FOV (single screen)51°
Communication Frequency2.400-2.4835 GHz
5.725-5.850 GHz [4]
Transmission Power (EIRP)2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)
5.8 GHz [4]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)
Wi-Fi ProtocolWi-Fi 802.11b/a/g/n/ac
Wi-Fi Communication Frequency2.400-2.4835 GHz
5.150-5.250 GHz (indoor use only) [8]
5.725-5.850 GHz [4]
Wi-Fi Transmission Power (EIRP)2.4 GHz: < 20 dBm (FCC/CE/SRRC/KC)
5.1 GHz [8]: < 20 dBm (FCC/CE/KC)
5.8 GHz [4]: < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)
Bluetooth ProtocolBluetooth 5.2
Bluetooth Communication Frequency2.400-2.4835 GHz
Bluetooth Transmission Power (EIRP)< 8 dBm
Max Video Transmission Bitrate [6]50 Mbps
Video Recording FormatMOV
Supported Video and Audio Playback FormatsMP4 and MOV (video coding formats: H.264 and H.265; audio format: ACC, PCM)
Wi-Fi Wireless StreamingSupports DLNA Protocol
Operating Temperature Range-10° to 40° C (14° to 104° F)
Power InputDJI Goggles 2 Battery
Supported SD CardsmicroSD (up to 256 GB)
DJI Goggles 2 Battery
Capacity1800 mAh
Voltage7-9 V (1.5 A)
TypeLi-ion
Chemical SystemLiNiMnCoO2
Energy18 Wh
Charging Temperature Range0° to 45° C (32° to 113° F)
Max Charging Power12.6 W (5 V/2 A, 9 V/1.4 A)
WeightApprox. 122 g
Dimensions (L×W×H)73.04×40.96×26 mm
Operating TimeApprox. 2 hours
DJI FPV Goggles V2
ModelFGDB28
WeightApprox. 420 g (headband and antennas included)
Supported Video and Audio Playback FormatsMP4, MOV, MKV (video coding format: H.264; audio formats: AAC-LC, AAC-HE, AC-3, MP3)
Operating Temperature Range0° to 40° C (32° to 104° F)
Video Recording FormatMOV (video coding format: H.264)
FOV30° to 54°, adjustable
Image Size: 50% to 100%
Communication Frequency2.400-2.4835 GHz
5.725-5.850 GHz [4]
Max Video Transmission Bitrate [6]50 Mbps
Dimensions (L×W×H)Without antennas: 184×122×110 mm
With antennas: 202×126×110 mm
Transmission Power (EIRP)2.400-2.4835 GHz
FCC: ≤ 28.5 dBm
CE: ≤ 20 dBm
SRRC: ≤ 20 dBm
5.725-5.850 GHz [4]
FCC: ≤ 31.5 dBm
CE: ≤ 14 dBm
SRRC: ≤ 19 dBm
Screen Size (single screen)2-inch
Power InputDedicated DJI Goggles batteries
Supported SD CardsmicroSD (up to 256 GB)
Communication BandwidthMax 40 MHz
Interpupillary Distance Range58-70 mm
Refresh Rate144 Hz
Screen Resolution1440×810
DJI FPV Goggles V2 Battery
WeightApprox. 119 g
Dimensions (L×W×H)73.04×40.96×26 mm
Capacity1800 mAh
VoltageMax 9 V
Chemical SystemLiNiMnCoO2
TypeLi-Po 2S
Energy18 Wh
Charging Temperature Range0° to 45° C (32° to 113° F)
Max Charging Power10 W
Operating TimeApprox. 110 mins
DJI Motion Controller
ModelFC7BMC
WeightApprox. 167 g
Communication Frequency2.400-2.4835 GHz
5.725-5.850 GHz [4]
Transmission Power (EIRP)2.4 GHz: ≤ 28.5 dBm (FCC), ≤ 20 dBm (CE/SRRC)
5.8 GHz [4]: ≤ 31.5 dBm (FCC), ≤ 19 dBm (SRRC), ≤ 14 dBm (CE)
Operating Temperature Range-10° to 40° C (14° to 104° F)
Operating TimeApprox. 5 hours
DJI FPV Remote Controller 2
ModelFC7BGC
WeightApprox. 346 g
Communication Frequency2.400-2.4835 GHz
5.725-5.850 GHz [4]
Transmission Power (EIRP)2.4 GHz: ≤ 28.5 dBm (FCC), ≤ 20 dBm (CE/SRRC)
5.8 GHz [4]: ≤ 31.5 dBm (FCC), ≤ 19 dBm (SRRC), ≤ 14 dBm (CE)
Dimensions (L×W×H)190×140×51 mm
Operating TimeApprox. 9 hours
Operating Temperature Range-10° to 40° C (14° to 104° F)
Charging Time2.5 hours
Other
Footnotes1. The max flight speed is subject to dynamic local restrictions. Please abide by local laws and regulations when flying.
2. Tested when hovering in an environment without wind or interference.
3. DJI Avata only supports downward obstacle sensing when used with DJI FPV Remote Controller 2, or DJI Motion Controller in N Mode and S Mode.
4. The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
5. Tested in an outdoor open environment without interference. The video transmission latency data varies with different models.
6. Tested in an outdoor open environment without interference. The video transmission bitrate varies with operating environments.
7. FCC compliant and tested in an outdoor open environment without interference. Data is tested under different standards in an outdoor open environment without interference. Only to serve as a reference for the max one-way communication distance without considering RTH. Please pay attention to the RTH prompts during actual flight. Max one-way communication distance of DJI Avata in countries/regions of different standards:
FCC: United States, Australia, Canada, Hong Kong, Taiwan, Chile, Colombia, Puerto Rico, and other regions.
SRRC: Mainland China.
CE: UK, France, Germany, Portugal, Spain, Switzerland, Macau, New Zealand, UAE, and other regions.
8. The 5.1 GHz frequency band is currently banned in Thailand. For details, please refer to local laws and regulations.
Guaranteed software updates until2026/12/31
