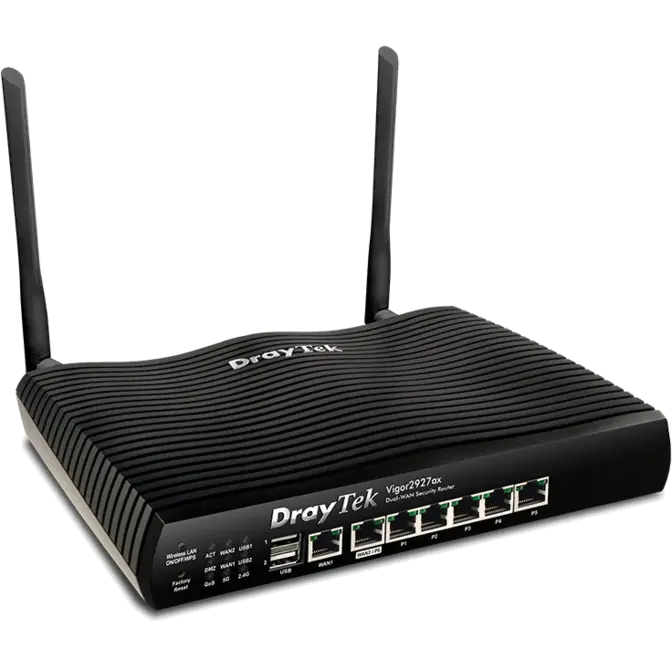

Draytek Vigor2927ax AX3000 Dual-Band WiFi 6 Dual-WAN Router
Web ID: 43504
The Vigor2927 Series are dual-Ethernet WAN Firewall routers providing Load Balancing and Failover for reliable Internet accesses. Featuring VPN, QoS, Route Policy, Firewall, Content Filtering, Bandwidth Management, Captive Hotspot Portal and a lot more, these are the ultimate routers for SMBs.
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: Vigor2927ax
Manufacturer Website
$769
| Interface | |
|---|---|
| Fixed WAN Port | 1 x Gigabit Ethernet |
| LAN/WAN Switchable Port | 1 x Gigabit Ethernet |
| Fixed LAN Port | 5 x Gigabit Ethernet |
| USB Port | 2 x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer |
| RJ-11 Port for Voice | 2 x FXS (V model) |
| Wi-Fi Antenna | 2 x External Dipole Gain: 3 dBi for 5GHz, 2.5 dBi for 2.4GHz (ax/ac/Vac models) |
| 2.4G WLAN | 802.11n 2×2 MIMO 400Mbps (ac/Vac models) 802.11ax 2×2 MIMO 574Mbps (ax model) |
| 5G WLAN | 802.11ac Wave 2 2×2 MU-MIMO 867Mbps (ac/Vac models) 802.11ax Wave 2 2×2 MU-MIMO 2402Mbps (ax model) |
| Performance | |
|---|---|
| NAT Throughput | 800 Mbps |
| NAT Throughput with Hardware Acceleration |
940 Mbps (Ethernet WAN) 1.8 Gbps (Dual WAN) |
| IPsec VPN Performance | 290 Mbps (AES 256 bits) |
| SSL VPN Performance | 120 Mbps |
| Max. Number of NAT Sessions | 60,000 |
| Max. Concurrent VPN Tunnels | 50 |
| Max. Concurrent OpenVPN/ SSL-VPN | 25 |
| Internet Connection | |
|---|---|
| IPv4 | PPPoE, DHCP, Static IP, PPTP/L2TP |
| IPv6 | PPP, DHCPv6, Static IP, TSPC, AICCU, 6rd, 6in4 Static Tunnel |
| 802.1p/q Multi-VLAN Tagging | |
| Multi-VLAN/PVC | |
| Wireless WAN | 2 (ac/Vac models) |
| 3G/4G/LTE WAN with USB modem | |
| Load Balancing | IP-based, Session-based |
| WAN Active on Demand | Link Failure, Traffic Threshold |
| Connection Detection | ARP, Ping |
| WAN Data Budget | Y |
| Dynamic DNS | Y |
| DrayDDNS | Y |
| LAN Management | |
|---|---|
| VLAN | 802.1q Tag-based, Port-based |
| Max. Number of VLAN | 16 |
| Number of LAN Subnet | 8 |
| DHCP Server | Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC |
| LAN IP Alias | Y |
| Wired 802.1x Authentication | Y |
| Port Mirroring | Y |
| Local DNS Server | Y |
| Conditional DNS Forwarding | Y |
| Hotspot Web Portal | Y |
| Hotspot Authentication | Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server |
| Networking | |
|---|---|
| Routing | IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP (IPv4) |
| Policy-based Routing | Protocol, IP Address, Port, Domain, Country |
| High Availability | Y |
| DNS Security (DNSSEC) | Y |
| IGMP | IGMP v2/v3, IGMP Proxy, IGMP Snooping & Fast Leave |
| Local RADIUS server | Y |
| SMB File Sharing (Requires external storage) | Y |
| VPN | |
|---|---|
| LAN-to-LAN | Y |
| Teleworker-to-LAN | Y |
| Protocols | PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN (Host to LAN) |
| User Authentication | Local, RADIUS, LDAP, TACACS+, mOTP |
| IKE Authentication | Pre-Shared Key, X.509 |
| IPsec Authentication | SHA-1, SHA-256 |
| Encryption | MPPE, DES, 3DES, AES |
| VPN Trunk (Redundancy) | Load Balancing, Failover |
| Single-Armed VPN | Y |
| NAT-Traversal (NAT-T) | Y |
| DrayTek VPN Matcher | Y |
| Firewall & Content Filtering | |
|---|---|
| NAT | Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP |
| ALG (Application Layer Gateway) | SIP, RTSP, FTP, H.323 |
| VPN Pass-Through | PPTP, L2TP, IPsec |
| IP-based Firewall Policy | Y |
| Content Filtering | Application, URL, DNS Keyword, Web Features, Web Category (subscription required) |
| DoS Attack Defense | Y |
| Spoofing Defense | Y |
| Bandwidth Management | |
|---|---|
| IP-based Bandwidth Limit | Y |
| IP-based Session Limit | Y |
| QoS (Quality of Service) | TOS, DSCP, 802.1p, IP Address, Port, Application |
| VoIP Prioritisation | Y |
| Wireless LAN (ax/ac/Vac models) | |
|---|---|
| Number of SSID | 4 per radio band |
| Security | WEP, WPA, WPA2, Mixed (WPA+WPA2), WPA3 |
| Authentication | Pre-Shared Key, 802.1x |
| WPS | PIN, PBC |
| WDS | Repeater (5GHz only) |
| Access Control | Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling |
| AirTime Fairness | Y |
| Band Steering | Y |
| MU-MIMO | (5GHz only) |
| WMM | Y |
| VoIP Gateway (Vac model) | |
|---|---|
| Protocol | SIP, RTP/RTCP, ZRTP |
| SIP Registrars | 12 |
| Dial Plan | Phone Book, Digit Map, Call Barring, Regional |
| Call Features | Call Waiting, Call Transfer, Scheduled DND, Hotline |
| Voice Codec | G.711 A/u law, G.723.1, G.726, G.729 A/B |
| Caller ID | FSK_ETSI, FSK_BELLCORE, DTMF |
| Management | |
|---|---|
| Local Service | HTTP, HTTPS, Telnet, SSH, TR-069 |
| Config File Export & Import | Y |
| Config File Compatibility | Vigor2926 Series |
| Firmware Upgrade | TFTP, HTTP, TR-069 |
| 2-Level Administration Privilege | Y |
| Access Control | Access List, Brute Force Protection |
| Syslog | Y |
| Notification Alert | SMS, E-mail |
| SNMP | v2, v2c, v3 |
| Managed by VigorACS | Y |
| Central VPN Management | 8 remote Vigor routers |
| Central AP Management | 20 VigorAPs |
| Mesh Network | 7 VigorAPs (ac/Vac models only) |
| Central Switch Management | 10 VigorSwitches |
| Physical | |
|---|---|
| Rack Mountable | Y Mouting Kit Excluded (DR101) |
| Power Supply | DC 12V @ 2A |
| Max. Power Consumption | 24 watts (ac model) |
| Dimension | 241mm x 165mm x 44mm |
| Weight | 630g (ac model) |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Certificate |   |
