Elgato XLR Dock Mic Interface for Stream Deck+ 10GBM9901
Web ID: 43038

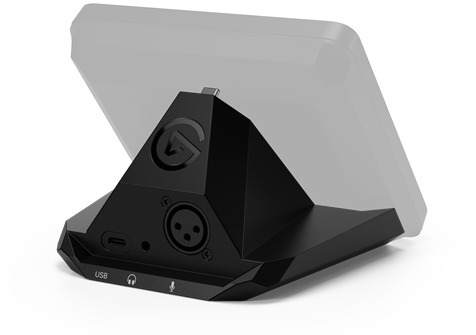

Equipped with XLR Dock, Stream Deck + becomes the ultimate audio station. In back, plug in your XLR microphone for studio-like sound. Up front, customize controls to mix, monitor, or do just about anything. It's all your audio in one place, saving you focus and desk space.
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: 10GBM9901
Manufacturer Website
FREQUENCY RESPONSE
20 Hz – 20 kHz
DYNAMIC RANGE
100 dB (120 dB with Clipguard)
EQUIVALENT INPUT NOISE (EIN)
-130 dBV at 60 dB gain
GAIN RANGE
0 – 75 dB
PHANTOM POWER
48 V DC, 7 mA
MAX INPUT LEVEL
10 V at 0 dB gain (with Clipguard)
MAX OUTPUT LEVEL
77 mW
RESOLUTION
24-bit
SAMPLE RATE
48 kHz
INTERFACE
USB 2.0, Type-C
DIMENSIONS
137 (W) x 115 (D) x 76 (H) mm | 5.39 x 4.53 x 2.99 in
WEIGHT
169 g | 5.96 oz

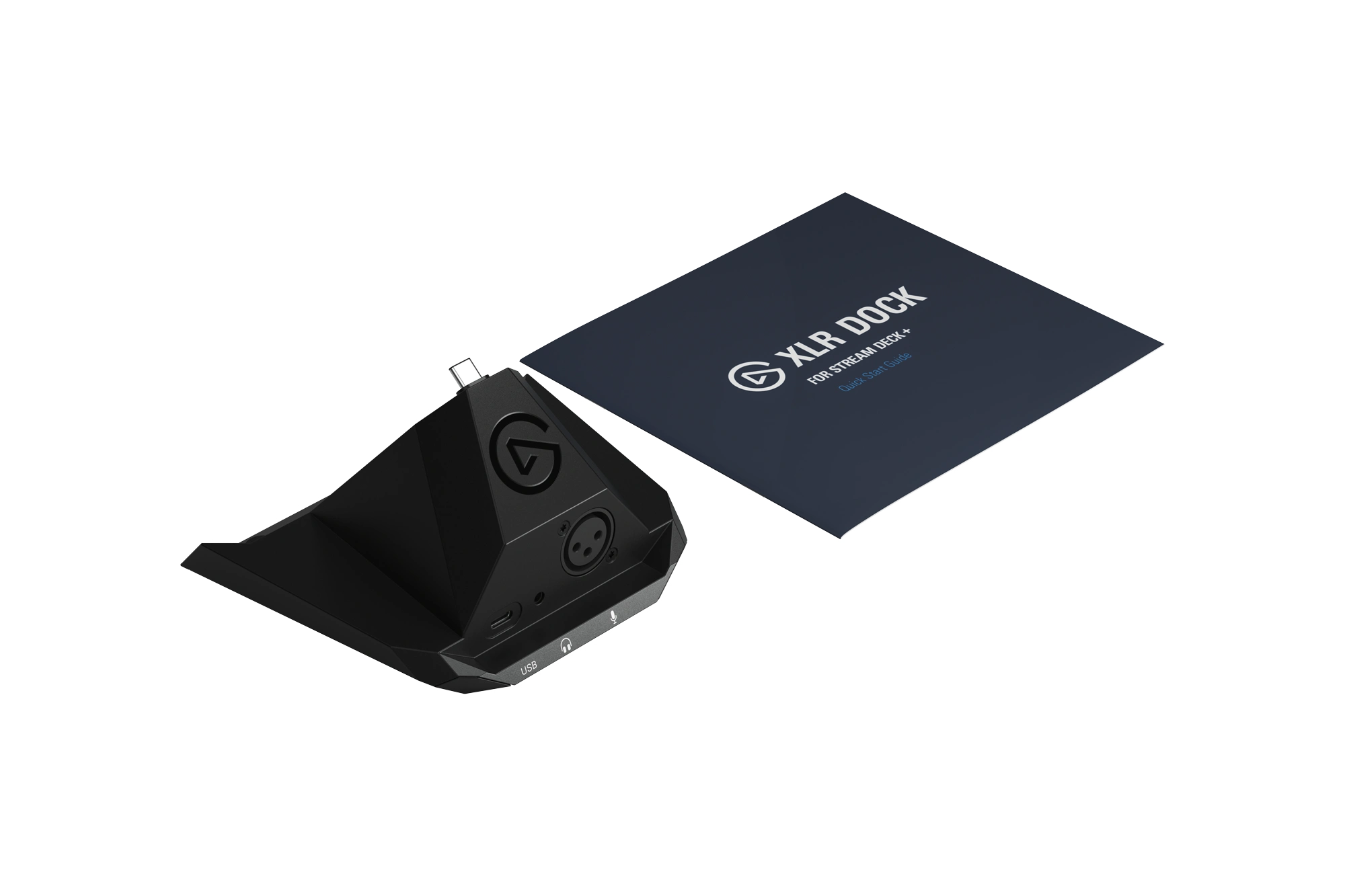

In The Box
XLR Dock for Stream Deck +
Quick Start Guide
