Epson EB-685W 3500 ANSI WXGA Ultra Short Throw Projector


Epson EB-685W 3500 ANSI WXGA Ultra Short Throw Projector

Web ID: 26767

PN EB-685W. Designed for todays BYOD classroom, the Epson EB-600 series takes classroom collaboration further. Offering 3x Higher Colour Brightness than competitive models, Epson 3LCD projectors and displays ensure bright, vivid images. It features optional wireless functionality (module sold separately) and advanced connectivity, so teachers can easily share content from multiple student devices, including Chromebooks. Wall Mount NOT included ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: EB-685W
Manufacturer Website

$1949
 Add to cart
Out of Stock
 Compare
 Wish List
 Question

Designed for today’s BYOD classroom, the Epson EB-600 series takes classroom collaboration further. Offering 3x Higher Colour Brightness1 than competitive models, Epson® 3LCD projectors and displays ensure bright, vivid images. It features optional wireless functionality (module sold separately) and advanced connectivity, so teachers can easily share content from multiple student devices, including Chromebooks — up to four at once with Moderator software2. Plus, its lamp lasts up to 10,000 hours in ECO Mode.


KEY FEATURES
  • 3 x Brighter Colours and reliable performance – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
  • Bright Images – 3,500 lumens colour/white brightness
  • Amazing images – WXGA resolution (1280 x 800) and 16:10 format

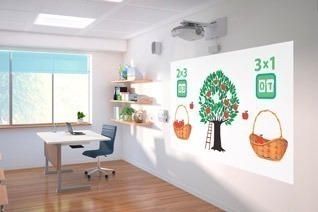

  • Ultra-short throw presentation display – get a 100" image from as little as 28cm away with virtually no shadow interference
  • Simultaneously display and control multiple device screens – wirelessly share content from up to four devices2, including Chromebooks, with Moderator software (requires optional wireless module)
  • Manage your display and send announcements remotely – easy network connectivity; software included
  • Versatile connectivity – 3x HDMI® supports multiple high-definition A/V devices, with MHL® support
  • Powerful sound to engage every student – built-in 16 W speaker and microphone input; or, use external speakers, even in Standby Mode
  • 10,000Hr maintenance cycle – the lamp and filter lasts up to 10,000 hours in ECO Mode


BASIC FUNCTIONS


3LCD Technology
3LCD Technology


All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.

3x Brighter Colours with Epson*
Up to 3x Brighter with Epson Projectors*


Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a tradeoff between white and colour brightness.

In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors*.

All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.

* Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.

Brighter Images


With brightness up to 3,500 lumens, the screen is easily viewed from anywhere in the classroom, even without dimming the lights.

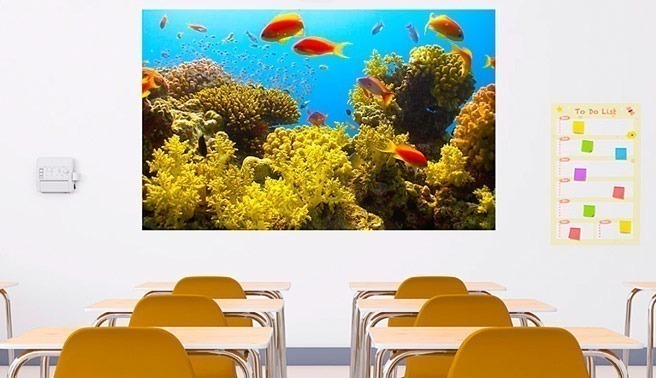

Readability from Anywhere in the room

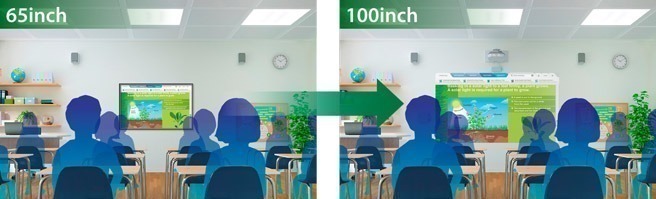

Ensure every student in the classroom can easily read and understand the information you're sharing. Offering clear, easy-to-see images up to 100", Epson displays help students learn and retain information, regardless of where they sit.

Wide viewing angle


Clear images can be seen from any angle with no limitations of reflective glare. Projected images also allow you to get closer to the image without straining your eyes.


High Resolution


Featuring native resolution of WXGA (1280 x 800), the Epson EB-600 series delivers high quality images and crisp, sharp text without any distortion.




WIRELESS CLASSROOMS


Dual Pen

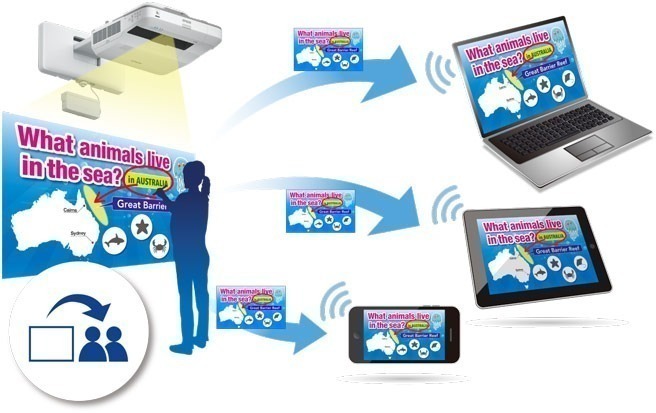

Epson iProjection™ via optional wireless dongle


Epson iProjection is the wireless display solution for today's BYOD classrooms. With true multi-platform support, students can wirelessly display content from Chromebooks, PCs and Mac® computers, as well as iOS and Android devices.

When used in conjunction with Epson Multi-PC projection plus Moderator device management software4, up to 50 users can connect to the projector simultaneously, displaying content from as many as four at a time. It's the perfect tool for displaying a variety of content — or for comparing students' work side by side.

Networking features that take teaching to the next level
  • Manage up to 1,024 Epson networked displays using the included EasyMP® Monitor software or Crestron RoomView® — saves time and money
  • Update display firmware in-house via the network, a USB cable, or a USB flash drive — eliminates the need for external service centre repairs; saves time and money
  • Send updates or announcements remotely to up to 1,024 Epson networked displays using the Message Broadcasting plug-in for EasyMP Monitor
  • Connect your display to an access point to share it with the entire class, without running more cables

4Moderator feature is part of Easy MP Multi-PC Projection software

EASY INSTALLATION AND MAINTENANCE


Easy Setup Options


Epson displays offer a suite of innovative features that ensure flexible placement and fast, easy setup:

3x HDMI — supports multiple high-definition A/V devices. Compatible with the latest laptops, Blu-Ray Disc® and media players

MHL — the latest in connectivity

  • Display content from your MHL-enabled smartphones, tablets and streaming devices
  • Use the display remote to control MHL-enabled devices
  • Charge your MHL-enabled device when it's plugged into the display5
  • Offers instant access to movies, games and more



Quick Corner® — this innovative feature allows you to move any of the four corners of an image independently, to adjust each corner for a perfectly rectangular picture

Advanced 3-in-1 USB Plug'n Play instant setup — instantly project audio and video from a PC or Mac via a USB connection

Quick, convenient control — Instant Off® means no cool-down time required; it's ready to shut down when you are

Copy menu settings for multiple display installations — save on installation time; copy settings via a USB flash drive, USB cable or LAN

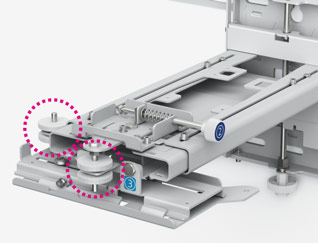

Flexible wall mount (optional)


Easily install the display with convenient adjustments, color-coded dials and on-screen prompts. Wide cut-outs facilitate cable management.


10,000H Maintenance cycle


The lamp and filter now share the same 10,000 hour replacement schedule when run in eco mode. This saves time and money by reducing the frequency of costly replacements.




5Depending on your MHL device, charging may not be supported

Easily conserve power


Epson delivers a number of features aimed towards conserving power and delivering top performance:

ECO Mode — operates the display in a lower brightness setting

Light Optimizer Mode® — adjusts the lamp brightness, based on the projected image

Auto Mode — sensor automatically adjusts the lamp brightness, based on the room environment

Sleep Mode (A/V Mute) — control your presentation; it's right at your fingertips

Direct Power Off/On — power the display on/off with the flip of a wall switch

Standby audio — use the display's internal speakers or continue to pass audio out to an external speaker, even when the display is "off" (in Standby Mode)

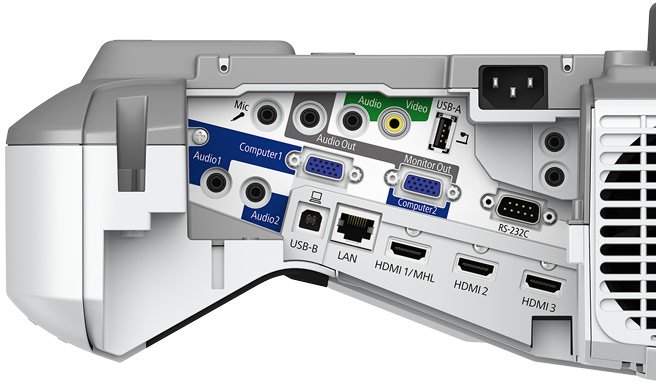

Connectivity Panel

PRODUCT NAME Epson EB-685W
PRODUCT CODE V11H744553
TECHNOLOGY
Projection Technology Epson 3LCD, 3-chip technology
Projection System RGB liquid crystal shutter projection system
LCD Panel 0.59-inch with (D9, C2 Fine)
OPTICAL
Zoom Ratio 1.0 - 1.35 (Digital Zoom)
Screen Size (Projection Distance) 60.0" to 100.0" [35.4 to 60.1cm]
74.3" screen 44.3 cm
Throw Ratio 0.28 (Zoom:Wide)
0.37 (Zoom:Tele)
Projection Lens Type No Optical Zoom / Focus (Manual)
Projection Lens F Number 2.6
Projection Lens Focal Length 3.7 mm
Focus Method Manual Focus
Offset 5.8:-2
White Light Output 3,500 lumens
Colour Light Output 3,500 lumens
Resolution WXGA
Native Aspect Ratio 16:10
Contrast Ratio 14,000:1
Keystone Correction Vertical: -3 to +3 degrees
Horizontal: -3 to +3 degrees
Colour Reproduction Up to 1.07 billion colours
Colour Processing 10 bit
CONNECTIVITY
Video I/O - Input 2x RGB D-sub 15pin
*Computer 2 in common with Monitor Out
1x RCA Composite
Video I/O - Output 1x RGB D-sub 15pin
*Computer 2 in common with Monitor Out (Output signal : Computer 1 only)
Digital Input 3x HDMI (1 supports MHL)
Audio I/O - Input 3x Stereo mini
Audio I/O - Output 1x Stereo mini
Mic I/O - Input 1x Stereo mini
Control I/O 1x RS-232C D-sub 9pin
USB I/O 1x USB Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD settings)
1x USB Type B (for USB display, mouse, K/B, Control, Firmware update, Copy OSD settings)
Network I/O: 1x RJ45 (100Mbps) Wired LAN
1x USB Type A (for Optional ELPAP10 LAN unit)
Wireless Connectivity Optional ELPAP10 Wireless LAN unit
Speaker Output Monaural: 16 W x 1
ADVANCED FEATURES
EasyMP Network Projector control and projector management via network Yes
AMX Device Discovery Yes
Crestron Integrated Partner Yes
Crestron RoomView Yes
Extron IP Link Yes
Control4 Yes
EasyMP Network Multi PC Projection Yes
Message Broadcasting Yes
Firmware update Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Copy OSD settings Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Quick Wireless Connection Yes
Wireless LAN Security WPA/WPA2-Personal (with optional Wireless LAN Unit)
Instant Off Yes
Direct Power On Yes
Auto Power On Yes (Computer1,USB-B)
Security * Kensington® - lock provision
* Padlock & Security cable hole
* Wireless LAN unit lock
* Password protect function (Power On, Network, Protection of User logo)
Colour Modes Dynamic, Presentation, Cinema, sRGB, BlackBoard
Integrated Mount Optional (ELPMB46)
GENERAL
Dimensions (excl feet) WxDxH 367 x 400 x 149mm
Weight 5.7kg
Lamp Warranty 1 Year (or 750 hours)*
Projector Warranty 3 Years
Lamp Hours 5,000 hours (Normal)
10,000 hours (ECO)
Lamp Type 250W UHE
Power Consumption: Lamp On 354W (Normal)
309W (ECO)
Power Consumption: Networked Standby 2.3W
Power Consumption: Energy Saving 0.37W
Air Filter maintenance cycle up to 10,000 hours
Fan Noise Level 35dB (Normal)
30dB (ECO)

* Whichever comes first. For more information visit Epson Projector Warranty
WHAT'S IN THE BOX
Main Unit EB-685W Projector
Power Cable Yes 5M
Remote Control Yes
Battery for Remote Control AA x 2
Feet for main unit Yes
Password Protect sticker Yes

PRODUCT OPTIONS Description
  Lamp ELPLP91
  Air Filter ELPAF49
  USB Extention cable ELPKC31
  Wall Mount ELPMB46
  Table Mount ELPMB29
  External speakers ELPSP02
  Wireless LAN ELPAP10
  Document Camera ELPDC21
  Control Box ELPCB02
