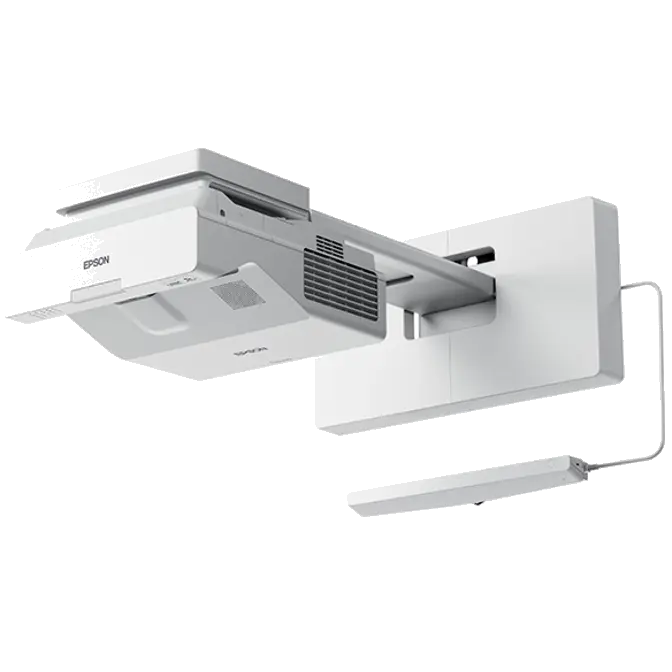

Epson EB-725Wi Interactiver 4000 ANSI WXGA Lumens Ultra Short Throw Laser Data Projector
Web ID: 28862
3 x Brighter Colours and Reliable Performance* 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.
Reinvent Your Whiteboard turn any wall or existing dry-erase board into an interactive display for more efficient lesson learning and collaboration in the room.
Break Through Laser Technology provides up to 20,000 hours of virtually maintenance free operation, with the added benefits of higher image contrast and instant ON/OFF. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: EB-725Wi
Manufacturer Website
- 3 x Brighter Colours and Reliable Performance* – 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness
- Reinvent Your Whiteboard – turn any wall or existing dry-erase board into an interactive display for more efficient lesson learning and collaboration in the room
- Break Through Laser Technology –provides up to 20,000 hours of virtually maintenance free operation, with the added benefits of higher image contrast and instant ON/OFF
- Full HD display up to 100" – for an optimal viewing experience and clear readability — over 2x as big as a 70" flat panel
- Touch–Enabled Interactivity – turn on the projector and start writing using your finger or the included pens (finger touch unit is optional)
- Easy to Use – just walk in, turn it on and start writing - no computer, software or training is required
- Capture, Save and Share – no need to transcribe meeting notes or snap a photo; easily save, print or email directly from your projector
- Wireless Device Compatibility – wirelessly display documents, files and photos from your iPad, iPhone, Chromebook and Android mobile devices with the Epson iProjection App
*Colour brightness (colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for May 2017 – April 2018.
BASIC FUNCTIONS
3LCD Technology
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCD’s true-to-life colour.
Up to 3x Brighter Colours with Epson Projectors*
Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a trade-off between white and colour brightness.
In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors*.
All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.
*Colour brightness(colour light output) in brightest mode, measured by a third-party lab in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions. Top-selling Epson 3LCD projectors versus top-selling 1-chip DLP projectors based on NPD sales data for May 2017 – April 2018.

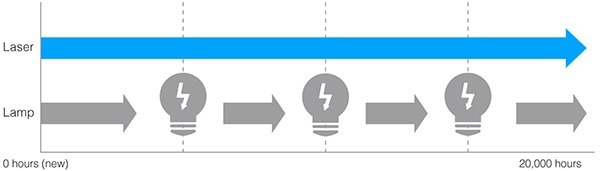

Laser Light Source
Experience astonishing quality and reliability with Epson’s laser light source technology. The newly designed laser light source and advanced electrostatic filter offers fit and forget reliability to keep maintenance to a minimum. Additionally, the laser light source is highly reliable, eliminating worry of the light burning out during important presentations.

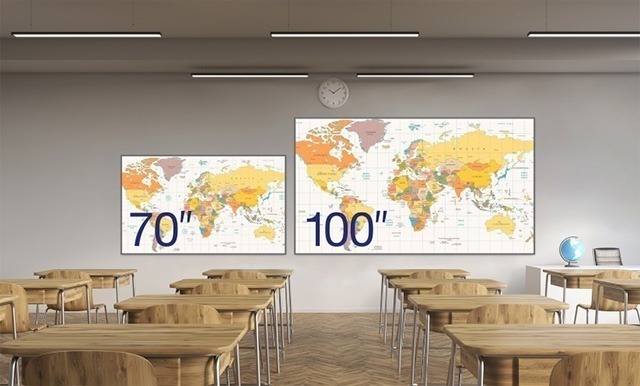

Big Screen
While conventional whiteboards and panels are limited to a pre-determined height and width, UST projectors have no such constraints. Set the size of the interactive area to fit the available space in your classroom.
Ultra Short Throw
An ultra-short-throw design eliminates many of the common problems of interactive panel, such as eye glare. With an incredibly efficient throw ratio, this model allows you to project extra-large interactive images up to 100" in 16:9 and 110” in a 16:6 aspect ratio.

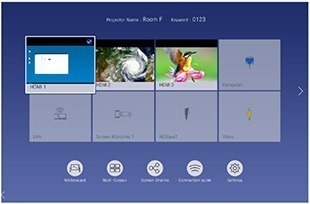

Home Screen
Get up and running in a snap with an intuitive, user-friendly home screen. Select the content source and easily access frequently-used functions such as the whiteboard tool, screen sharing and more.
EASY WIRELESS CONNECTION
Epson iProjection App
Wirelessly display content from your iOS or Android mobile devices as well as PCs, including Chromebook with the free Epson iProjection App*.
*To use Epson iProjection, the projector must be configured on a network. Epson projectors can be networked either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection.

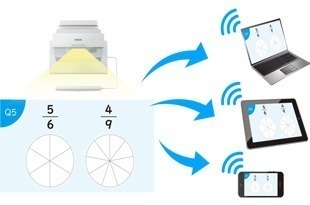

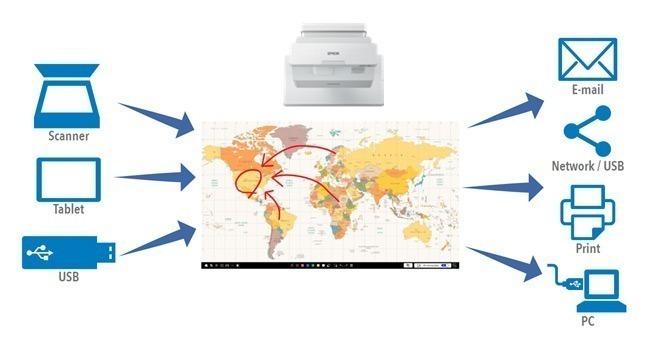

Image Sharing
Capture projected images and share them with wirelessly connected devices using the Epson iProjection App.
Moderator Function
Use the moderator function in the Epson iProjection App** to select a single moderator. Only the moderator can control the projected content.
**All the devices need to be wirelessly connected to the projector with Epson iProjection App. Moderator control is only available on Windows, macOS, iOS and Android devices.

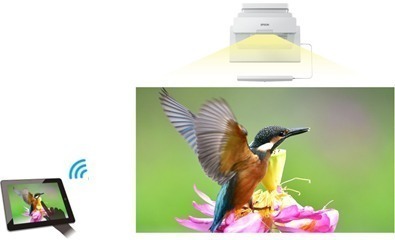

Miracast
Sharing information in the classroom has been made easier with Mircast*. Teachers can project their laptop or tablet screens without a cable connection and ensure high-resolution content can be viewed effortlessly
*Laptops or mobile devices must support Miracast.
EASY COLLABORATION
Instant Information Sharing
Whiteboard mode allows you to output the meeting results on-site in the user’s preferred format. Reduce significant time to perform tasks such as saving classroom notes to PDF (on USB memory, Network), sending email, printing, and making class materials has been shortened considerably. You can also reuse and edit data again from a previous whiteboard session that was saved to a USB memory or server.

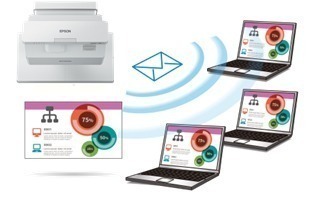

Share Notes Via Email
Share lecture notes and contents directly from the EB-725Wi via email with up to 50 participants. Connect your projector to an active directory server and you can search names and email address.

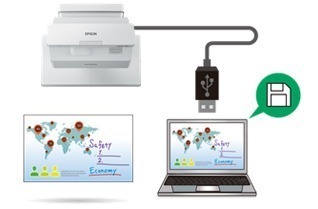

Easy to Save Notes to a PC
Simply connect to a PC via USB cable and you can save and upload any study material and whiteboard annotations directly to your PC or use optional USB wall control pad.

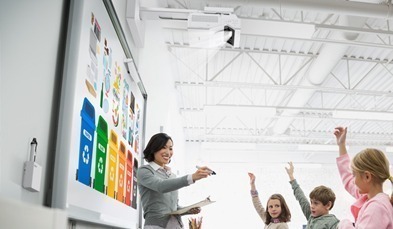

Digital made easy, without a PC or software
Transform traditional dry-erase whiteboards, plain walls and even tables into digital surfaces. Just pick up the pen and start writing. Or, use your finger — touch-enabled interactivity — to draw, share and interact with intuitive and familiar gestures. Add pages, or insert shapes and images. When you’re done, share your notes via the email, print or save functions — all without a computer.
Large screen for video conferencing
You no longer need a flat-panel display for your videoconferencing needs. Connect your videoconferencing system to the EB-725Wi and display an image as large as 100 inches.
Simultaneously display your additional content such as a webpage or presentation on one side of screen and videoconference, using the Split Screen feature.

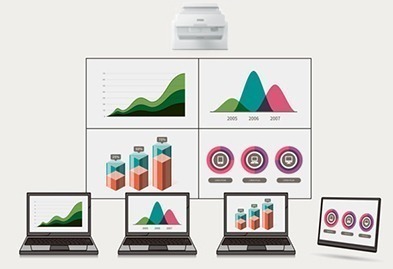

Multi-PC Projection
Epson’s Multi-PC utility with Moderator device management software allows you to simultaneously display up to four devices on the screen over network (wired or wireless), with even more users connected to the same interactive display on Standby Mode. The moderator can drag and drop participants into or out of the four quadrants and control which device screens to display. Encourage and control collaboration; it’s perfect for comparing ideas and content side by side
INTERACTIVE FUNCTIONS
Finger Touch
Use your finger* to write or draw directly on to projected images.
*Laptops or mobile devices must support Miracast.

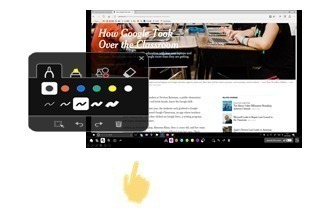

Real time drawing and PC operation
Interact with your PC automatically by connecting a USB cable from the projector to the PC. This enables PC control using the included interactive pen and even with your finger (enable it with optional FTU).
All on screen items can be rearranged and edited freely
Any image on the screen can be resized, moved and captured as if it were an object. Even if there is no writing space on the screen, written contents can be shrunk down to make room for new annotations. Simply turn off touch function when presentation only mode is required.
Whiteboard function
There is no need to worry about running out of space when writing meeting notes or importing information on the Whiteboard with up to 20 pages available at one time.
Document camera control
An Epson document camera can be controlled* from the toolbar on the screen. Adjust image zoom and focus. Save** the image or the recorded video* to an SD card as an image or movie file.
*available on ELPDC07, ELPDC13 and ELPDC21
**available on ELPDC13 and ELPDC21 only
EASY MANAGEMENT

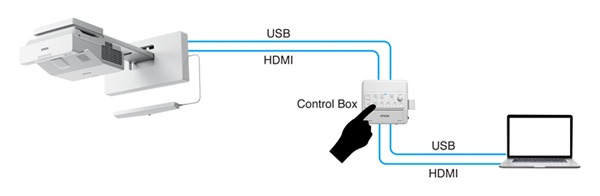

Control box - ELPCB03
Pair up the EB-725Wi with the ELPCB03 to easily turn power on/off, freely control AV mute and speaker volume, and select a device you want to project to a screen.
New wall mount - ELPMB62
The ELPMB62 wall mount can save time and cost by simplifying the installation process of the EB-725Wi. Designed for image stability and easy adjustment, it includes automated processes for screen and interactivity set up, ensuring the EB-725Wi can be up and running within a matter of moments.
The ELPMB62 wall mount is ready to integrate with a Mini PC inside the base plate, enabling powerful yet simple setup.
Finger Touch Unit Mount - ELPMB63
Wall plate for new optional finger touch unit is available for nonmagnetic surfaces.

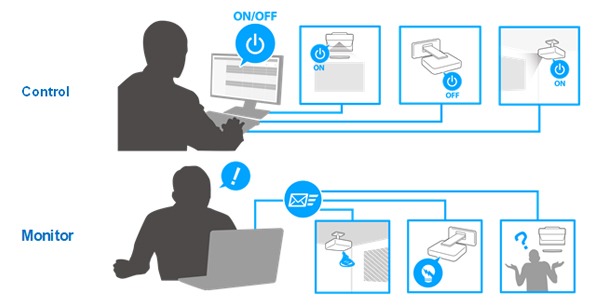

Epson Projector Management software
Manage multiple projectors with one device from a remote site. Epson Projector Management software allows you to check the status of multiple projectors through the network. You can also turn projectors on/off or set them to A/V mute simply by pressing the icon on this software. You can also schedule and execute firmware updates to connected projectors.

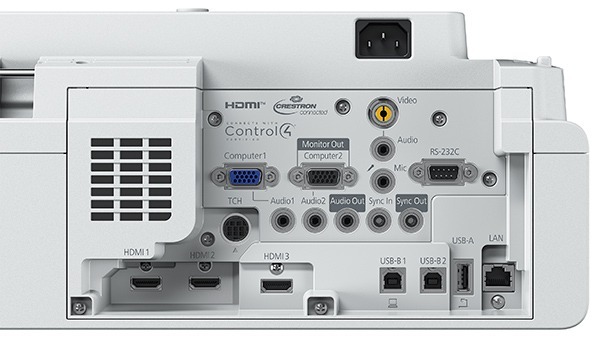

Connectivity Panel
PRODUCT NAME | EB-725Wi | ||
PRODUCT CODE | V11H998553 | ||
TECHNOLOGY | |||
---|---|---|---|
Projection System | RGB liquid crystal shutter projection system | ||
LCD Panel | 0.59-inch (C2fine) | ||
Pixel Number | 1,024,000 dots (1280 x 800) | ||
Resolution | WXGA | ||
OPTICAL | |||
Zoom | 1 – 1.35 (Digital) | ||
Screen Size | 65" to 100" [38.5 cm to 60.1 cm] 16:10 | ||
Projection Distance | 74.3" screen 44.3 cm | ||
Throw Ratio | 0.28 (Zoom:Wide) 0.37 (Zoom:Tele) | ||
Projection Lens F Number | 1.6 | ||
Projection Lens Focal Length | 3.7 mm | ||
Focus Method | Manual | ||
Lens Shift | N / A | ||
IMAGE | |||
Colour Light Output | 4,000 lumens | ||
White Light Output | 4,000 lumens | ||
Native Aspect Ratio | 16:10 | ||
Contrast Ratio | Over 2,500,000:1 | ||
Light Source | Laser | ||
Colour Reproduction | Up to 1.07 billion colours | ||
Colour Processing | 10 bit | ||
Keystone Correction | Vertical: -3 to +3 degrees Horizontal: -3 to +3 degrees | ||
Quick Corner | Yes | ||
Auto Setup | Yes | ||
Refresh Rate | 100 Hz / 120 Hz | ||
CONNECTIVITY | |||
Video I/O - Input | 2x RGB D-sub 15pin 1x RCA Composite | ||
Video I/O - Output | 1x RGB D-sub 15pin (shared) | ||
Digital Input | 3x HDMI | ||
Digital Output | N/A | ||
Audio I/O - Input | 3x Stereo mini 1 x Mic-In Stereo Mini | ||
Audio I/O - Output | 1x Stereo mini | ||
Control I/O | 1 x RS232C (D-sub 9 pin) Interactive sync Stereo Mini - 1 x In, 1 x Out Touch Unit Control - Mini DIN 8pin | ||
USB I/O | 1 x Type A (for USB Memory, USB Document Camera) 2 x Type B (Firmware update, Copy OSD Settings) | ||
Network I/O: | 1 x RJ45 (100Mbps) Wired LAN | ||
Touch Interactive | Min DIN 8pin | ||
Wireless Connectivity | Built-in Miracast Optional Wireless LAN unit (ELPAP11) | ||
Speaker Output | 1 x 16 W Stereo | ||
ADVANCED FEATURES | |||
Epson Projection Management Software | Yes | ||
Partner Standards | Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol | ||
Easy Interactive Tools | Ver 5.00 (Windows) Ver 5.01 (Mac OS) | ||
PC Interactive Tool | Multiple pen: Yes (up to 2) with Easy Interactive Tools Finger touch support: Optional (up to 6 fingers) | ||
PC Free Annotation Tool | Multiple pen support: Yes (up to 2) Finger touch support: Optional (Up to 6) Whiteboard function (Pen up to 2, optional: up to 6) Projector operation | ||
Firmware Update | Network via LAN cable, USB A via USB thumb drive, USB B via USB cable | ||
Copy OSD settings | Network via LAN cable, USB A via USB thumb drive, USB B via USB cable | ||
Wireless LAN Security | WPA2/WPA3-PSK (Personal), WPA2/WPA3-EAP (Enterprise) | ||
Instant Off | Yes | ||
Direct Power On | Yes | ||
Auto Power On | Yes | ||
Security | Padlock & Security Cable Hole Kensington® lock provision Wireless LAN Unit Lock Password protection | ||
Colour Modes | Dynamic, Presentation, Cinema, sRGB, BlackBoard | ||
Wall Mount | Optional (ELPMB62) | ||
GENERAL | |||
Dimensions (excl feet) WxDxH | 395 x 356 x 133 mm | ||
Weight | 5.8kg | ||
Projector Warranty | 3 Years | ||
Power Consumption: Projector on | 255 W | ||
Power Consumption: Standby | 2 W | ||
Noise Level (Normal / Eco) | 36 / 26 dB | ||
WHAT'S IN THE BOX | |||
Main Unit | EB-725Wi Projector | ||
Power Cable | 1.8 m | ||
USB Cable | 5 m | ||
Remote Control | Yes | ||
Battery for Remote Control | 2 x AA | ||
Easy Interactive Pen | 2 Pens | ||
Battery for Easy Interactive Pen | 2 x AA | ||
Pen Stand | Yes | ||
Pen tip (Soft) | x4 | ||
Pen tip (Hard) | x2 | ||
Corner markers for auto setup | Yes | ||
PRODUCT OPTIONS | Description | ||
V13H134A60 | Air Filter – ELPAF60 | ||
V12HA06A06 | Projector wall mount – ELPMB62 | ||
V12H007A24 | Finger Touch Unit (FTU) – ELPFT01 | ||
V12HA05A09 | FTU wall mount - ELPMB63 | ||
V12H773010 | Pen – ELPPN05A | ||
V12H774010 | Pen - ELPPN05B | ||
V12H775010 | Hard Pen Tip – ELPPS03 | ||
V12H776010 | Soft Pen Tip – ELPPS04 | ||
V12H467053 | External speakers ELPSP02 | ||
V12H731P01 | Document Camera ELPDC21 | ||
V12H005A01 | Wireless LAN Unit ELPAP11 | ||
V12H003B23 | Projector ceiling mount - ELPMB23 |
