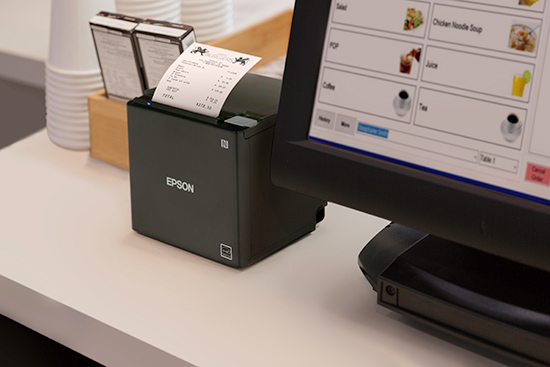

Epson TM-M30II Thermal Receipt Printer (USB / Ethernet) C31CJ27222
Web ID: 29322
For retail businesses looking to move to a tablet POS system that is affordable and easy to install, the TM-m30II tablet POS printer from Epson is the ideal choice. Thanks to ePOS-Print SDK, the TM-m30II easily communicates with web-based applications, ensuring receipts can be printed quickly and efficiently from any mobile device. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: C31CJ27222
Manufacturer Website
Sleek, stylish and compact – The ideal solution for tablet POS environments
For retail businesses looking to move to a tablet POS system that is affordable and easy to install, the TM-m30II tablet POS printer from Epson is the ideal choice. Thanks to ePOS-Print SDK, the TM-m30II easily communicates with web-based applications, ensuring receipts can be printed quickly and efficiently from any mobile device.
KEY FEATURES & BENEFITS
- Sleek, compact and stylish design
- Flexible placement – place horizontally or vertically
- NFC & Barcode pairing
- ePOS print allows direct printing from ANY mobile device without the need to install or update drivers
- Print speed of up to 250mm/sec
- Paper width max 80mm
- High-quality receipt printouts
- Prints 1D and 2D barcodes
Stylishly compact
Epson's POS expertise has resulted in unrivalled build quality and refined functionality; each component has been developed with ease of use in mind. The TM-m30II can be installed horizontally or vertically, that allows for even more positioning flexibility
Easy to install
Print directly from any smart device with ePOS-Print on both iOS and Android systems. Additional Ethernet, Bluetooth, USB and Wi-Fi connectivity are available.
Adaptable
Quickly and easily customise receipts with logos and promotional messages. Advance graphics and barcodes using high-quality, multiple greyscale printing are also fast and simple to produce.
Paper saving
Using backward paper feeding, or printing the logo when the receipt is cut, can shorten receipt lengths reducing paper costs and consumption by up to 30%.
Connectable
A single printer can be dynamically shared across multiple tablets with different interfaces.
Direct printing from web browsers
Epson's innovative ePOS-Print technology means the TM-m30II can quickly, easily and seamlessly integrate with any PC, tablet, laptop or mobile device via a Wi-Fi or Bluetooth interface. Whether the device is running iOS, Android, Windows CE or Windows mobile, direct printing from the web browser becomes possible without the need to install or update any other drivers.
Easy pairing with mobile devices
NFC connectivity (Near Field Communication), means the TM-m30II can be easily paired with tablets and smartphones. Simply bring the devices close together to make the connection. For added convenience and flexibility, pairing by QR code is also possible.
Simple set-up using Wi-Fi
The 'Easy Setting Functionality' on the TM-m30II creates an access point for connecting smart devices. Once implemented, both devices can be easily set-up and configured on a wireless network for instant use.
Optional wall mounting bracket
Mount the printer quickly and securely to any wall or vertical surface with the optional wall mounting bracket. By simply swapping just two printer covers, the TM-m30II converts from a horizontal to a vertical solution, maximising space even in the smallest retail environments.
PRINTER | ||
---|---|---|
PRINT METHOD | Direct thermal line printing | |
PRINT RESOLUTION | 203 x 203 dpi | |
PRINT FONTS (True Type) | Font A: 12 x 24 dots Font B: 10 x 17 dots Font C: 9 x 17 dots | |
COLUMN CAPACITY | 80mm: 48 col (font A), 57 col (font B), 64 col (font C) 58mm: 35 col (font A), 42 col (font B), 46 col (font C) | |
CHARACTER SIZE | Font A: 1.25 x 3.00 mm Font B: 1.13 x 3.00 mm Font C: 0.88 x 2.13 mm | |
CHARACTER SET | 95 Alphanumeric 18 International 128x43 pages extended graphics Barcode: UPC-A, UPC-E, JAN13 (EAN13), JAN8 (EAN8), CODE39, ITF, CODABAR (NW-7), CODE93, CODE128, GS1-128, GS1 DataBar Two dimensional code: PDF417, QR Code, MaxiCode, Data Matrix, Aztec, 2D GS1 DataBar, Composite Symbology | |
PRINT SPEED | Max. 250mm/sec | |
CONNECTIVITY | Ethernet, Bluetooth, Wi-Fi (USB connectivity available on Ethernet and Bluetooth models) | |
PAPER SPECIFICATION | ||
DIMENSIONS | 79.5 + 0.5 / -1.0mm (paper width 80mm) 57.5 + 0.5 / -1.0mm (paper width 58mm) | |
PAPER ROLL | Drop in | |
SENSORS | Full end sensor | |
POWER SPECIFICATION | ||
POWER CONSUMPTION | Approx. 32.8W (operating) Approx. 1.5W (standby) | |
POWER | 100 – 230V AC, 50 to 60 Hz | |
POWER SUPLY | AC Adaptor C | |
RELIABILITY | ||
MTBF | 360,000 hours | |
MCBF | 65 million lines | |
AUTOCUTTER | 1.5 million cuts | |
PRINTER OPTIONS | ||
COLOUR | Epson Black, Epson Ultra White | |
EMI STANDARD | AS/NZS CISPR22 Class A, AS/NZS 4268 | |
OVERALL DIMENSIONS | 127mm (W) x 127mm (D) x 127mm (H) | |
WEIGHT | 1.3Kg | |
WHAT'S IN THE BOX | Printer, roll paper, AC adaptor, AC cable, spacer for 58mm paper, power switch cover | |
CONFIG BUILDS | ||
C31CJ27211 | TM-m30II-211 Built-in USB, Ethernet, BT iOS,white | |
C31CJ27212 | TM-m30-212 Built-in USB, Ethernet, BT iOS, black | |
C31CJ27221 | TM-m30-221 Built-in USB, Ethernet, white | |
C31CJ27222 | TM-m30-222 Built-in USB, Ethernet, black | |
OPTIONS | ||
C32C881017 | Wall Hanging Bracket for TM-m30 / TM-m30II | |
COVERPLUS | ||
1YWM30II | Coverplus 1yr Service Pack TM-m30II | |
2YWM30II | Coverplus 2yr Service Pack TM-m30II |
