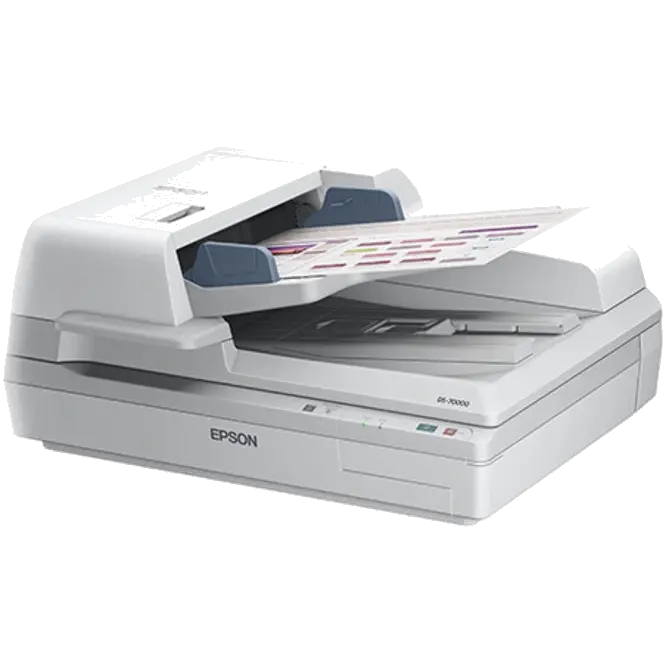

Epson WorkForce DS-70000 B11B204345 Duplex Colour A3 Flatbed Document Scanner
Web ID: 36624
Workgroups can take advantage of ultra-fast 2-sided scanning of critical business documents. Use the 200-sheet Automatic Document Feeder (ADF) to quickly scan stacks of one- or 2-sided, large-size documents. The Flatbed can easily scan drawings or maps, hard-bound books or other odd-sized items.
The WorkForce DS-70000 blazes through each task at speeds up to 70 ppm/140 ipm. And, it consistently delivers vivid colours and crisp, sharp text thanks to 600 dpi, high-resolution scanning. It even makes it easy to dropout selected colours or choose a colour and convert it to black.
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: B11B204345
Manufacturer Website
Network Adaptor – Convenient Control of the Scanner
Now, the scanner has the capability to scan to, and be controlled by, any PC that’s within the same sub-network and has Document Capture Pro software installed. Document Capture Pro comes standard with the EPSON WorkForce® DS-70000 and DS-7500.
Easy setup and operation
Connected to the Epson scanner, the Network Scan Module queries the sub-network. The LCD then displays a list of all available PCs that have Document Capture Pro installed (up to 100). Selecting the desired PC will display the job list available in Document Capture Pro.
Select and modify the job, then load the documents and press the Scan button. The documents are scanned, stored or sent according to the job parameters. The EPSON Network Scan Module features one ‘Scan’ button and a convenient LCD, which enables the user to select from many setting options.
Features/Benefits
- Scan to any PC in your workgroup without having to use the PC to control your scanner
- Scan directly to popular cloud services
- Works with the EPSON WorkForce® DS-7500, and DS-70000 document scanners
- Select from 30 user-definable scan job settings, with variables including:
– Source (Automatic Document Feeder or flatbed)
– Document size (standard sizes/custom sizes/auto)
– Image type (black-and-white/grayscale/color/auto)
– Image rotation
– Resolution (from 50 dpi up to the maximum dpi of the scanner) - Output settings
– Save-to folder
– Job separation (a stack of documents can be saved as multiple pdf files by inserting a blank page between each document in the stack or a bar-coded page separator)
– File type (pdf, pdf-a, searchable pdf, jpg, BMP [Windows only], tiff, multi -tiff, PICT [Mac only] ) and variables associated with each file type (compression settings, etc.) - Destination settings
– Popular cloud services including SharePoint ®, Google Docs® and Evernote ® (each service has its own setup screen where you can add your account settings, destination folder, etc.)
– E-mail (Document Capture Pro launches your e-mail client window with the attachment already in place, or send an e-mail to a pre defined address) FTP/Web folder
– Printer
– Any appropriate application (third-party document management software)
| WorkForce DS-70000 | B11B204345 | ||
|---|---|---|---|
| TECHNOLOGY | |||
| SCANNER TYPE | A3 Flatbed document scanner | ||
| OPTICAL RESOLUTION | Up to 600 dpi | ||
| AUTOMATIC DOCUMENT FEEDER TYPE | One-Pass Duplex | ||
| SUPPORTED FORMAT | A3 / B4 / A4 / B5 / A5 / B6 / A6 / Legal / Letter / Ledger / Executive / Check | ||
| PIXEL DEPTH LEVELS | Grey :16bit in, 8bit out Color: 48bit in, 24bit out |
||
| SCANNER | |||
| PHOTO ELECTRIC DEVICE | 4 lines colour CCD | ||
| LIGHT SOURCE | Ready Scan LED technology | ||
| OUTPUT RESOLUTION | 50 - 4800dpi, 7200dpi, 9600dpi | ||
| LCD DISPLAY | Epson Network Interface Panel (Option) | ||
| ADF MINIMUM DOCUMENT SIZE (mm) | 68mm x 120mm | ||
| ADF MAXIMUM DOCUMENT SIZE (mm) | 297mm x 2,540mm | ||
| SCAN SPEED | |||
| SCANNING SPEED A4 (200/300DPI) | 70ppm / 140ipm | ||
| SCANNING SPEED A4 COLOUR (200/300DPI) | 70ppm / 140ipm | ||
| SCANNING SPEED A4 LINE ART (200/300DPI) | 70ppm / 140ipm | ||
| SCANNING FEATURES | |||
| SUPPORTED FILE FORMAT | PDF, Searchable PDF, PDF/A, Secured PDF, JPEG, BMP, TIFF, Multi-TIFF | ||
| FILE COMPRESSION METHOD | Hardware JPEG compression, TIFF Compression (JPEG(7) , CITT G4, LZW) , PDF Compression | ||
| ADVANCED IMAGING FEATURES |
Auto rotation (Windows only) |
||
| ADVANCED DOCUMENT INTEGRATION |
Scan to email, FTP, SharePoint, Web folders, network folders, Print |
||
| PAPER HANDLING | |||
| ADF PAPER SETTING CAPACITY | 200 Pages | ||
| ADF PAPER WEIGHT | 35g/m2 ~ 128g/m2 | ||
| ADF MEDIA TYPES | Paper (laser, inkjet), Normal Paper, Recycling paper | ||
| DAILY DUTY CYCLE | 8,000 pages / day | ||
| INTERFACE | |||
| USB INTERFACE | High Speed USB 2.0 | ||
| NETWORK INTERFACE PANEL (option) | |||
| ETHERNET SETTINGS | 10BASE-T / 100BASE-TX / 1000BASE-T / Full duplex / Half duplex | ||
| PANEL TYPE | 5-line LCD with Push Scan features | ||
| PROTOCOLS SUPPORTED | TCP/IP, DHCP, DNS, HTTP, SNMP, SLP | ||
| IPv6 SUPPORT | Yes | ||
| PUSH SCAN FEATURES | Yes (Document Capture Pro/Server) | ||
| USER AUTHENTICATION | Yes (Document Capture Pro) | ||
| SOFTWARE | |||
| SOFTWARE DRIVER | Epson Scan 5.0.1 | ||
| DRIVER | WIA, Twain, ISIS (*4) | ||
| SOFTWARE | Document Capture Pro (Win only); Document Capture Pro Server (*4)(*5) Event Manager (Mac Only) EpsonNet Setup Manager & EpsonNet Config (*4)(*5) |
||
| GENERAL | |||
| OPERATING SYSTEMS | Windows® XP, Windows® XP x64, Windows® Vista, Windows Vista x64, Windows® 7, Windows® 7 x64 (*1), Windows® 8/8.1, Windows® 10, Windows® 11 Windows® Server 2003 / 2003 R2 / 2008 / 2008 R2 (*2) Terminal Service, Presentation Server 4.5, XenApp 5.0, XenApp 6.0 (*3) APPLE® MAC OS 10.4.11 or later (*3) |
||
| VOLTAGE | Universal AC Adapter AC100-240 | ||
| DIMENSIONS W x D x H | 640 x 522 x 289 mm (W x D x H) | ||
| WEIGHT | Approx. 26.9 kg | ||
| POWER CONSUMPTION | 79 Watt (Operating) - 12.5 Watt (Ready mode), 1.5 Watt (Sleep mode) | ||
| WARRANTY | |||
| WARRANTY STANDARD | On Site - 1 Year | ||
| EXTENDED WARRANTY (Additional 2 years On-site) |
3YWDS70000 | ||
