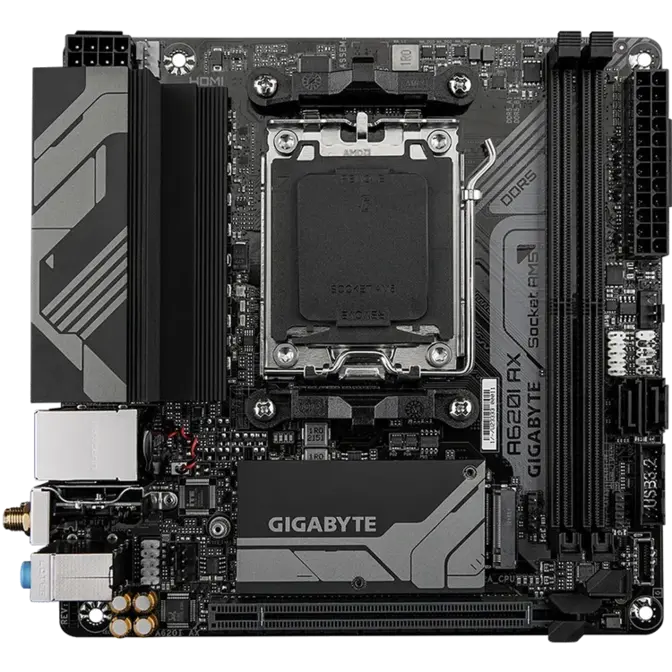

Gigabyte AM5 Mini-ITX A620I AX DDR5 Motherboard

Web ID: 42232

CPU Socket: AMD AM5 (7000 Series) || AMD AM5 (8000 Series) || AMD AM5 (9000 Series)
Form Factor: Mini-ITX
Chipset: AMD A620
Memory Type: DDR5
WiFi Standard: Wireless-AX
Bluetooth: Bluetooth
PCIe Interface: PCIe x16
Storage Interface: 1 x M.2 PCIe || 2 x SATA 6Gb/s
LAN Speed: 2.5 Gigabit
Audio: 7.1 Channel
Video Interface: 1 x HDMI || 1 x DisplayPort
USB: 2 x USB 3.2 Type-A || 1 x USB 3.2 Type-C || 3 x USB 2.0

Manufacturer Warranty: 3 Year
Manufacturer PN: A620I AX
Manufacturer Website

$259

gigabyte am5 mini-itx a620i ax ddr5 motherboard

  • CPU

    AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
    (Please refer "CPU Support List" for more information.)

  • Chipset

    AMD A620

  • Memory

    Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
    2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme
    Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

  • Onboard Graphics

    Integrated Graphics Processor with AMD Radeon™ Graphics support:
    - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
    * Support for DisplayPort 1.4 version.
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.
    (Graphics specifications may vary depending on CPU support.)

  • Audio

    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • LAN

    Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

  • Wireless Communication module

    Realtek® Wi-Fi 6E RTL8852CE
    - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.3
    - Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    (Actual data rate may vary depending on environment and equipment.)

  • Expansion Slots

    1 x PCI Express x16 slot, integrated in the CPU:
    - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
    - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

  • Storage Interface

    1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
    - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
    - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    2 x SATA 6Gb/s connectors
    RAID 0 and RAID 1 support for NVMe SSD storage devices
    RAID 0 and RAID 1 support for SATA storage devices

  • USB

    CPU:
    - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
    - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    - 1 x USB 2.0/1.1 port on the back panel
    Chipset:
    - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
    - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

  • Internal I/O Connectors

    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    1 x addressable LED strip header
    1 x RGB LED strip header
    1 x M.2 Socket 3 connector
    2 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x speaker header
    1 x USB Type-C® header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x Clear CMOS jumper
    1 x chassis intrusion header

  • Back Panel Connectors

    1 x DisplayPort
    1 x HDMI port
    1 x USB Type-C® port, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 2 Type-A port (red)
    1 x USB 3.2 Gen 1 port
    3 x USB 2.0/1.1 ports
    1 x Q-Flash Plus button
    1 x RJ-45 port
    2 x SMA antenna connectors (2T2R)
    3 x audio jacks

  • I/O Controller

    iTE® I/O Controller Chip

  • H/W Monitoring

    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the fan you install.

  • BIOS

    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    Support for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus

  • Bundled Software

    Norton® Internet Security (OEM version)
    LAN bandwidth management software

  • Operating System

    Support for Windows 11 64-bit
    Support for Windows 10 64-bit

  • Form Factor

    Mini-ITX Form Factor; 17.0cm x 17.0cm
