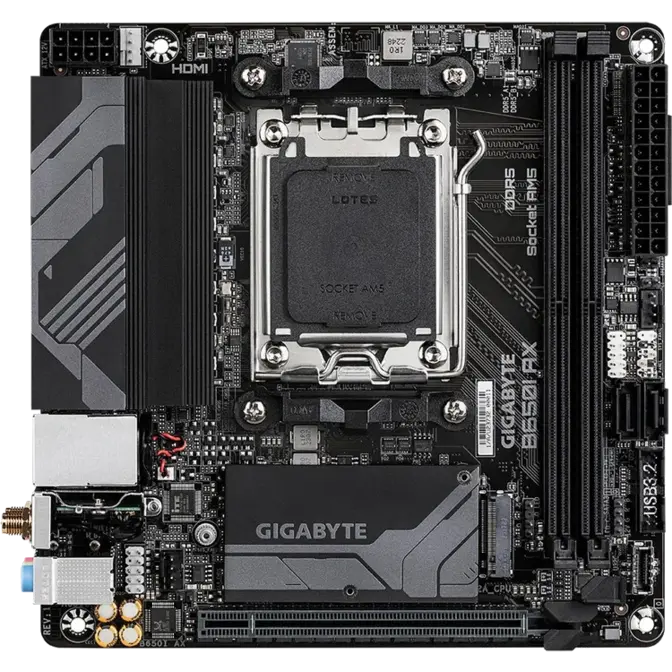

Gigabyte AM5 Mini-ITX B650I AX DDR5 Motherboard


Gigabyte AM5 Mini-ITX B650I AX DDR5 Motherboard

Web ID: 42231

CPU Socket: AMD AM5 (7000 Series) || AMD AM5 (8000 Series) || AMD AM5 (9000 Series)
Form Factor: Mini-ITX
Chipset: AMD B650
Memory Type: DDR5
WiFi Standard: Wireless-AX
Bluetooth: Bluetooth
PCIe Interface: PCIe x16
Storage Interface: 1 x M.2 PCIe || 2 x SATA 6Gb/s
LAN Speed: 2.5 Gigabit
Audio: 7.1 Channel
Video Interface: 1 x HDMI || 1 x DisplayPort
USB: 2 x USB 3.2 Type-A || 1 x USB 3.2 Type-C || 3 x USB 2.0
CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: B650I AX
GTIN: 889523040003
Manufacturer Website

$279SAVE $20
 Add to cart
In Stock
 Compare
 Wish List
 Question

gigabyte am5 mini-itx b650i ax ddr5 motherboard

  • CPU

    1. AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors
    (Please refer "CPU Support List" for more information.)

  • Chipset

    1. AMD B650

  • Memory

    1. Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
    2. 2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

  • Onboard Graphics

    Integrated Graphics Processor:
    1. 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
      * Support for DisplayPort 1.4 version.
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.1 version and HDCP 2.3.
      ** Support native HDMI 2.1 TMDS compatible ports.
    (Graphics specifications may vary depending on CPU support.)

  • Audio

    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • LAN

    1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

  • Wireless Communication module

    Realtek® Wi-Fi 6E RTL8852CE
    1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    2. BLUETOOTH 5.3
    3. Support for 11ax 160MHz wireless standard
    (Actual data rate may vary depending on environment and equipment.)

  • Expansion Slots

    1 x PCI Express x16 slot, integrated in the CPU:
    1. AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
    2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
      * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

  • Storage Interface

    1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
    1. AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
    2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    2 x SATA 6Gb/s connectors
    RAID 0 and RAID 1 support for NVMe SSD storage devices
    RAID 0 and RAID 1 support for SATA storage devices

  • USB

    CPU:
    1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
    2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    3. 1 x USB 2.0/1.1 port on the back panel
    Chipset:
    1. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    2. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
    3. 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

  • Internal I/O Connectors

    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 2 x system fan headers
    5. 1 x addressable LED strip header
    6. 1 x RGB LED strip header
    7. 1 x M.2 Socket 3 connector
    8. 2 x SATA 6Gb/s connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x speaker header
    12. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
    13. 1 x USB 3.2 Gen 1 header
    14. 1 x USB 2.0/1.1 header
    15. 1 x Clear CMOS jumper
    16. 1 x chassis intrusion header

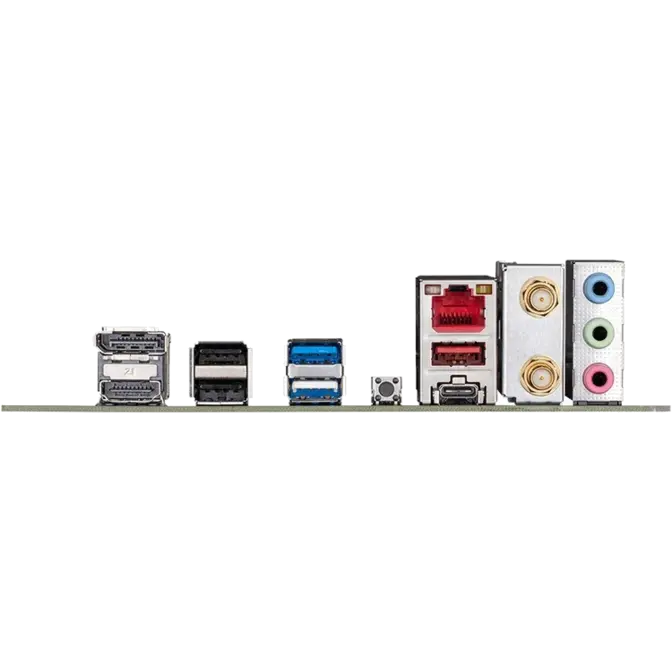

  • Back Panel Connectors

    1. 1 x DisplayPort
    2. 1 x HDMI port
    3. 1 x USB Type-C® port, with USB 3.2 Gen 1 support
    4. 1 x USB 3.2 Gen 2 Type-A port (red)
    5. 1 x USB 3.2 Gen 1 port
    6. 3 x USB 2.0/1.1 ports
    7. 1 x Q-Flash Plus button
    8. 1 x RJ-45 port
    9. 2 x SMA antenna connectors (2T2R)
    10. 3 x audio jacks

  • I/O Controller

    1. iTE® I/O Controller Chip

  • H/W Monitoring

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Water cooling flow rate detection
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the fan you install.

  • BIOS

    1. 1 x 256 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    1. Support for GIGABYTE Control Center (GCC)
      * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    2. Support for Q-Flash
    3. Support for Q-Flash Plus

  • Bundled Software

    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software

  • Operating System

    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit

  • Form Factor

    1. Mini-ITX Form Factor; 17.0cm x 17.0cm
