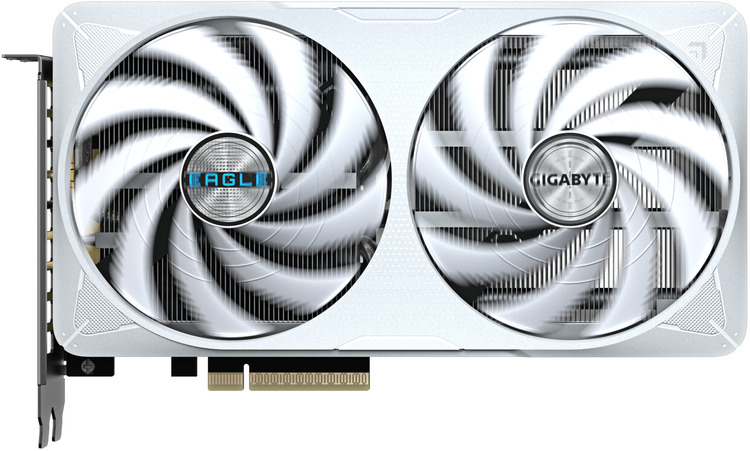

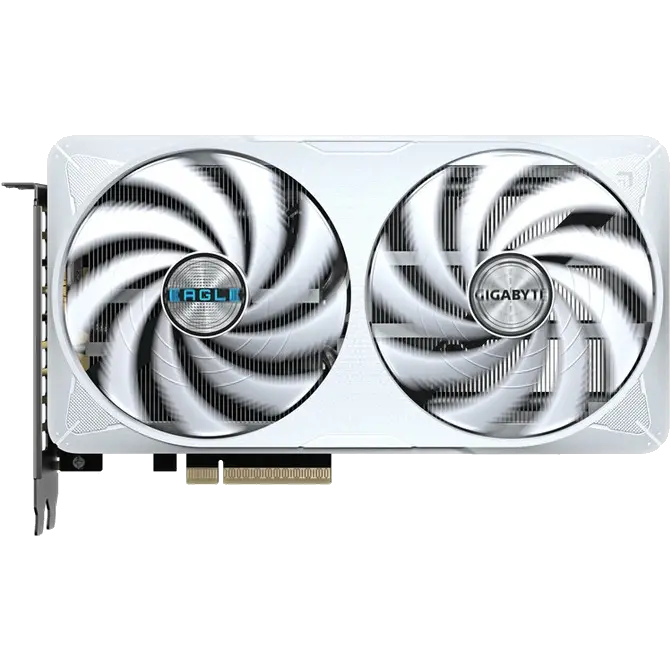

Gigabyte GeForce RTX 5060 Ti EAGLE OC ICE 8G GV-N506TEAGLEOC ICE-8GD Graphics Card
Web ID: 45449
NVIDIA Series: NVIDIA RTX 5060 Ti
VRAM Size: 8GB GDDR7 28Gbps
Display Output: 1 x HDMI Out || 3 x DisplayPort Out
Max. Displays: 4 Displays
PCIe Size: PCIe 5.0x8
GPU Technology: DLSS 4
Minimum PSU: 650 Watt
GPU Length: 215mm
ONLY WHILE STOCKS LAST! CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: N506TEAGLEOC ICE-8GD
$829
| Model Name | GV-N506TEAGLEOC ICE-8GD |
| Model Ver | 1.0 |
| Tiptop Name | 9VN506TEI8-00-G10 |
| Marketing Name | GeForce RTX 5060 Ti EAGLE OC ICE 8G |
| GPU | RTX 5060 Ti |
| Core Clock (MHz) | 2617 |
| Cuda Core | TBD |
| Mem Clock (MHz) | 28000 |
| Mem Size (GB) | 8 |
| Mem Bus (bit) | 128 |
| Mem Type | 512 M x32 GDDR7 |
| Memory (pcs) | 4 |

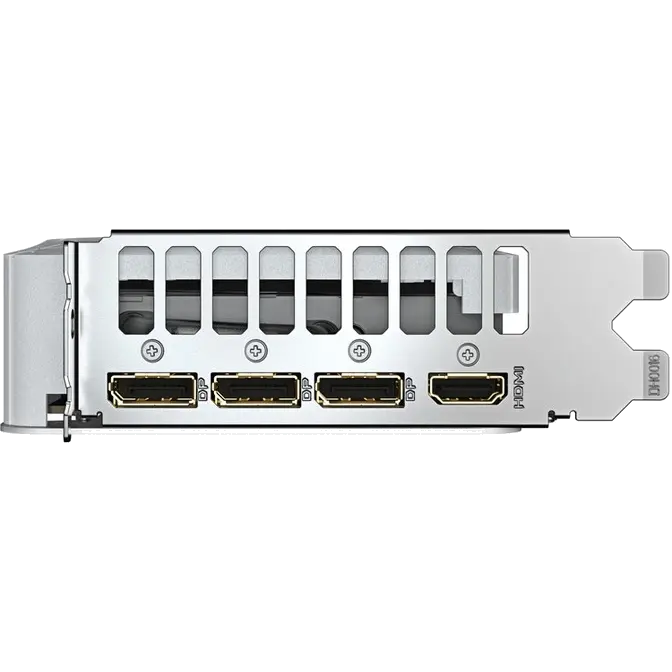

| I/O | HDMI(Gold Plated)x1, DP(Gold Plated)x3 |
| DirectX / OpenGL | DirectX 12 / OpenGL 4.6 |
| Card Interface | PCI Express 5.0 x8 |
| Board Form | ATX 2 slot |
| Fan/Heat Sink | WINDFORCE 2X |
| System PSU Limitation (W) | 650 |
| Tools | GIGABYTE CONTROL CENTER |
| GPU-TDP (W) | 135 (Default) |
| Total Graphics Power-TGP (W) | 180 (Default) |
| PCB Size (mm) | 98x111 |
| Card Size (mm) | H=40 L=215 W=122 |
| Warranty | 3 Years |
| EAN Code | 4719331356095 |
| UPC Code | 889523049358 |
| Power Connector | 8 Pin |
