Gigabyte Radeon RX 7600 Gaming OC 8G Graphics Card GV-R76GAMING-OC-8GD
Web ID: 36098
Radeon RX7600 Series
Integrated with 8GB GDDR6 128-bit memory interface

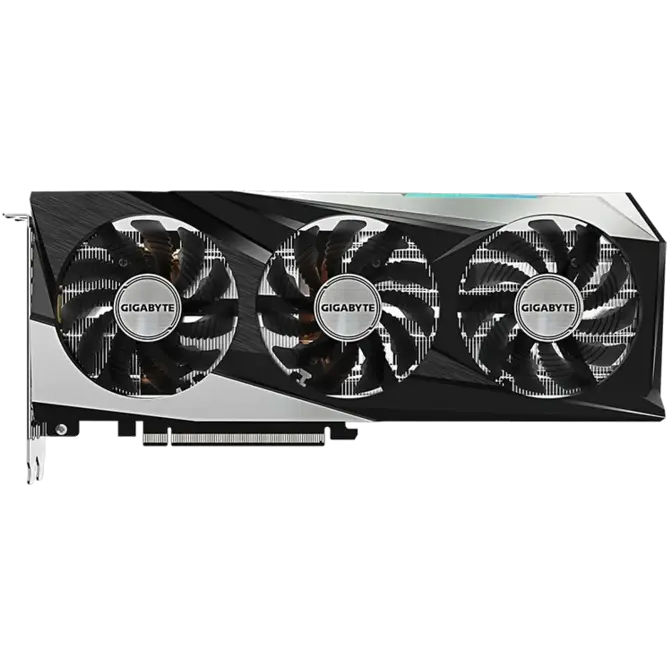

WINDFORCE cooling system
Boost Clock : up to 2755 MHz (Reference card: 2655 MHz)
Game Clock : up to 2355 MHz (Reference card: 2250 MHz)
Manufacturer Warranty: 3 Year
Manufacturer PN: GV-R76GAMING-OC-8GD
GTIN: 889523038055
Manufacturer Website
-
Graphics Processing
Radeon™ RX 7600
-
Core Clock
Boost Clock* : up to 2755 MHz (Reference card: 2655 MHz)
Game Clock* : up to 2355 MHz (Reference card: 2250 MHz) -
Stream Processors
2048
-
Memory Clock
18 Gbps
-
Memory Size
8 GB
-
Memory Type
GDDR6
-
Memory Bus
128 bit
-
Card Bus
PCI-E 4.0
-
Digital max resolution
7680x4320
-
Multi-view
4
-
Card size
L=282 W=115 H=50 mm
-
PCB Form
ATX
-
DirectX
12 Ultimate
-
OpenGL
4.6
-
Recommended PSU
550W
-
Power Connectors
8 pin*1
-

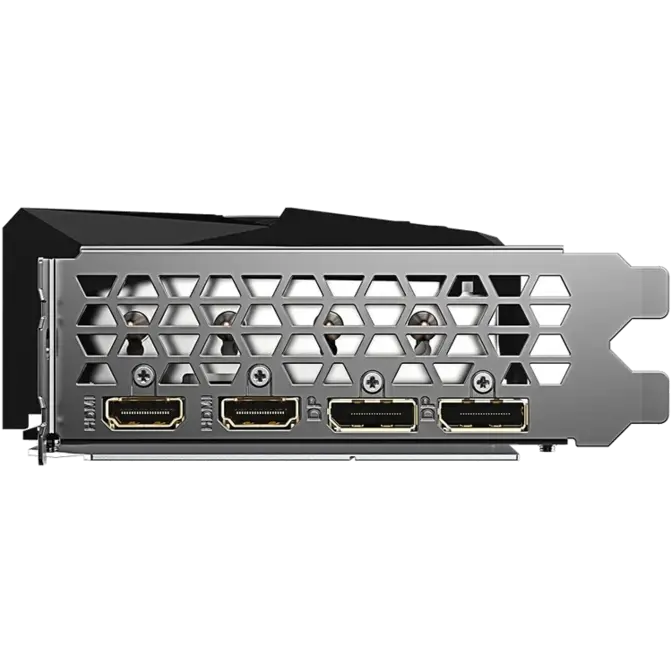

Output
DisplayPort 1.4a *2
HDMI 2.1a *2 -
Accessories
Quick guide
-
Note
* “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. GD-147
