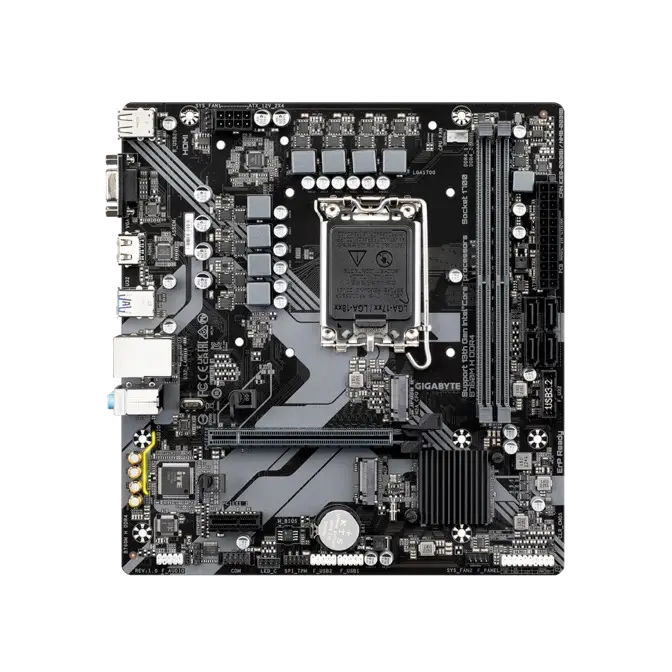

Gigabyte S1700 MicroATX B760M H DDR4 Motherboard

Web ID: 36027

CPU Socket: Intel S1700 || For 12th/13th Gen Processors (Requires BIOS update for 14th Gen Compatibility)
Form Factor: Micro-ATX
Chipset: Intel B760 Chipset
Compatible Memory: DDR4 || 2 x DIMM Sockets
Wi-Fi: No WiFi
PCIe Sockets: 1 x PCIe 4.0 x16 || 1 x PCIe 3.0 x1
M.2 Sockets: 2 x M.2 PCIe 4.0
SATA Ports: 4 x SATA 6Gb/s
Ethernet Port: 1 x RJ45
Audio Ports: 3 x 3.5mm
Video Ports: 1 x HDMI || 1 x VGA
Rear USB Ports: 4 x USB 3.2 Type-A || 2 x USB 2.0
Internal USB Ports: 1 x USB 3.2 Gen 1 Header || 2 x USB 2.0 Header

Manufacturer Warranty: 3 Year
Manufacturer PN: B760M H
GTIN: 889523037232
Manufacturer Website

$139

gigabyte s1700 micro-atx b760m h ddr4 motherboard

  • CPU

    LGA1700 socket: Support for the 13th and 12thGeneration Intel® Core™, Pentium® Gold and Celeron® Processors
    L3 cache varies with CPU
    (Please refer to "CPU Support List" for more information.)

  • Chipset

    Intel® B760 Express Chipset

  • Memory

    Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
    2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)

  • Onboard Graphics

    Integrated Graphics Processor-Intel® HD Graphics support:
    - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.0 version and HDCP 2.3.


    (Graphics specifications may vary depending on CPU support.)
  • Audio

    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

    Support for S/PDIF Out
  • LAN

    Realtek® GbE LAN chip (1 Gbps/100 Mbps)

  • Expansion Slots

    CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    Chipset:
    - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

  • Storage Interface

    CPU:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    - 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

  • USB

    Chipset:
    - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

  • Internal I/O Connectors

    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    1 x RGB LED strip header
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    1 x serial port header
    1 x Clear CMOS jumper

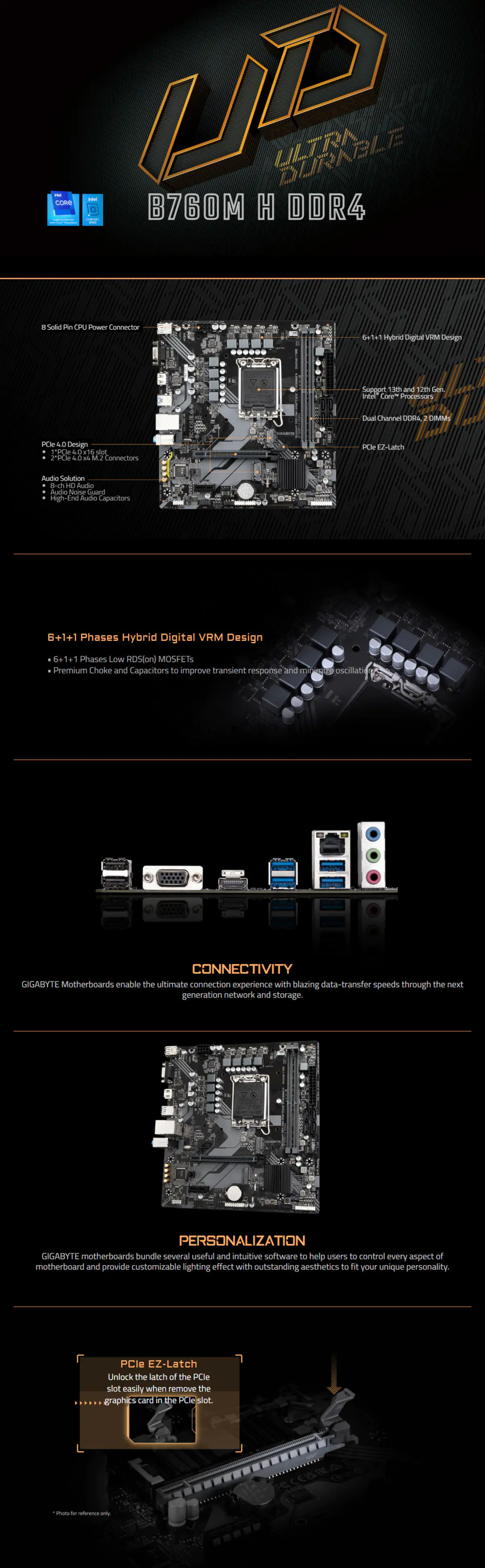

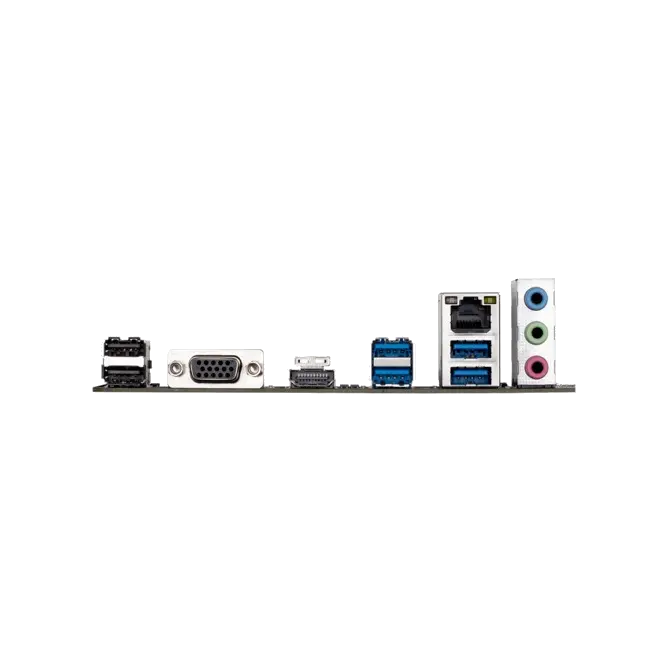

  • Back Panel Connectors

    2 x USB 2.0/1.1 ports
    1 x D-Sub port
    1 x HDMI port
    4 x USB 3.2 Gen 1 ports
    1 x RJ-45 port
    3 x audio jacks

  • I/O Controller

    iTE® I/O Controller Chip

  • H/W Monitoring

    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan speed control function is supported will depend on the cooler you install.

  • BIOS

    1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Unique Features

    Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


    Support for Q-Flash
  • Bundled Software

    Norton® Internet Security (OEM version)
    LAN bandwidth management software

  • Operating System

    Support for Windows 11 64-bit
    Support for Windows 10 64-bit

  • Form Factor

    Micro ATX Form Factor; 23.0cm x 21.5cm
