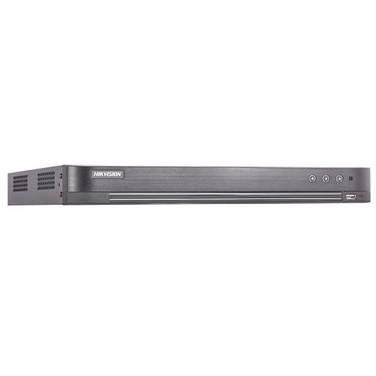

Hikvision DS-7216HUHI-K2 16CH HD-TVI DVR - Includes 3TB Hard Drive
Web ID: 25317
Hikvision DS-7216HUHI-K2 16CH Turbo HD 4.0 DVR - Includes 3TB Hard Drive ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: DS-7216HUHI-K2
Manufacturer Website
$981

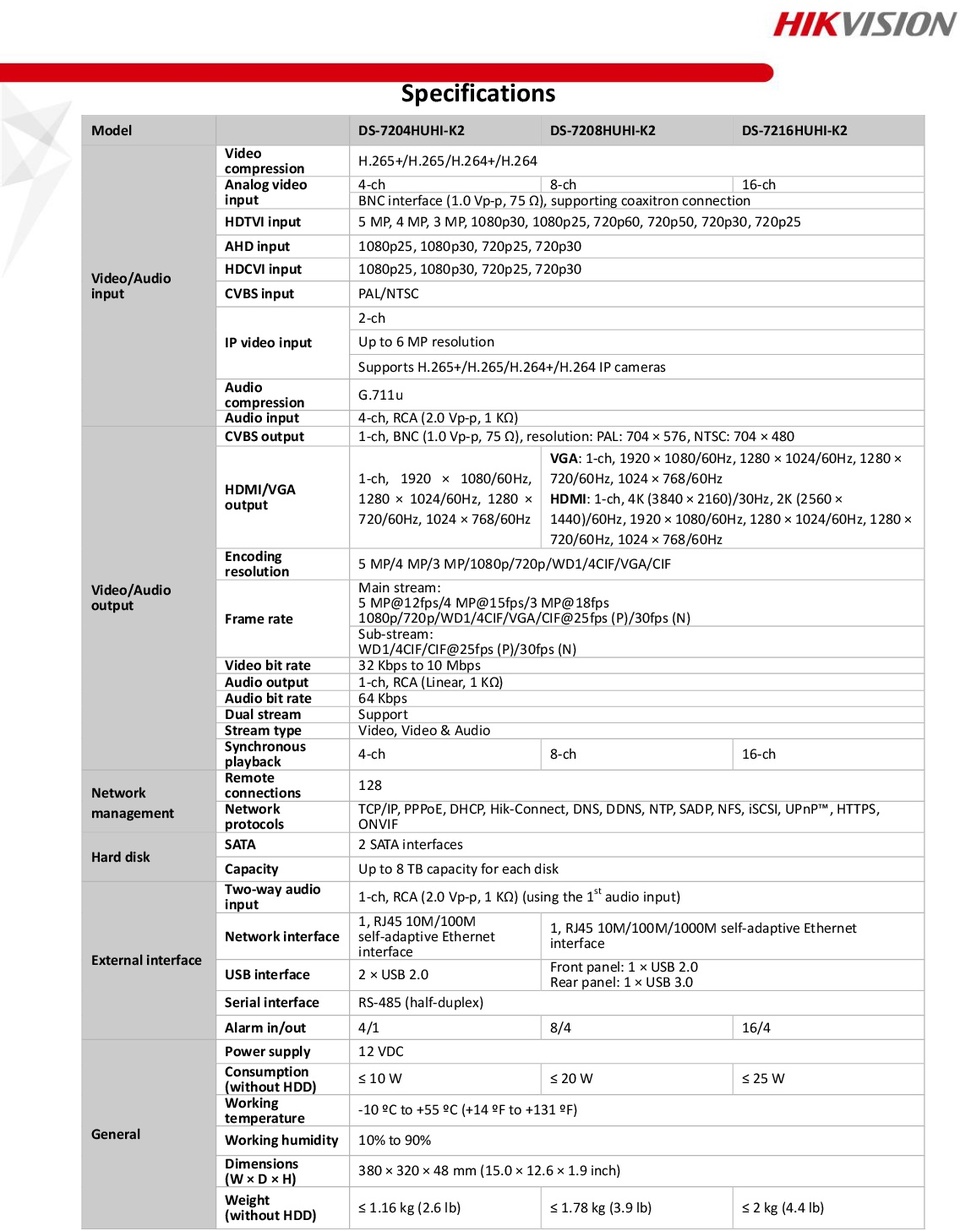

| Video/Audio Input | ||
|---|---|---|
| Audio Input: | 16-ch | |
| Analog and HD-TVI video input: | 16-ch,BNC interface (1.0Vp-p, 75 Ω)connection | |
| Supported camera types: | Support HDTVI input: 5MP,4MP,3MP,1080P/25Hz, 1080P/30Hz,720P/25Hz, 720P/30Hz, 720P/50Hz, 720P/60Hz, Support AHD input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz, 720P/30Hz Support CVBS input | |
| Video Input Interface: | BNC (1.0 Vp-p, 75Ω) | |
| Audio Compression: | G.711u | |
| Audio Input Interface: | 4-ch, RCA (2.0 Vp-p, 1 KΩ) | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) | |
| Video/Audio Output | ||
|---|---|---|
| CVBS Output: | 1-ch,BNC(1.0Vp-p,75Ω),resolution:PAL:704x576,NTSC:704x480 | |
| Frame Rate: | Main stream: 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) | |
| Video Bit Rate: | 32 Kbps-10 Mbps | |
| Stream Type: | Video/Video&Audio | |
| Two-way Audio: | 1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) | |
| Audio Output: | 1-ch RCA(Linear, 1kΩ) | |
| Audio Bit Rate: | 64kbps | |
| Dual Stream: | Support | |
| Synchronous Playback: | 16-ch | |
| Network management | ||
|---|---|---|
| Remote connections: | 128 | |
| Network protocols: | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
| Hard Disk Driver | ||
|---|---|---|
| Interface Type: | 2 SATA Interfaces | |
| External Interface | ||
|---|---|---|
| Network Interface: | 1; 10M / 100M / 1000M self-adaptive Ethernet interface | |
| USB Interface: | 1 USB 2.0 Interface & 1 USB 3.0 Interface | |
| Serial Interface: | 1; standard RS-485 serial interface, half-duplex | |
| Alarm Input: | 16-ch | |
| Alarm Output: | 4-ch | |
| General | ||
|---|---|---|
| Power Supply: | 12 VDC | |
| Consumption: | ≤ 25W(without hard disks) | |
| Working Temperature: | -10 ºC to +55 ºC (14 ºF to 131 ºF) | |
| Working Humidity: | 10% to 90% | |
| Dimensions: | 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) | |
| Weight: | ≤ 2 kg (4.4 lb) | |
