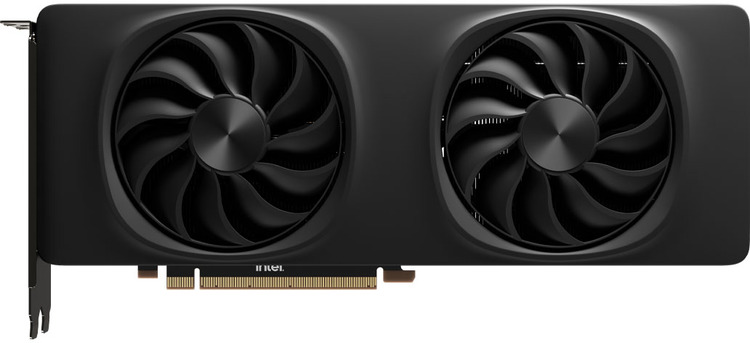

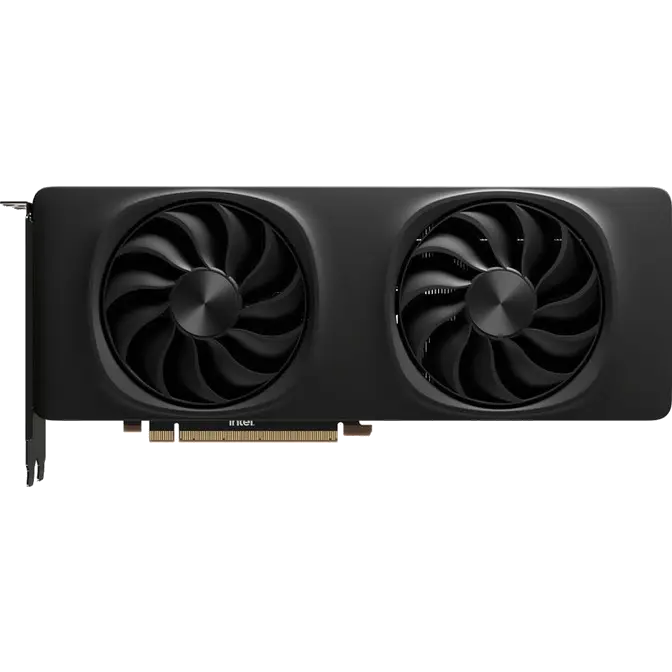

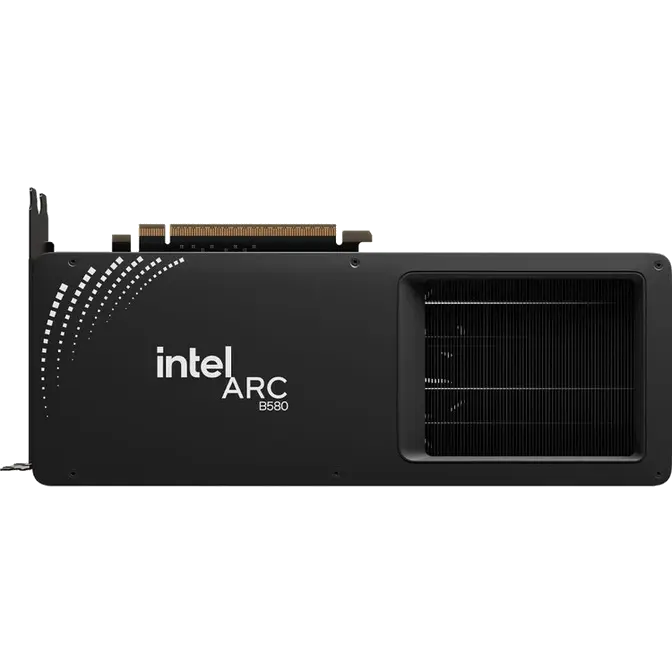

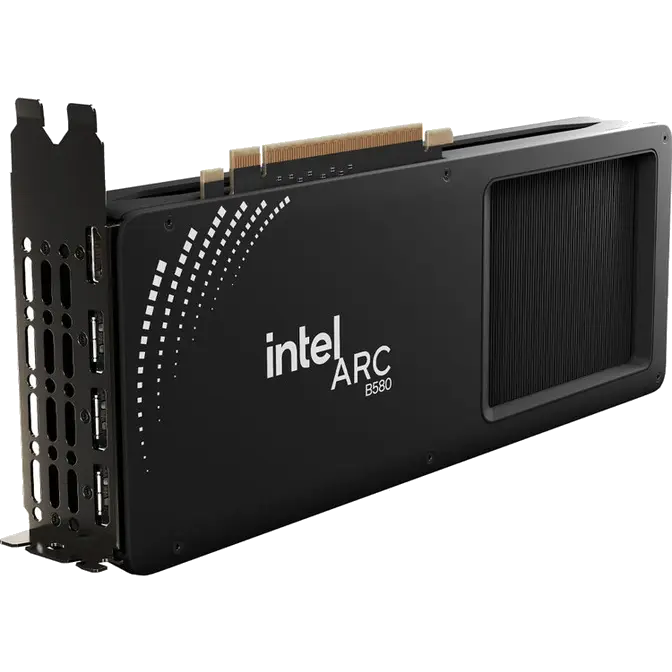

Intel Arc B580 Battlemage Limited Edition 12GB Graphics Card
Web ID: 44068
Chipset Manufacturer: Intel Chipset
Product Line: Intel Arc B580 Graphics (Code Name: Battlemage)
Graphics Clock 2670MHz
Video Memory: 12GB GDDR6 VRAM
Video Interface: HDMI || DisplayPort
CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: 31P06HB0BA
GTIN: 735858549288
Manufacturer Website
Product Collection
Model Number
B580
Code Name
Microarchitecture
Xe2
Lithography Type
TSMC N5
Vertical Segment
Desktop
Marketing Status
Launched
Launch Date
Q4'24
Embedded Options Available
No
GPU Specifications
Xe-cores
20
Render Slices
5
Ray Tracing Units
20
Intel® Xe Matrix Extensions (Intel® XMX) Engines
160
Xe Vector Engines
160
Graphics Clock
2670 MHz
GPU Peak TOPS (Int8)
233
TBP
190 W
PCI Express Configurations ‡
PCI Express 4.0 x8
Device ID
0xE20B
Memory Specifications
Memory
12 GB GDDR6
Graphics Memory Interface
192 bit
Graphics Memory Bandwidth
456 GB/s
Graphics Memory Speed
19 Gbps
I/O Specifications
# of Displays Supported‡
4
Graphics Output‡
HDMI* 2.1, DP2.1 up to UHBR 13.5, DP2.1 up to UHBR 10
HDMI Variable Refresh Rate (VRR)
Yes
VESA Adaptive Sync
Yes
Media Profiles
HDR10, HDR10+ Gaming, Dolby Vision
Max Resolution (HDMI)‡
7680 x 4320@120Hz
Max Resolution (DP)‡
7680 x 4320@60Hz
Features
H.264 Hardware Encode/Decode
Yes
H.265 (HEVC) Hardware Encode/Decode
Yes
AV1 Encode/Decode
Yes
VP9 Bitstream & Decoding
Yes
Supported Technologies
Ray Tracing
Yes
oneAPI Support ?
Yes
OpenVINO™ Support
Yes
DirectX* Support
DirectX 12 Ultimate
Vulkan* Support
1.3
OpenGL* Support
Up to 4.6
OpenCL* Support
3.0
Multi-Format Codec Engines
2
Intel® Extension for PyTorch* (IPEX) Support
Yes
Intel® Xe Super Sampling (XeSS) Support
Yes
Intel Reference Card Attributes
Dimensions (Length x Width)
272 x 115 mm
Slots
2
Weight
779 G
Minimum Power Supply Unit
600 W
Power Connectors
1 x 8-pin
