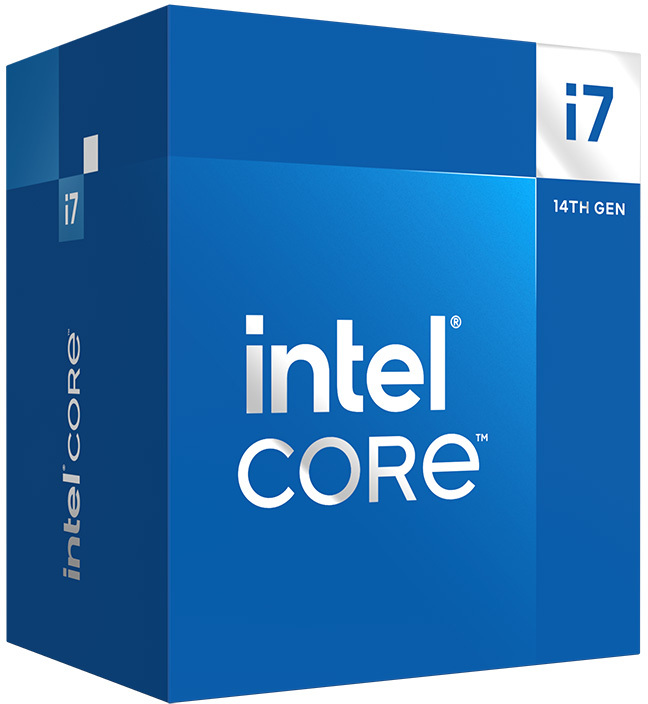

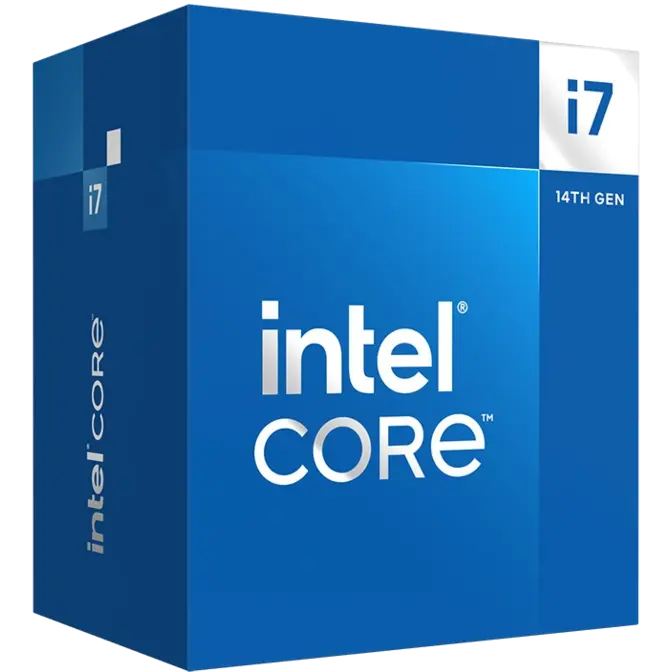

Intel S1700 Core i7 14700 20 Core CPU BX8071514700
Web ID: 38127
Product Line: 14th Generation Intel Core i7-14700 | Raptor Lake (Refresh)
Turbo Clock Speed: Up to 5.4GHz on Performance-Cores || Up to 4.2GHz on Efficient-Cores
CPU Socket: S1700
# of CPU Cores: 8 Performance-Cores || 12 Efficient-Cores
# of CPU Threads: 16 on Performance-Cores || 12 on Efficient-Cores
Cache L2 Cache: 28MB || Intel Smart Cache (L3 Cache): 33MB
Memory Support: DDR4/DDR5 (Dual Channel)
Integrated Graphics: Intel UHD Graphics 770 CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: BX8071514700
Manufacturer Website
Game Without Compromise
Go beyond with Intel Core Processors. Be everything you want to be, in-game and out, with optimised performance and new features that let you play harder and work smarter.
Designed for the needs of today's gamers.
Newly optimised hybrid architecture and industry-leading technology enable you to go beyond gaming and creation. From processing in-game to advancing in real life, Intel empowers you to be your best self.
Performance Cores
Unleashes the capability to optimise the latest games and gaming software.
Efficient Cores
Provides multitasking power to work, play, and most importantly game together.
Overclock with Ease
Customise your performance to meet your precise needs with the Intel Extreme Tuning Utility.
Game Smarter
Expanded Intel Smart Cache sizes accelerate your processor for stable gameplay and higher, more consistent FPS.
Realise your dream build
Intel Core processors offer versatility with support for:
- 600 or 700 series motherboards
- DDR4 or DDR5 memory
- Up to PCIe Gen 5 components
- Up to Wi-Fi 7 networks
Power your imagination
Stream your favourite game, edit videos or podcasts, or make something beautiful.
- Intel Thread Director dynamically assigns tasks so you can do it all without slowing down
- Performance hybrid architecture can easily run streaming software in the background while prioritising gameplay.
| Essentials | |
| Product Collection | Intel® Core™ i7 Processors (14th gen) |
| Code Name | Products formerly Raptor Lake |
| Vertical Segment | Desktop |
| Processor Number | i7-14700 |
| Lithography | Intel 7 |
| Use Conditions | PC/Client/Tablet | Workstation |
| CPU Specifications | |
| Total Cores | 20 |
| # of Performance-cores | 8 |
| # of Efficient-cores | 12 |
| Total Threads | 28 |
| Max Turbo Frequency | 5.4 GHz |
| Intel® Turbo Boost Max Technology 3.0 Frequency ‡ | 5.4 GHz |
| Performance-core Max Turbo Frequency | 5.3 GHz |
| Efficient-core Max Turbo Frequency | 4.2 GHz |
| Performance-core Base Frequency | 2.1 GHz |
| Efficient-core Base Frequency | 1.5 GHz |
| Cache | 33 MB Intel® Smart Cache |
| Total L2 Cache | 28 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 219 W |
| Supplemental Information | |
| Marketing Status | Launched |
| Launch Date | Q1'24 |
| Embedded Options Available | Yes |
| Memory Specifications | |
| Max Memory Size (dependent on memory type) | 192 GB |
| Memory Types | Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s |
| Max # of Memory Channels | 2 |
| Max Memory Bandwidth | 89.6 GB/s |
| ECC Memory Supported ‡ | Yes |
| GPU Specifications | |
| GPU Name‡ | Intel® UHD Graphics 770 |
| Graphics Base Frequency | 300 GHz |
| Graphics Max Dynamic Frequency | 1.6 GHz |
| Graphics Output | eDP 1.4b | DP 1.4a | HDMI 2.1 |
| Execution Units | 32 |
| Max Resolution (HDMI)‡ | 4096 x 2160 @ 60Hz |
| Max Resolution (DP)‡ | 7680 x 4320 @ 60Hz |
| Max Resolution (eDP - Integrated Flat Panel)‡ | 5120 x 3200 @ 120Hz |
| DirectX* Support | 12 |
| OpenGL* Support | 4.5 |
| OpenCL* Support | 3 |
| Multi-Format Codec Engines | 2 |
| Intel® Quick Sync Video | Yes |
| Intel® Clear Video HD Technology | Yes |
| # of Displays Supported ‡ | 4 |
| Device ID | 0xA780 |
| Expansion Options | |
| Direct Media Interface (DMI) Revision | 4 |
| Max # of DMI Lanes | 8 |
| Scalability | 1S Only |
| PCI Express Revision | 5.0 and 4.0 |
| PCI Express Configurations ‡ | Up to 1x16+4 | 2x8+4 |
| Max # of PCI Express Lanes | 20 |
| Package Specifications | |
| Sockets Supported | FCLGA1700 |
| Max CPU Configuration | 1 |
| Thermal Solution Specification | PCG 2020C |
| TJUNCTION | 100°C |
| Package Size | 45.0 mm x 37.5 mm |
| Advanced Technologies | |
| Intel® Gaussian & Neural Accelerator | 3 |
| Intel® Thread Director | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Turbo Boost Max Technology 3.0 ‡ | Yes |
| Intel® Turbo Boost Technology ‡ | 2 |
| Intel® Hyper-Threading Technology ‡ | Yes |
| Intel® 64 ‡ | Yes |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 |
| Idle States | Yes |
| Enhanced Intel SpeedStep® Technology | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Security & Reliability | |
| Intel® Standard Manageability (ISM) ‡ | Yes |
| Intel® Control-Flow Enforcement Technology | Yes |
| Intel® AES New Instructions | Yes |
| Secure Key | Yes |
| Intel® OS Guard | Yes |
| Execute Disable Bit ‡ | Yes |
| Intel® Boot Guard | Yes |
| Mode-based Execute Control (MBEC) | Yes |
| Intel® Virtualization Technology (VT-x) ‡ | Yes |
| Intel® Virtualization Technology for Directed I/O (VT-d) ‡ | Yes |
| Intel® VT-x with Extended Page Tables (EPT) ‡ | Yes |
