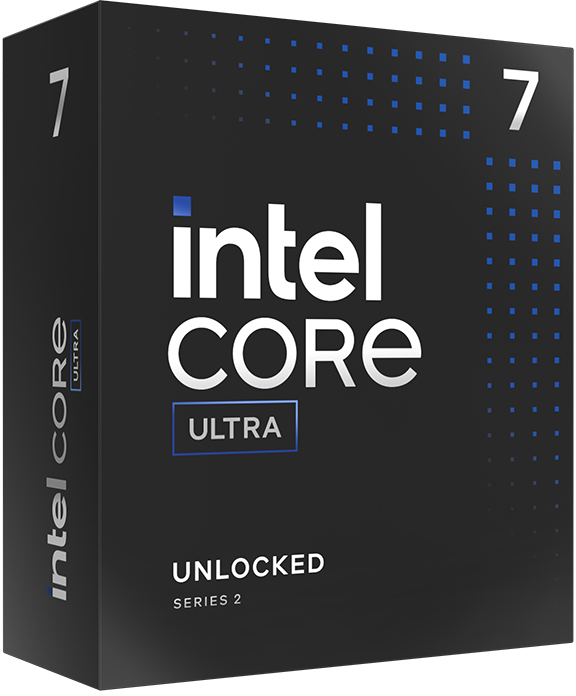

Intel S1851 Core Ultra 7 265K 20 Core 5.5GHz CPU BX80768265K, *BONUS Game via redemption

CPU Specifications

Total Cores

20

# of Performance-cores

8

# of Efficient-cores

12

Total Threads

20

Max Turbo Frequency Performance Proxy Frequently Asked Questions (FAQs) for Intel® Processors." data-keyboard="true" data-search-href="" data-search-icon="true" data-search-title="Find products with Max Turbo Frequency" data-target=".upe-modal" data-title="Max Turbo Frequency" data-toggle="modal" type="button">

5.5 GHz

Intel® Turbo Boost Max Technology 3.0 Frequency ^‡ Performance Proxy Frequently Asked Questions (FAQs) for Intel® Processors." data-keyboard="true" data-search-href="" data-search-icon="true" data-search-title="Find products with Intel® Turbo Boost Max Technology 3.0 Frequency ^‡" data-target=".upe-modal" data-title="Intel® Turbo Boost Max Technology 3.0 Frequency ^‡" data-toggle="modal" type="button">

5.5 GHz

Performance-core Max Turbo Frequency Performance Proxy Frequently Asked Questions (FAQs) for Intel® Processors." data-keyboard="true" data-search-href="" data-search-icon="true" data-search-title="Find products with Performance-core Max Turbo Frequency" data-target=".upe-modal" data-title="Performance-core Max Turbo Frequency" data-toggle="modal" type="button">

5.4 GHz

Efficient-core Max Turbo Frequency Performance Proxy Frequently Asked Questions (FAQs) for Intel® Processors." data-keyboard="true" data-search-href="" data-search-icon="true" data-search-title="Find products with Efficient-core Max Turbo Frequency" data-target=".upe-modal" data-title="Efficient-core Max Turbo Frequency" data-toggle="modal" type="button">

4.6 GHz

Performance-core Base Frequency Performance Proxy Frequently Asked Questions (FAQs) for Intel® Processors." data-keyboard="true" data-search-href="" data-search-icon="true" data-search-title="Find products with Performance-core Base Frequency" data-target=".upe-modal" data-title="Performance-core Base Frequency" data-toggle="modal" type="button">

3.9 GHz

Efficient-core Base Frequency Performance Proxy Frequently Asked Questions (FAQs) for Intel® Processors." data-keyboard="true" data-search-href="" data-search-icon="true" data-search-title="Find products with Efficient-core Base Frequency" data-target=".upe-modal" data-title="Efficient-core Base Frequency" data-toggle="modal" type="button">

3.3 GHz

Cache

30 MB Intel® Smart Cache

Total L2 Cache

36 MB

Processor Base Power

125 W

Maximum Turbo Power

250 W

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Yes

AI Software Frameworks Supported by CPU

OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

CPU Lithography

TSMC N3B

Supplemental Information

Marketing Status

Launched

Launch Date

Q4'24

Embedded Options Available

No

Use Conditions PRQ report.
For current use condition information, see Intel UC (CNDA site)*." data-keyboard="true" data-search-href="" data-search-icon="true" data-search-title="Find products with Use Conditions" data-target=".upe-modal" data-title="Use Conditions" data-toggle="modal" type="button">

PC/Client/Tablet, Workstation

Memory Specifications

Max Memory Size (dependent on memory type)

192 GB

Memory Types

Up to DDR5 6400 MT/s

Maximum Memory Speed

6400 MHz

Max # of Memory Channels

2

ECC Memory Supported ^‡

Yes

GPU Specifications

GPU Name^‡

Intel® Graphics

Graphics Base Frequency Performance Proxy Frequently Asked Questions (FAQs) for Intel® Processors." data-keyboard="true" data-search-href="" data-search-icon="true" data-search-title="Find products with Graphics Base Frequency" data-target=".upe-modal" data-title="Graphics Base Frequency" data-toggle="modal" type="button">

300 MHz

Graphics Max Dynamic Frequency Performance Proxy Frequently Asked Questions (FAQs) for Intel® Processors." data-keyboard="true" data-search-href="" data-search-icon="true" data-search-title="Find products with Graphics Max Dynamic Frequency" data-target=".upe-modal" data-title="Graphics Max Dynamic Frequency" data-toggle="modal" type="button">

2 GHz

GPU Peak TOPS (Int8)

8

Graphics Output

DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b

X^e-cores

4

Max Resolution (HDMI)^‡

4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)

Max Resolution (DP)‡

8K @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)‡

4K @ 60Hz

DirectX* Support

12

OpenGL* Support

4.5

OpenCL* Support

3

Intel® Quick Sync Video

Yes

# of Displays Supported ^‡

4

Device ID

0x7D67

Intel® Deep Learning Boost (Intel® DL Boost) on GPU

Yes

NPU Specifications

NPU Name^‡

Intel® AI Boost

NPU Peak TOPS (Int8)

13

Sparsity Support

Yes

Windows Studio Effects Support

Yes

AI Software Frameworks Supported by NPU

OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

Direct Media Interface (DMI) Revision

4

Max # of DMI Lanes

8

Intel® Thunderbolt™ 4

Yes

Scalability

1S Only

PCI Express Revision

5.0 and 4.0

PCI Express Configurations ^‡

Up to 1x16+2x4, 2x8+2x4,
1x8+4x4

Max # of PCI Express Lanes

24

Package Specifications

Sockets Supported

FCLGA1851

Thermal Solution Specification

PCG 2020A

Max Operating Temperature

105 °C

Advanced Technologies

Intel® Volume Management Device (VMD)

Yes

Intel® Gaussian & Neural Accelerator

3.5

Intel® Thread Director

Yes

Intel® Speed Shift Technology

Yes

Intel® Turbo Boost Max Technology 3.0 ^‡

Yes

Intel® Turbo Boost Technology ^‡

2.0

Intel® 64 ^‡

Yes

Instruction Set

64-bit

Instruction Set Extensions

Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States

Yes

Enhanced Intel SpeedStep® Technology

Yes

Thermal Monitoring Technologies

Yes

Security & Reliability

Intel vPro® Eligibility ^‡ Intel vPro® Enterprise: Commercial platform offering the full set of security, manageability, and stability features for any given Intel processor generation, including Intel® Active Management Technology

• Intel vPro® Essentials: Commercial platform offering a subset of Intel vPro® Enterprise features, including Intel® Hardware Shield and Intel® Standard Manageability
• " data-keyboard="true" data-search-href="" data-search-icon="true" data-search-title="Find products with Intel vPro® Eligibility ^‡" data-target=".upe-modal" data-title="Intel vPro® Eligibility ^‡" data-toggle="modal" type="button">

  Intel vPro® Enterprise, Intel vPro® Platform

  Intel® Threat Detection Technology (TDT)

  Yes

  Intel® Active Management Technology (AMT) ^‡

  Yes

  Intel® Standard Manageability (ISM) ^‡

  Yes

  Intel® Remote Platform Erase (RPE) ^‡

  Yes

  Intel® One-Click Recovery ^‡

  Yes

  Intel® Hardware Shield Eligibility ^‡ Intel® Hardware Shield." data-keyboard="true" data-search-href="" data-search-icon="true" data-search-title="Find products with Intel® Hardware Shield Eligibility ^‡" data-target=".upe-modal" data-title="Intel® Hardware Shield Eligibility ^‡" data-toggle="modal" type="button">

  Yes

  Intel® Control-Flow Enforcement Technology

  Yes

  Intel® Total Memory Encryption - Multi Key

  Yes

  Intel® AES New Instructions

  Yes

  Secure Key

  Yes

  Intel® Trusted Execution Technology ^‡

  Yes

  Execute Disable Bit ^‡

  Yes

  Intel® OS Guard

  Yes

  Intel® Boot Guard

  Yes

  Mode-based Execute Control (MBEC)

  Yes

  Intel® Stable IT Platform Program (SIPP) Learn more about Intel® SIPP" data-keyboard="true" data-search-href="" data-search-icon="true" data-search-title="Find products with Intel® Stable IT Platform Program (SIPP)" data-target=".upe-modal" data-title="Intel® Stable IT Platform Program (SIPP)" data-toggle="modal" type="button">

  Yes

  Intel® Virtualization Technology with Redirect Protection (VT-rp) ^‡

  Yes

  Intel® Virtualization Technology (VT-x) ^‡

  Yes

  Intel® Virtualization Technology for Directed I/O (VT-d) ^‡

  Yes

  Intel® VT-x with Extended Page Tables (EPT) ^‡

  Yes
