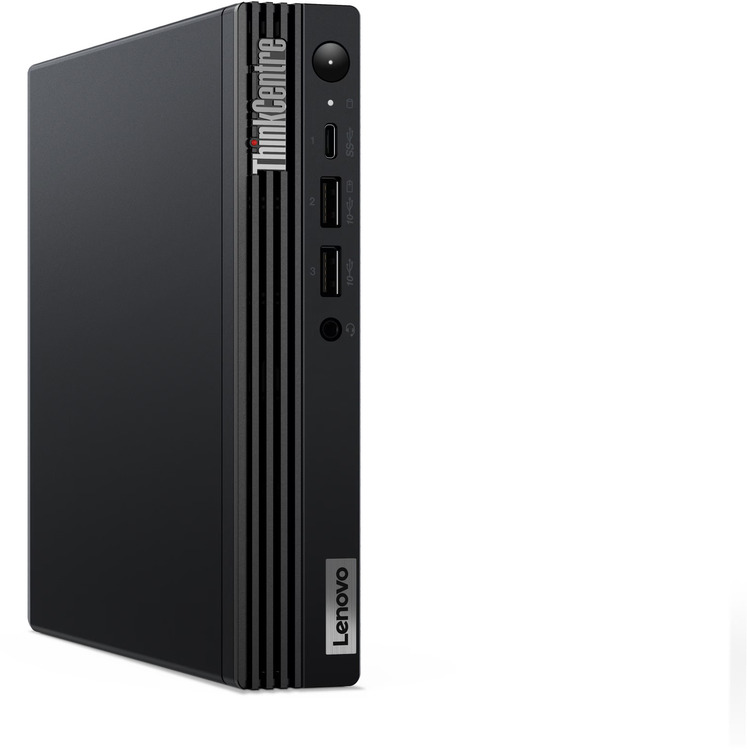

Lenovo ThinkCentre M70q G4 Tiny Core i7 Desktop Windows 11 Pro
Web ID: 43389
CPU: Core i7-13700T || 16 Core || Up to 4.8GHz || 30MB Cache
CPU Cores: 16 Core
CPU Speed: Up to 4.8GHz
GPU: Intel UHD iGPU
RAM Size: 32GB
Memory Type: DDR4
Storage Size: 512GB Solid State Drive
Video Interface: HDMI || DisplayPort
USB: USB 3.2 Type-A || USB 2.0
Connectivity: Bluetooth || Wireless-AX
LAN Speed: 1 Gigabit
Operating System: Windows 11 Pro
Manufacturer Warranty: 3 Year Onsite
Manufacturer PN: 12E3005JAU
GTIN: 198154348533
| PERFORMANCE | |
| Processor |
Intel® Core™ i7-13700T, 16C (8P + 8E) / 24T, Max Turbo up to 4.9GHz, P-core 1.4 / 4.8GHz, E-core 1.0 / 3.6GHz, 30MB |
| Graphics |
Integrated Intel® UHD Graphics 770 |
| Chipset |
Intel® Q670 Chipset |
| Memory |
2x 16GB SO-DIMM DDR4-3200 |
| Memory Slots |
Two DDR4 SO-DIMM slots, dual-channel capable |
| Max Memory |
Up to 64GB DDR4-3200 |
| Storage |
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal 2.0 |
| Storage Support |
Up to two drives, 1x 2.5" HDD + 1x M.2 SSD • 2.5" HDD up to 1TB • M.2 SSD up to 2TB |
| Card Reader |
No card reader |
| Optical |
None |
| Audio Chip |
High Definition (HD) Audio, Realtek® ALC256VB codec |
| Speakers |
2Wx1 |
| Power Supply |
135W 90% Adapter |
| DESIGN | |
| Keyboard |
USB Traditional Keyboard, Black, English |
| Mouse |
USB Calliope Mouse, Black |
| Optional Bay |
None |
| Expansion Slots |
Two M.2 slots (one for WLAN, one for SSD) |
| Case Color |
Black |
| Stand |
None |
| Adapter Cage |
None |
| Toolless Chassis Screw |
None |
| Dust Filter |
None |
| Mounting |
None |
| IO Box |
No IO box |
| Form Factor |
Tiny (1L) |
| Dimensions (WxDxH) |
179 x 182.9 x 36.5 mm with rubber feet (7.05 x 7.2 x 1.44 inches) |
| Weight |
Around 1.25 kg (2.76 lbs) |
| CONNECTIVITY | |
| Ethernet |
Integrated 100/1000M |
| WLAN + Bluetooth |
Intel® Wi-Fi® 6 AX201, 802.11ax 2x2 + BT5.2 |
| Front Ports |
|
| Optional Front Ports (configured) |
None |
| Rear Ports |
|
| Optional Rear Ports (configured) |
DP |
| Monitor Cable |
None |
| SECURITY & PRIVACY | |
| Security Chip |
Discrete TPM 2.0, TCG certified |
| Fingerprint Reader |
No fingerprint reader |
| Physical Locks |
Kensington® Security Slot™, 3 x 7 mm |
| Kensington Cable Lock |
None |
| Chassis Intrusion Switch |
Chassis Intrusion Switch |
| MANAGEABILITY | |
| System Management |
Non-vPro® |
| SERVICE | |
| Base Warranty |
3-year, Onsite |
| Included Upgrade |
None |
| CERTIFICATIONS | |
| Green Certifications |
|
| Other Certifications |
TÜV Rheinland® Low Noise |
| Mil-Spec Test |
MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog) |
| SOFTWARE | |
| Operating System |
Windows® 11 Pro, English |
| Bundled Software |
None |
| ACCESSORIES | |
| Bundled Accessories |
None |
