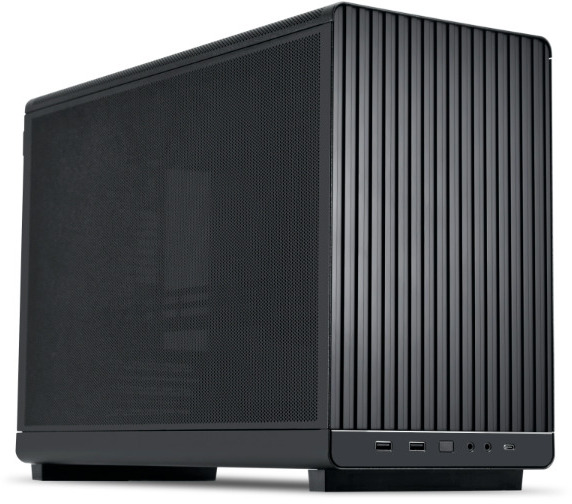

Lian Li DAN-A3 MicroATX Chassis Black
Web ID: 42301
Case Type: Micro ATX Case
Form Factor: ATX (PSU) || SFX (PSU) || Mini-ITX || Micro-ATX
Colour: Black
Cooler Clearance: 165mm (Cooler Clearance)
GPU Max Length: 258mm Max GPU Length
Radiator Size: 240mm Radiator || 280mm Radiator || 360mm Radiator
Interface: 2.5" Drive Bay || 3.5" Drive Bay
USB: USB 3.1 Type-C || USB 3.0
Usage: Gaming
Manufacturer Warranty: 1 Year
Manufacturer PN: PC-A3X
Manufacturer Website
$119
| PRODUCT NAME | A3-mATX | |
|---|---|---|
| MODEL | A3X | A3W |
| COLOR | Black | White |
| CASE TYPE | MFF (Micro Form Factor) | |
| DIMENSION | (D) 443mm x (W) 194mm x (H) 321.5mm (D) 443mm x (W) 194mm x (H) 306mm(w/o feet) |
|
| CAPACITY | 26.3L | |
| MATERIAL | Steel | |
| MOTHERBOARD SUPPORT | M-ATX/ITX | |
| PSU SUPPORT | ATX/SFX/SFX-L (Max 220mm) | |
| FAN SUPPORT | Top: 3 x 120mm Side: 3 x 120mm or 2 x 140mm Bottom: 3 x 120mm Rear: 1 x 120mm |
|
| RADIATOR SUPPORT | Top: 1 x 360/240mm Side: 1 x 360/280/240mm Bottom: 1 x 240mm (360mm with fan at the bottom) |
|
| DRIVE SUPPORT | Tray: 2 × 2.5” SSD Bottom: 1 × 2.5” SSD or 1 × 3.5” HDD |
|
| GPU LENGTH CLEARANCE | Max 415mm | |
| CPU HEIGHT CLEARANCE | Max 165mm | |
| EXPANSION SLOTS | 4 | |
| I/O PORTS | 1 x Power Button 2 x USB 3.0 TYPE-A 1 x USB 3.1 TYPE-C 1 x Mic 1 x HD Audio |
|
| DUST FILTER | 1 x Bottom | |
| WARRANTY | 1 year | |
