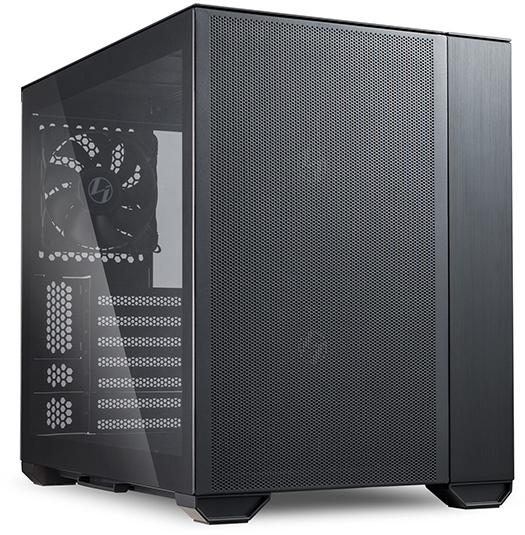

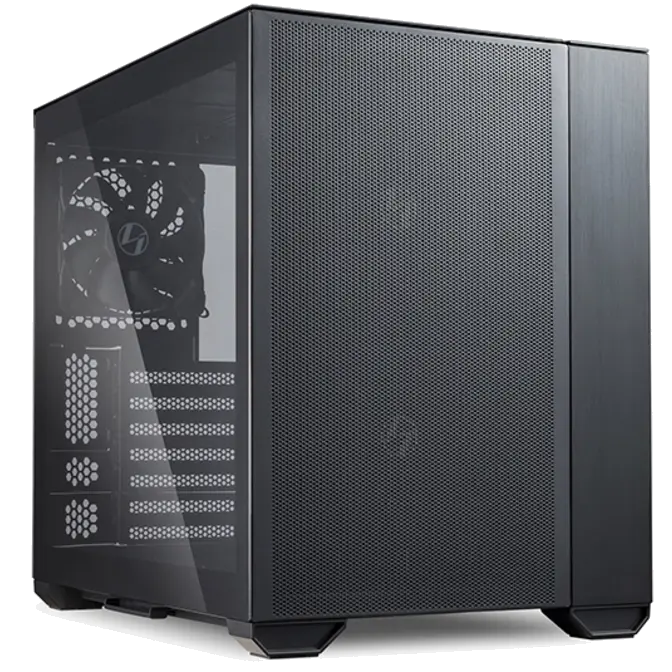

Lian Li O11 Air Mini Chassis Black
Web ID: 41970
Case Type: ATX Case
Form Factor: ATX (PSU) || SFX (PSU) || Mini-ITX || Micro-ATX || ATX || E-ATX
Colour: Black
Cooler Clearance: 170mm (Cooler Clearance)
GPU Max Length: 362mm Max GPU Length
Radiator Size: 240mm Radiator || 280mm Radiator
Interface: 2.5" Drive Bay || 3.5" Drive Bay
USB: 1 x USB 3.1 Type-C || 2 x USB 3.0
Usage: Gaming
Manufacturer Warranty: 1 Year
Manufacturer PN: PC-O11 AMX
GTIN: 840353041561
Manufacturer Website
$169
| PRODUCT NAME | O11 Air MINI | |
|---|---|---|
| MODEL |
O11AMX black |
O11AMW white |
| COLOR | Black | White |
| DIMENSION | (D) 400 X (W) 288 X (H) 384 mm | |
| MATERIAL | 4mm Aluminum Panel 0.8mm Mesh Panel 4.0 mm Tempered Glass |
|
| MOTHERBOARD SUPPORT | E-ATX (Max 280 mm wide)/ ATX/ Micro-ATX/ Mini-ITX | |
| PSU SUPPORT | ATX (Max. 200 mm) | |

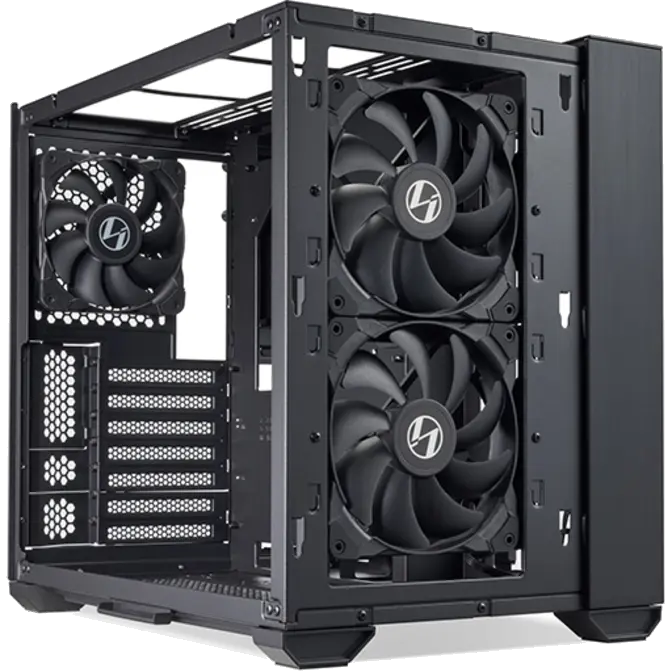

| INCLUDED FAN | (Front) 2 X 140mm PWM Fan (Rear) 1 X 120mm PWM Fan |
|
| FAN SUPPORT | (Top) 120mm X3 / 140mm X2 (Side) 120mm X2 (Bottom) 120mm X2/ 140mm X2 (Front) 120mm X2/ 140mm X2 (Rear)120 mm X1 |
|
| RADIATOR SUPPORT | (Top) 240mm or 280mm (Side) 240mm (Bottom) 240mm or 280mm (Front) 240mm or 280mm |
|
| DRIVE SUPPORT | 6 X 2.5” SSD or 2 X 2.5” SSD + 4 X 3.5” HDD | |
| GPU LENGTH CLEARANCE | 362 mm | |
| CPU HEIGHT CLEARANCE | 170 mm | |
| EXPANSION SLOTS | 7 or 5 (depends on the back panel) | |
| I/O PORTS | 2 X USB 3.0 1 X USB 3.1 Type-c 1 X HD Audio |
|
| DUST FILTER | 1 × removable bottom dust tray | |
