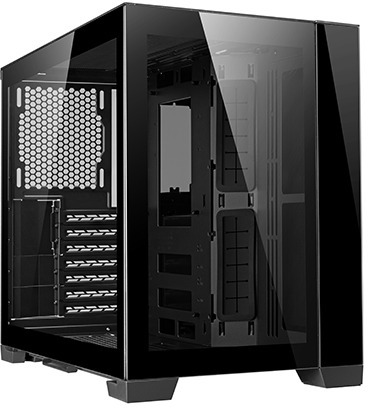

Lian Li PC-O11 Dynamic Tempered Glass Mini Tower Case Black
Web ID: 32688
Case Type: ATX Case
Form Factor: SFX (PSU) || Mini-ITX || Micro-ATX || ATX || E-ATX
Colour: Black
Cooler Clearance: 170mm (Cooler Clearance)
GPU Max Length: 395mm Max GPU Length
Radiator Size: 240mm Radiator || 280mm Radiator || 360mm Radiator
Interface: 2 x 2.5" Drive Bay || 2 x 3.5" Drive Bay
USB: 1 x USB 3.1 Type-C || 2 x USB 3.0
Manufacturer Warranty: 1 Year
Manufacturer PN: PC-O11DMI-X
GTIN: 840353040502
Manufacturer Website
$165
| Product Name | O11 Dynamic MINI | ||
| MODEL | O11D Mini-X | O11D Mini-W | O11D Mini-S |
| COLOR | Black | White | Snow white |
| DIMENSIONS | (D)420mm X (W)269.5mm X (H)380mm | ||
| MOTHERBOARD | E-ATX (Max 280 mm wide)/ATX/ Micro-ATX/ Mini-ITX | ||
| PSU | SFX/ SFX-L | ||
| MATERIAL | Steel 4 mm Tempered Glass 2mm Aluminum (top and left panel) |
||
| FAN SUPPORT | Top: 3x 120mm or 2x 140mm Side: 2x 120mm or 2x 140mm Bottom: 3x 120mm or 2x 140mm Rear: 1x 120mm |
||
| RADIATOR SUPPORT | Top: 360mm or 280mm or 240mm radiator Side: 240mm or 280mm radiator Bottom: 360 or 280mm or 240mm radiator |
||
| GPU LENGTH CLEARANCE | 395mm | ||
| CPU COOLER HEIGHT CLEARANCE | 170mm | ||
| VGA Length | 370mm | ||
| DRIVES | Right side 2 x 2.5″ SSD + back plate 2 x 3.5″ HDD (or SSD) | ||
| EXPANSION SLOTS | 3 or 5 or 7 slots (depends on back panel) | ||
| IO PORTS | 2 x USB 3.0, 1 x USB 3.1 TYPE-C, 1 x HD Audio, Power Button | ||
| DUST FILTERS | 1 x Top, 1 x Bottom, 2 x Side | ||
