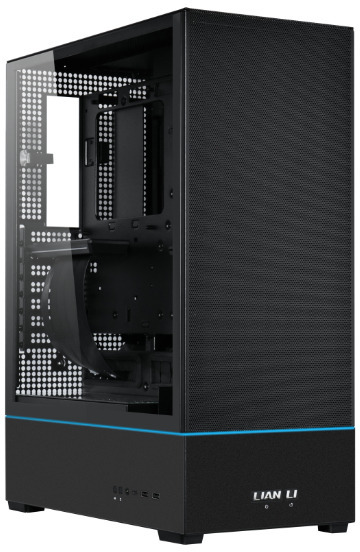

Lian Li SUP01 Tower Steel ATX Small Case Black
Web ID: 41965
Case Type: ATX Case
Form Factor: ATX (PSU) || SFX (PSU) || Mini-ITX || Micro-ATX || ATX
Colour: Black
Cooler Clearance: 89mm (Cooler Clearance)
GPU Max Length: 400mm Max GPU Length
Radiator Size: 280mm Radiator || 360mm Radiator
Interface: 2.5" Drive Bay || 3.5" Drive Bay
USB: USB 3.1 Type-C || USB 3.0
Usage: Gaming
Manufacturer Warranty: 1 Year
Manufacturer PN: PC-SUP01X
GTIN: 840353046320
Manufacturer Website
$249
| PRODUCT NAME | SUP01 | |
|---|---|---|
| MODEL | SUP01X BLACK | SUP01W WHITE |
| COLOR | Black | White |
| CASE TYPE | Small Tower Case | |
| DIMENSION | (D) 403.45mm x (W) 212mm x (H) 534mm (D) 403.45mm x (W) 212mm x (H) 524mm (w/o feet) |
|
| CAPACITY | 44.8L | |
| MATERIAL | Steel 4.0mm Tempered Glass |
|
| RISER CABLE TYPE | PCIE 4.0 | |
| MOTHERBOARD SUPPORT | ATX/M-ATX/ITX ATX Back Connect |
|
| PSU SUPPORT | ATX (Max 220mm) | |
| INCLUDED FAN | 3 x 120mm PWM | |
| FAN SUPPORT | Side 1: 3 x 120mm Side 2: 3 x 120mm or 2 x 140mm Rear exterior: 1 x 120mm |
|
| RADIATOR SUPPORT | Side 2: 360mm or 280mm | |
| DRIVE SUPPORT | Drive Cage: 2 × 2.5” SSD or 2 × 3.5” HDD Above PSU shroud:2 × 2.5” SSD |
|
| GPU LENGTH CLEARANCE | Max 400mm | |
| CPU HEIGHT CLEARANCE | Max 88.2mm | |
| EXPANSION SLOTS | 7 (for low profile card) 4 (for standard profile card with extension cable) |
|
| I/O PORTS | 1 x Power Button 1 x Reset Button 2x USB 3.0 TYPE-A 1x USB 3.1 TYPE-C 1x Mic 1 x Light Color Button (C) 1 x Light Mode Button (M) |
|
| DUST FILTER | 1 x bottom tray 1 x front magnatic 1 x top magnatic |
|
| WARRANTY | 1 year | |
