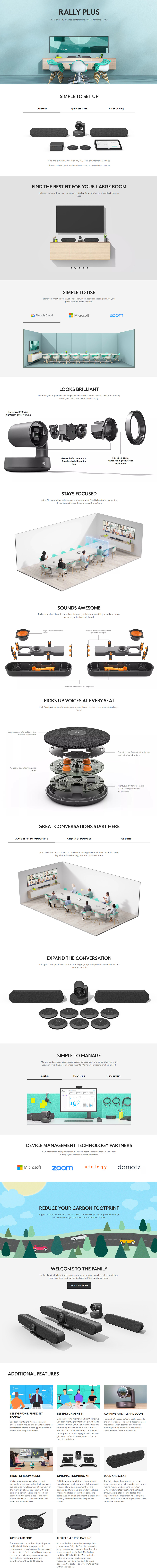

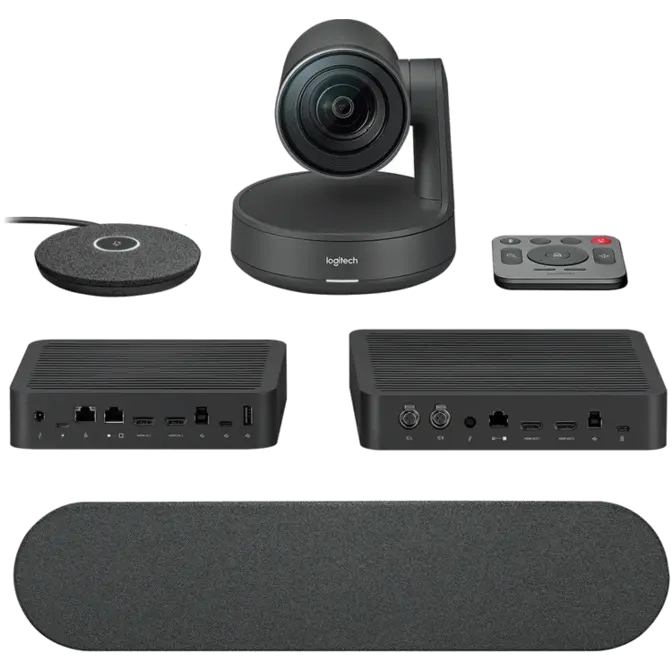

Logitech Rally Plus Ultra-HD Conference Cam System 960-001274

Rally Camera

• Height: 182.5 mm
• Width: 152 mm
• Depth: 152 mm

Rally Speaker

• Height: 103 mm
• Width: 449 mm
• Depth: 80 mm

Rally Mic Pod

• Height: 21 mm
• Width: 102 mm
• Depth: 102 mm

Rally Display Hub

• Height: 40 mm
• Width: 206 mm
• Depth: 179 mm

Rally Table Hub

• Height: 40 mm
• Width: 176 mm
• Depth: 138 mm

Operating Systems

• Windows 7, 8.1 or Windows 10
• macOS: 10.10 or higher
• ChromeOS

Resolutions higher than 1080p

• Windows 8.1 or higher or macOS 10.10 or higher
• USB 3.0 port
• Compatible software

RIGHTSENSE TECHNOLOGIES

• RightLight with WDR
  • Low-light compensation
  • Video noise reduction
  • Low-light saturation optimization
  • Renders natural skin tones for each participant on camera
  • Reduces backlighting and glare without darkening the entire image.
• RightSight ⁴Please see RightSight Availability for details.
  • Human figure detection
  • Auto-frame participants at meeting start
  • Auto-frame participants on-demand
  • Auto-reframe participants during meetings
• RightSound
  • Machine learning AI trained to distinguish human speech from other sounds
  • AEC (Acoustic Echo Cancellation)
  • VAD (Voice Activity Detector)
  • Background noise suppression
  • Auto-level loud and soft voices
• RightSound Mic Matrix
  • Very low distortion broadside beamforming algorithm steers the factory-paired microphones directly at the talker for the best voice pickup and noise reduction
  • Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker
  • Beam focus refresh rate: 8ms (125 times/second)
• Anti-Vibration Suspension
  • A patent-pending suspension system decouples the speaker module within the external enclosure, virtually eliminating the vibrations that can travel through walls, stands, and tables. This improves the echo cancelling performance of Rally Mic Pods, while ensuring that video images remain clear and steady, even at high volume levels and when zoomed in.
  • Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion

Rally Camera

• Zoom: 15x HD zoom (5x optical + 3x digital)
• Pan: 180° (±90°)
• Tilt: 140° (+50° / -90°)
• Field of View
  • Diagonal: 90°
  • Horizontal: 82°
  • Vertical: 52°
• Total Room Coverage: 262° wide x 192° tall (field of view + pan and tilt)
• Resolutions @ 30fps: 4K Ultra HD, 1440p, 1080p, 900p, 720p, and SD
• Resolutions @ 60fps: 1080p, 720p
• RightLight Technologies: Wide Dynamic Range (WDR), low-light compensation, video noise reduction, low-light saturation optimization
• Privacy: Lens parks at -90° in sleep mode for assured privacy

Rally Mic Pod

• Pickup Range: 7 m diameter
• Four omnidirectional microphones forming eight acoustic beams
• AEC: Acoustic Echo Cancellation
• VAD: Voice Activity Detector
• Background noise suppression
• Mute button with LED status indicator
• Captive 2.95 m 12-pin cable
• Daisy chain up to 7 Rally Mic Pods
• Frequency Response: 90Hz – 16kHz
• Sensitivity: >-27 dB +/-1dB @ 1Pa
• Microphone data rate: 48 kHz
• Recommended # of participants
  • Rally (one Mic Pod): 16
  • Rally Plus (two Mic Pods): 16
  • Additional participants per Mic Pod: 6
  • Recommended participants for Rally with 7 Mic Pods: 46

Rally Speaker

• High-performance 76 mm driver with rare-earth magnet
• Patent-pending suspension system eliminates vibration-induced camera shake and audio interference
• Mini XLR cable connects to Rally Display Hub for both signal and power
• Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter
• Sensitivity: 95+/-2 dB SPL at ½ meter
• Distortion: 200Hz–300Hz <2.5%, 300Hz–10kHz < 1%@7.5W
• Sampling rate: 48 kHz

Rally Table Hub

• Single CAT6A cable connection to Rally Display Hub 5 m cable included, supports customer-supplied cables up to 50 m
• Hub 5 m cable included, supports customer-supplied cables up to 50 m
• Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8 ms
• 12 Pin connector for Rally Mic Pod
• HDMI Type A passthrough to Display Hub (x2)
• USB Type C
• USB Type A (reserved for future capability)
• USB Type B (connects to meeting room computer)
• RJ45 (reserved for future capability)
• Power input

Rally Display Hub

• HDMI Type A: (x2) (connects to displays)
• USB C (connects to Rally Camera)
• USB Type B (connects to meeting room computer)
• RJ45: connects to Table Hub
• Mini XLR: x2
• Powers one or two Rally Speakers
• Power input

Remote Control

• RF remote control (line of sight not required)
• CR2032 batteries (included)

Cables / Power

• Camera to Display Hub
  • 2 m USB 3.1 Type C to USB Type C 3.1
• Conference Room Computer to Display or Table Hub
  • 2 m USB 3.1 Type A to USB Type B
• Display Hub to Table Hub
  • 5 m CAT6A Ethernet cable (supports customer-supplied cables up to 50 m
• Display Hub to Speaker (x2)
  • 2.95 m Mini XLR (supports customer-supplied extension cables up to 3 m
• Conference Room Computer to Displays (x2)
  • 2 m HDMI A
• Mic Pod
  • 2.95 m: Hardwired with 12 pin connector
• Power Outlets to Power Supplies (x2): 1 m
  • 1 m
• Power Supplies to Table Hub / Display Hub (x2)
  • 1.5 m

AVAILABLE ACCESSORIES

• RALLY MOUNTING KIT
• Rally Mounting Kit with cable retainers: (x2) and mounting brackets for camera, speakers (x2), and hubs (x2)
• Rally Mic Pod
• Deploy up to 7 Rally Mic Pods for greater audio coverage in larger rooms
• MIC POD MOUNT
• Anchors mics and hides cables for a finished look
• Rally Mic Pod Hub
• Connect 1-3 Rally Mic Pods (or additional hubs) for placement flexibility and under-table cabling
• Rally Speaker
• Add a second Rally Speaker for larger rooms

Certifications

• Certified for Skype for Business and ready for Teams
• Zoom Certified
• Certified for Google Hangouts Meet Hardware
• Microsoft Cortana® certified
• Cisco Jabber and WebEx compatible
• Compatible with BlueJeans, BroadSoft, Video, and other video conferencing, recording, and broadcasting applications that support USB cameras

Compatibility

• Plug-and-play USB connectivity

Appliance Mode

• Supports compatible video conferencing software in appliance mode when deployed with Logitech RoomMate, including Zoom Rooms Appliances. Certification pending for Microsoft Teams Rooms on Android and additional video conferencing platforms.

• Logitech Rally
• Rally Camera
• Rally Display Hub
• Rally Table Hub
• Rally Speaker (x1)
• Rally Mic Pod (x1)
• Remote control
• USB Type C to USB Type C
• USB Type A to USB Type B
• CAT6A Ethernet cable
• HDMI Type A (x2)
• A/C cables (x2)
• Power Supplies (x2)
• Documentation
• Logitech Rally Plus
• Rally Camera
• Rally Display Hub
• Rally Table Hub
• Rally Speaker (x2)
• Rally Mic Pod (x2)
• Remote control
• USB Type C to USB Type C
• USB Type A to USB Type B
• CAT6A Ethernet cable
• HDMI Type A (x2)
• A/C cables (x2)
• Power Supplies (x2)
• Documentation

2-Year Limited Hardware Warranty

• RALLY : 960-001219
• RALLY PLUS : 960-001274
