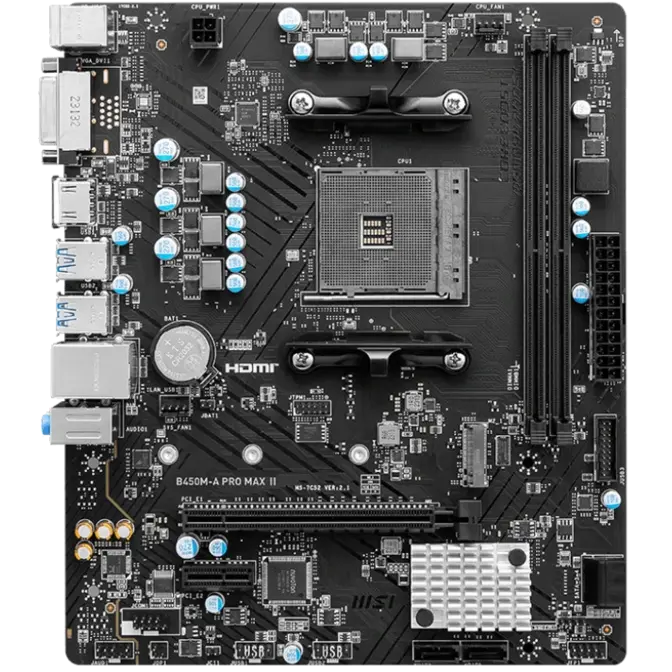

MSI AM4 MicroATX B450M-A PRO MAX II Motherboard

Web ID: 43185

CPU Socket: AMD AM4 (2000 Series, 3000 Series, 5000 Series)
Form Factor: Micro-ATX
Chipset: AMD B450
Memory Type: DDR4
Connectivity: LAN
PCIe Interface: PCIe x1 || PCIe x16
Storage Interface: M.2 PCIe || SATA 6Gb/s
LAN Speed: 2.5 Gigabit
Audio: 7.1 Channel
Video Interface: VGA || HDMI
USB: 4 x USB 3.2 Type-A || 2 x USB 2.0

Manufacturer Warranty: 3 Year
Manufacturer PN: B450M-A PRO MAX II
GTIN: 824142333235
Manufacturer Website

msi am4 microatx b450m-a pro max ii motherboard

Chipset AMD B450
CPU Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors
Socket AM4
Memory 2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
Supports Dual-Channel mode
Supports non-ECC, UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Onboard Graphics 1x HDMI™
Support HDMITM 2.0b, maximum resolution of 4K 60Hz*
1x DVI
Support DVI-D, maximum resolution of 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage 1x M.2
M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LAN Realtek® 8125 2.5Gbps LAN controller
Internal IO 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
BACK PANEL PORTS
  1. Keyboard/Mouse
  2. DVI-D
  3. HDMI™
  4. USB 3.2 Gen 1 5Gbps (Type-A)
  5. 2.5G LAN
  6. Audio connectors
  7. USB 2.0
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
BOX CONTENT
PCB Info mATX
200mmx236mm
