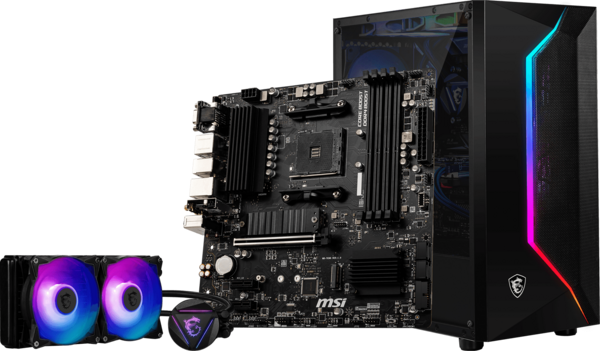

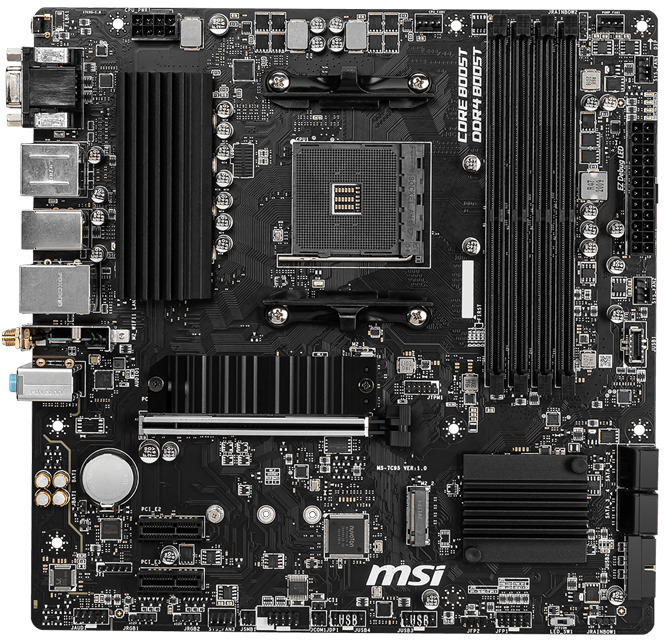

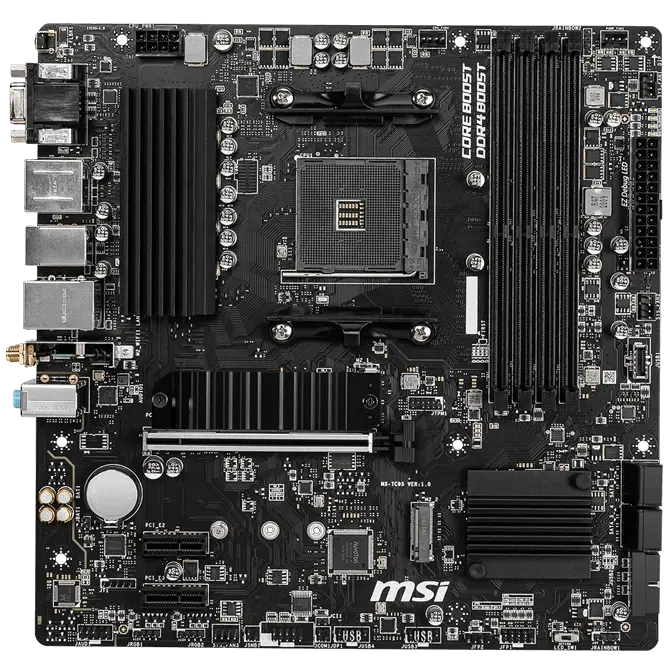

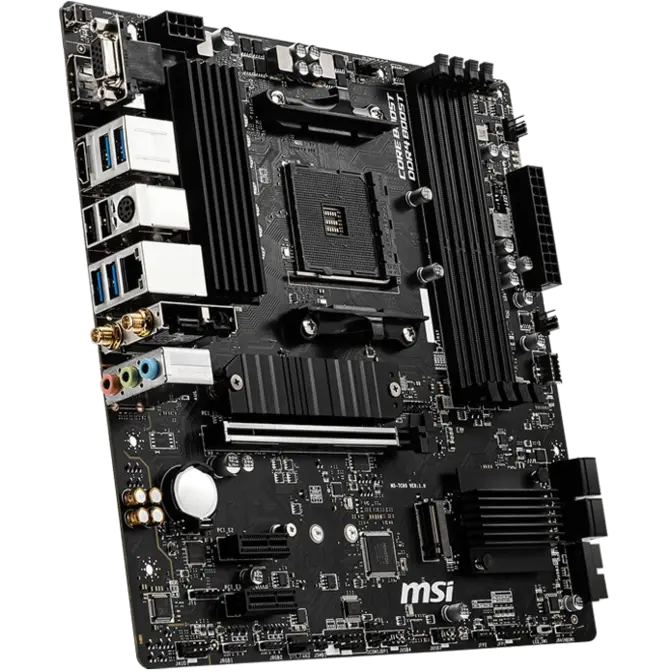

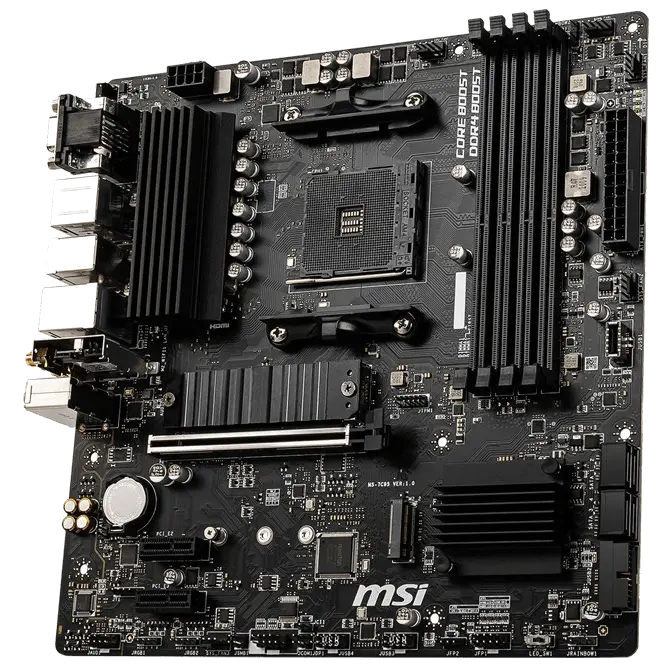

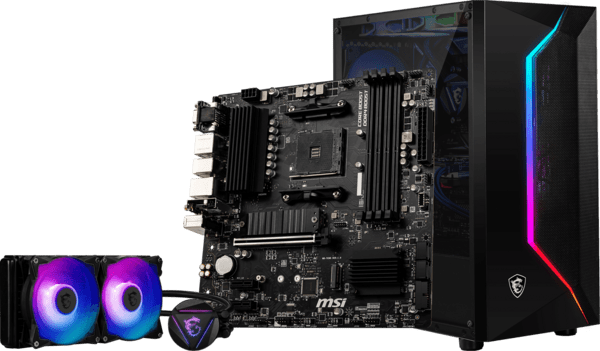

MSI AM4 MicroATX B550M PRO-VDH WIFI DDR4 Motherboard
Web ID: 30329
AMD AM4 Socket, AMD B550 Chipset, 4x DIMM DDR4 Memory Slots,1 x PCIe 4.0/3.0 x16, 2 x PCIe 3.0 x1, 1 x M.2 PCIe Slot, 1 x M.2 SATA/PCIe Slot, 4 x SATA 6Gb/s Ports, RAID 0, 1, 10, 1 x D-Sub (VGA), 1 x HDMI 1.4, 1 x DisplayPort, Gigabit LAN, Wireless-AC, Bluetooth v4.2, 1 x USB 3.2 (Gen1) Type-C (via internal header), 6 x USB (Gen1) Type-A (4 via back panel, 2 via internal header), 6 x USB 2.0 (2 via back panel, 4 via internal header), 1 x 7.1-Channel High Definition Audio, MicroATX Form Factor
Manufacturer Warranty: 3 Year
Manufacturer PN: B550M PRO-VDH WIFI
GTIN: 824142219393
Manufacturer Website
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
NEXT-GEN INTEL® WI-FI AC & BLUETOOTH
This next-generation Intel® Wi-Fi / Bluetooth solution delivers AC speeds up to 433Mbps without any cable limitation.
CPU
Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
Chipset
AMD B550 Chipset
Memory
- 4x DDR4 memory slots, support up to 128GB 1
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 4400 MHZ
- 1DPC 2R max speed 3733 MHZ
- 2DPC 1R max speed 3866 MHZ
- 2DPC 2R max speed 3466 MHZ
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory
- Supports un-buffered memory
- Please refer www.msi.com for more information on compatible memory.
Expansion Slot
- 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
- 2x PCIe 3.0 x1 slots
- The supported specification depends on installed processor.
Onboard Graphics
- 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1
- 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
- 1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz 1 2
Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3 - Maximum shared memory of 16 GB
- Available for the processor with integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
Storage
AMD B550 Chipset
- 4x SATA 6Gb/s ports
- 2x M.2 slots (Key M)
- M2_1 slot (from AMD Processor)
- Supports PCIe 4.0/ 3.0 x4 1
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- M2_2 slot (from AMD B550 chipset)
- Supports PCIe 3.0x4
- Supports 2242/ 2260/ 2280 storage devices
- M2_1 slot (from AMD Processor)
- The supported specification depends on installed processor.
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
AMD B550 Chipset
- 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
- 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
- 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio
Realtek® ALC892/ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Realtek® 8111HN Gigabit LAN controller
Wireless LAN & Bluetooth®
Intel® Dual Band Wireless-AC 3168
- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 433 Mbps speed.
- Supports Dual Mode Bluetooth 2.1,2.1+EDR,3.0,4.0,BLE,4.2
Internal connectors
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 2x M.2 slots (M-Key)
- 1x USB 3.2 Gen 1 5Gbps Type-C port
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 3x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Serial port connector
- 1x Chassis Intrusion connector
- 2x 4-pin RGB LED connectors
- 2x 3-pin RAINBOW LED connectors
- 1xTPM module connector
- 1x Clear CMOS jumper

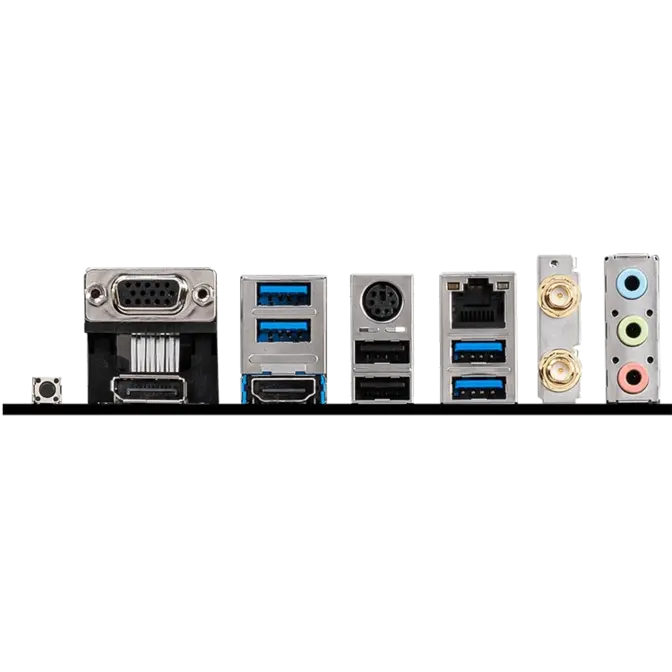

Back panel ports
- VGA
- USB 3.2 Gen 1 5Gbps Type-A
- Keyboard / Mouse
- LAN
- Flash BIOS Button
- DisplayPort
- HDMI
- USB 2.0
- USB 3.2 Gen 1 5Gbps Type-A
- Wi-Fi Antenna connectors
- 3x Audio jacks
Dimensions
- Micro-ATX Form Factor
- 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
MOUNTING
8 mounting holes
