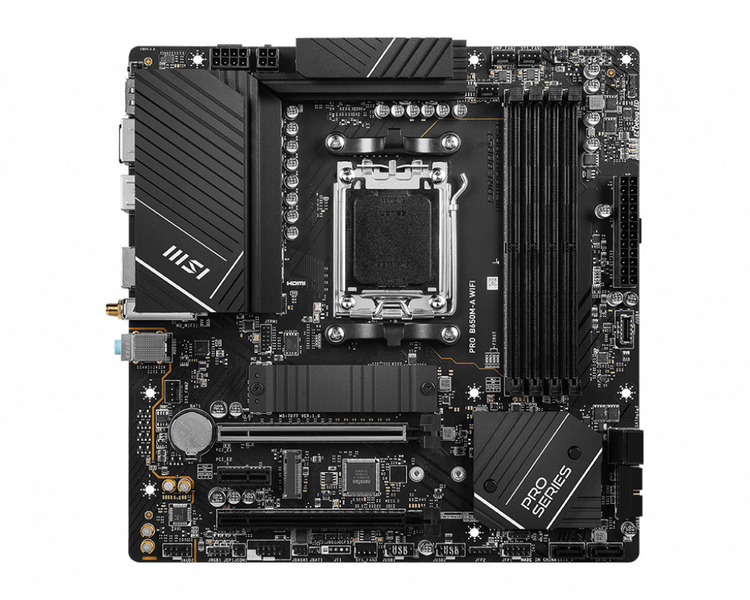

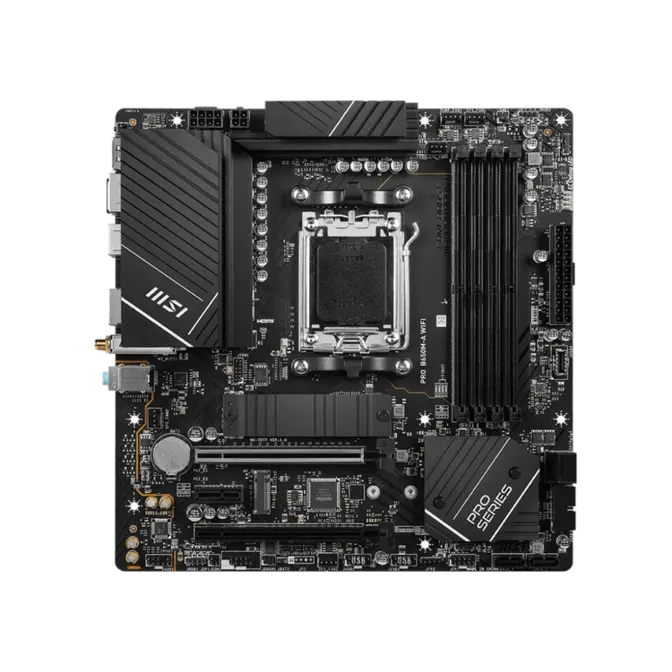

MSI AM5 MicroATX PRO B650M-A WIFI DDR5 Motherboard
Web ID: 34331
CPU Socket: AMD AM5 || For 7000 Series Desktop Processors
Form Factor: Micro-ATX
Chipset: AMD B650 Chipset
Compatible Memory: DDR5 || 4 x DIMM Sockets
Wi-Fi: Wireless-AX + Bluetooth 5.2
PCIe Sockets: 2 x PCIe 4.0 x16(x16/x4) || 1 x PCIe 3.0 x1
M.2 Sockets: 2 x M.2 PCIe 4.0
SATA Ports: 4 x SATA 6Gb/s
RAID Support: 0, 1, 10
Ethernet Port: 1 x RJ45 2.5G
Audio Ports: 3 x 3.5mm (5.1)
Video Ports: 1 x HDMI || 1 x DisplayPort
Rear USB Ports: 4 x USB 3.2 Gen 2 Type-A || 4 x USB 3.2 Gen 1 Type-A
Internal USB Ports: 2 x USB 3.2 Gen 1 Header || 1 x USB 3.1 Type-C Header || 4 x USB 2.0 Header ONLY WHILE STOCKS LAST! CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: PRO B650M-A WIFI
GTIN: 824142301043
Manufacturer Website
$199SAVE $20
| CHIPSET | AMD B650 |
|---|---|
| CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors Socket AM5 |
| MEMORY | 4x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 4800 MHz (by JEDEC & PRO) Max. overclocking frequency: • 1DPC 1R Max speed up to 6400+ MHz • 1DPC 2R Max speed up to 5800+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO |
| ONBOARD GRAPHICS | 1x HDMI™ 1x DisplayPort Support HDMITM 2.1, maximum resolution of 4K 60Hz* Supports DP1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| EXPANSION SLOT | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
| STORAGE | 2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G port |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) |
| LAN | Realtek® 8125BG 2.5G LAN |
| WIRELESS / BLUETOOTH | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.2** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. ** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. |
| AUDIO | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| INTERNAL I/O | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB DIMENSION | mATX 243.84mmx243.84mm |
