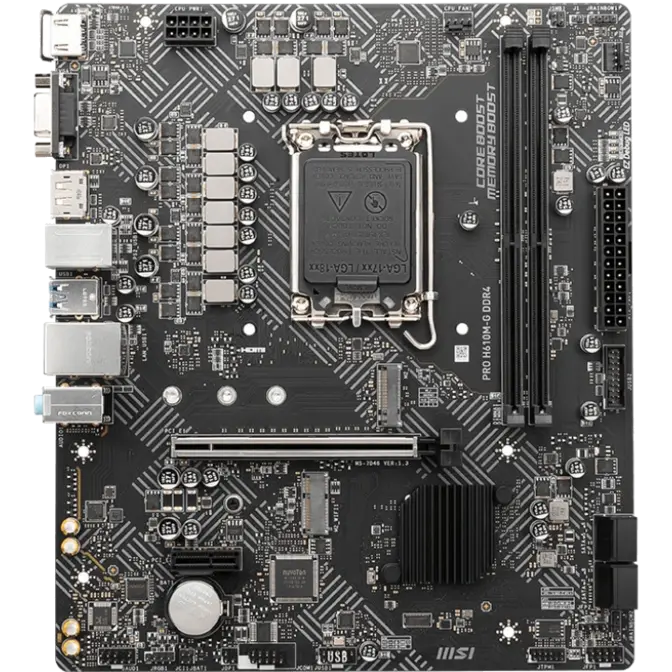

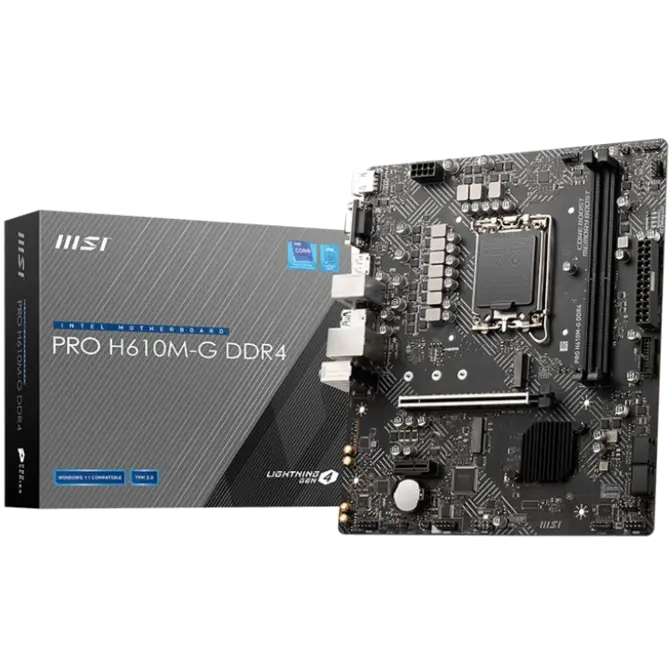

MSI S1700 MicroATX PRO H610M-G DDR4 Motherboard
Web ID: 34596
CPU Socket: Intel S1700 || For 12th Gen Processors (Requires BIOS update for 13th Gen/14th Gen Compatibility)
Form Factor: Micro-ATX
Chipset: Intel H610 Chipset
Compatible Memory: DDR4 || 2 x DIMM Sockets
Wi-Fi: No WIFI or Bluetooth
PCIe Sockets: 1 x PCIe 4.0 x16 || 1 x PCIe 3.0 x1
M.2 Sockets: 1 x M.2 PCIe 3.0
SATA Ports: 4 x SATA 6Gb/s
Ethernet Port: 1 x RJ45
Audio Ports: 3 x 3.5mm (7.1)
Video Ports: 1 x HDMI || 1 x VGA || 1 x DisplayPort
Rear USB Ports: 2 x USB 3.2 Gen 1 Type-A || 4 x USB 2.0
Internal USB Ports: 1 x USB 3.2 Gen 1 Header || 1 x USB 2.0 Header ONLY WHILE STOCKS LAST! CASH PRICE
Manufacturer Warranty: 1 Year
Manufacturer PN: PRO H610M-G DDR4
GTIN: 824142278789
Manufacturer Website
PROCESSOR
Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1
Processor socket LGA1700
- Please go to www.msi.com to get the newest support status as new processors are released.
CHIPSET
Intel® H610 Chipset
MEMORY
- 2x DDR4 memory slots, support up to 64GB1
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR)
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Please refer to www.msi.com for more information on compatible memory.
EXPANSION SLOT
- 1x PCIe x16 slot (From CPU)
- Supports up to PCIe 4.0 x16
- 1x PCIe x1 slot
- Supports PCIe 3.0 x1
- 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1)
ONBOARD GRAPHICS
- 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 2
- 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz1
- x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1 2
- Available only on processors featuring integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
SATA PORTS
- 4x SATA 6Gb/s ports1
- * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.2 SSD SLOT
- 1x M.2 slot (Key M, from chipset)1
- Supports up to PCIe 3.0 x4
- Supports up to SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- Supports Intel® Smart Response Technology for Intel Core™ processors
- SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
USB
Intel® H610 Chipset
- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector)
- 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
AUDIO
Realtek® ALC892/ ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Intel® I219V 1Gbps LAN controller
POWER CONNECTORS
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
FAN CONNECTORS
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connector
SYSTEM CONNECTORS
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x TPM module connector
JUMPERS
- 1x Clear CMOS jumper
LED FEATURES
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 4x EZ Debug LED
BACK PANEL PORTS
- HDMI
- VGA
- DisplayPort
- Keyboard/Mouse
- USB 3.2 Gen 1 5Gbps Type-A
- LAN port
- Audio connector
- USB 2.0
DIMENSIONS
- mATX Form Factor
- 9.61 x 8.31 in. (24.4 cm x 21.1 cm)
OPERATING SYSTEM
Support for Windows® 11 64-bit
BOX CONTENT
- MSI® does not guarantee the risks or damages caused by changing the cover.
- These pictures are for reference only and may vary without notice.
