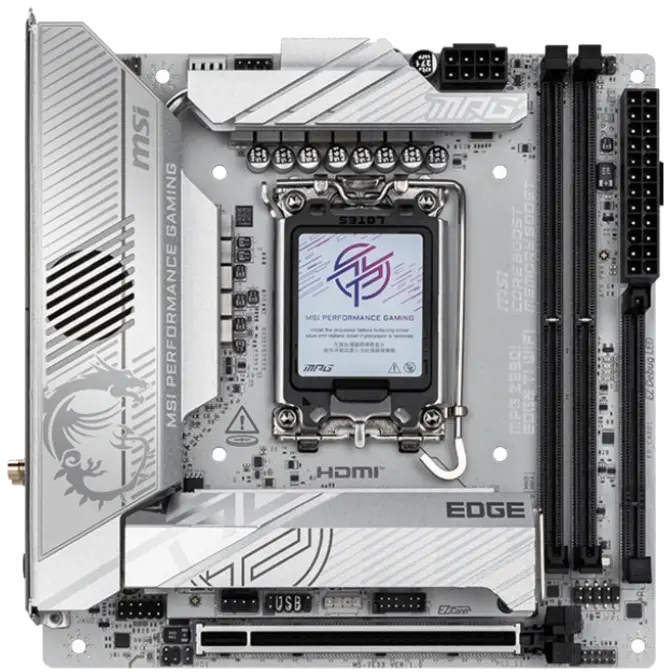

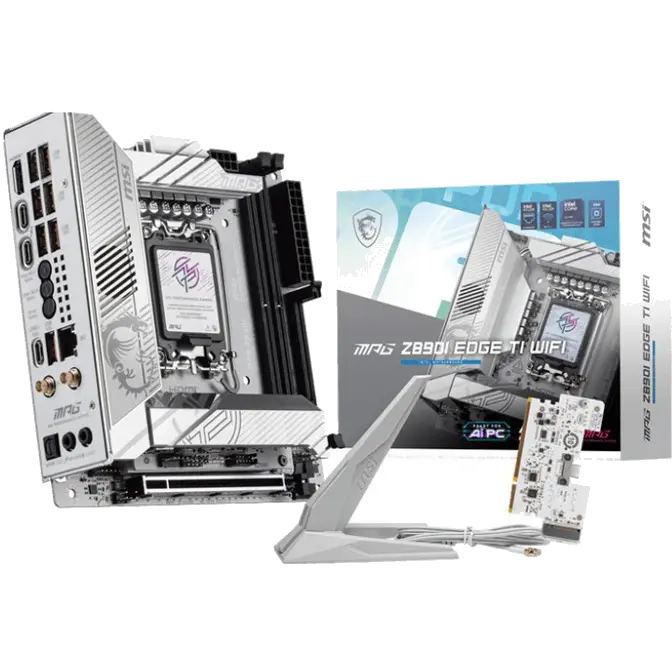

MSI S1851 Mini-ITX Z890I EDGE TI WIFI DDR5 White Motherboard
Web ID: 44061
CPU Socket: Intel 1851 (Series 2)
Form Factor: Mini-ITX
Chipset: Intel Z890
Memory Type: DDR5
PCIe Interface: 1 x PCIe x16
Storage Interface: 4 x M.2 PCIe || 2 x SATA
WiFi Standard: WiFi 7
Bluetooth: Bluetooth || Ver 5.4
LAN Speed: LAN || 5 Gigabit
Audio: 7.1 Channel
Video Interface: 2 x Thunderbolt 4 || 1 x HDMI
USB: 7 x USB 3.2 Type-A || 1 x USB 3.2 Type-C
Manufacturer Warranty: 3 Year
Manufacturer PN: MPG Z890I EDGE TI WIFI
Manufacturer Website
$615
| Chipset | INTEL Z890 |
|---|---|
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851 |
| Memory | 2x DDR5, Maximum Memory Capacity 128GB Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8600+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Onboard Graphics | 1x HDMI™ Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) • PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4 |
| Audio | Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output |
| Storage | 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 2x SATA 6G •M.2_4 & 2x SATA are supported by 5-in-1 XPANDER •Please refer to the manual for M.2 SSD heatsink restrictions. |
| RAID | •Supports RAID 0, RAID 1 and RAID 5 for SATA storage devices •Supports RAID 0, RAID 1, Raid 5 and RAID 10 for M.2 NVMe storage devices |
| Onboard Thunderbolt | 2x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display |
| USB | 2x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 7x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) *2x 5Gbps Type-A & 1x 20Gbps Type-C are supported by 5-in-1 XPANDER *USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1 |
| LAN | 1x Intel® Killer™ E5000B 5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
| LED FEATURE | 4x EZ Debug LED |

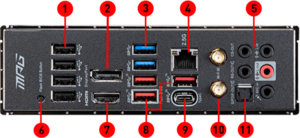

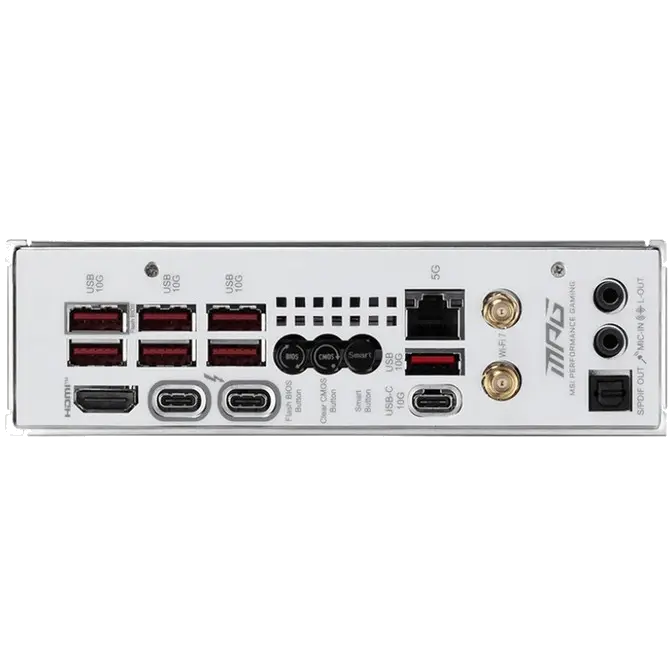

| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
| BOX CONTENT |  |
| PCB Info | Mini-ITX 170mmx170mm |
