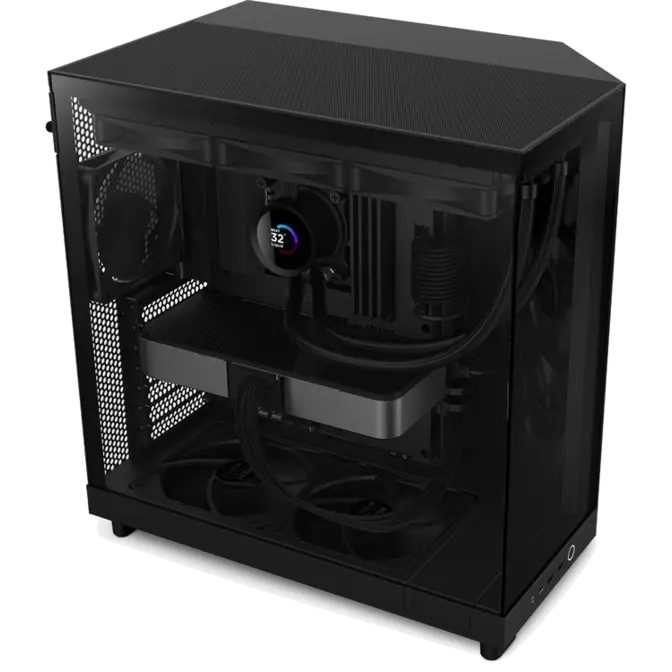

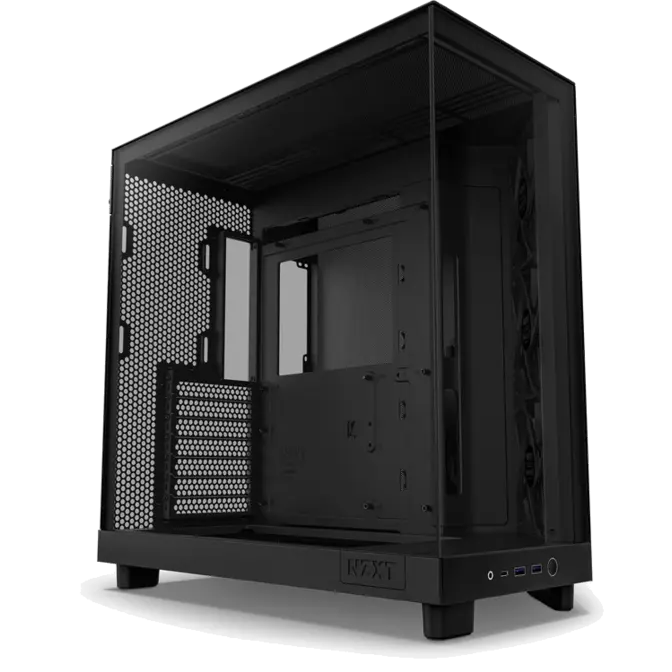

NZXT ATX H6 Flow Edition Case Black CC-H61FB-01
Web ID: 37317

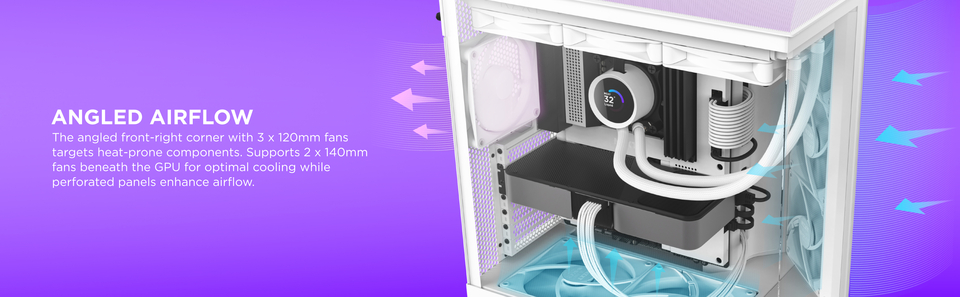

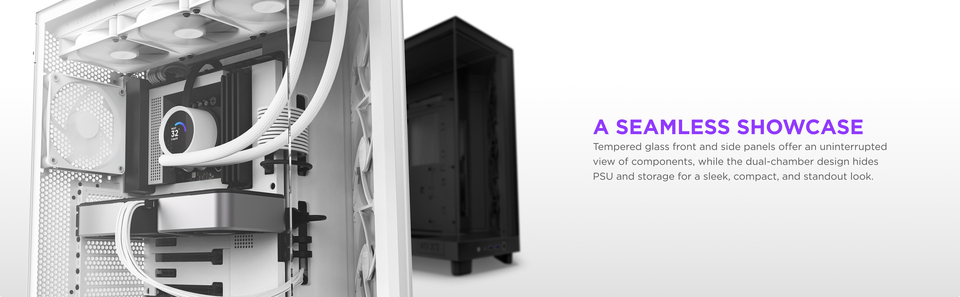

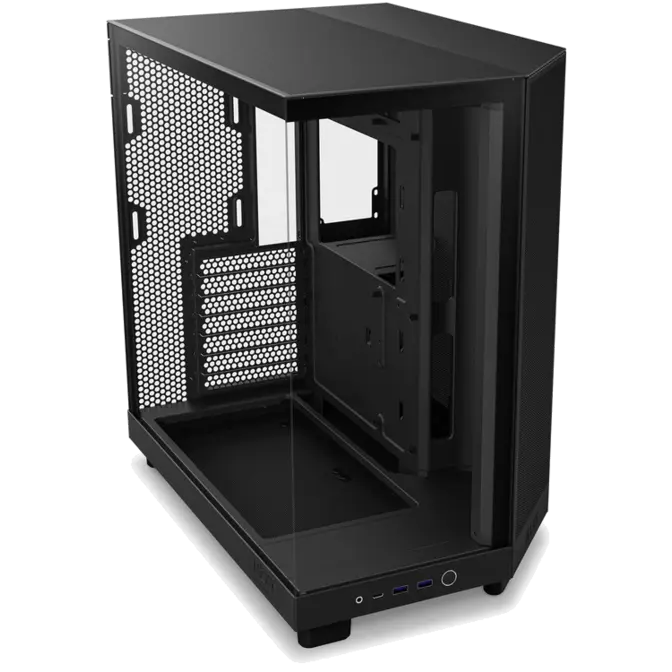

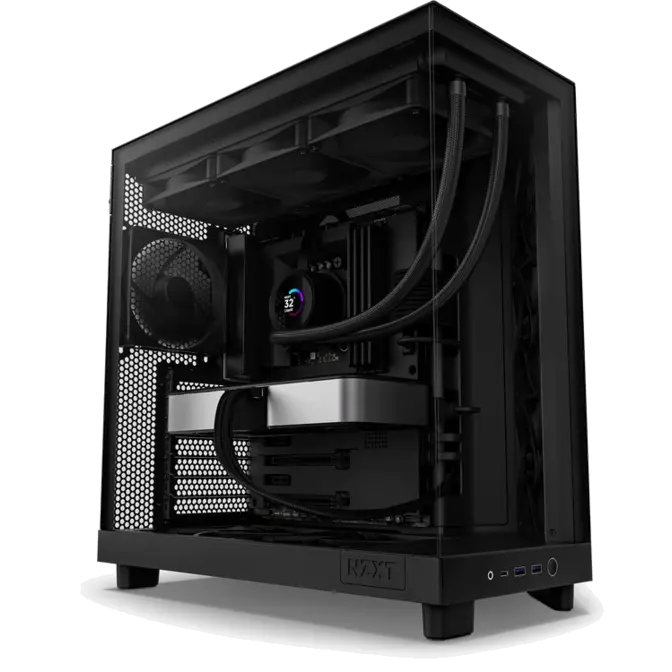

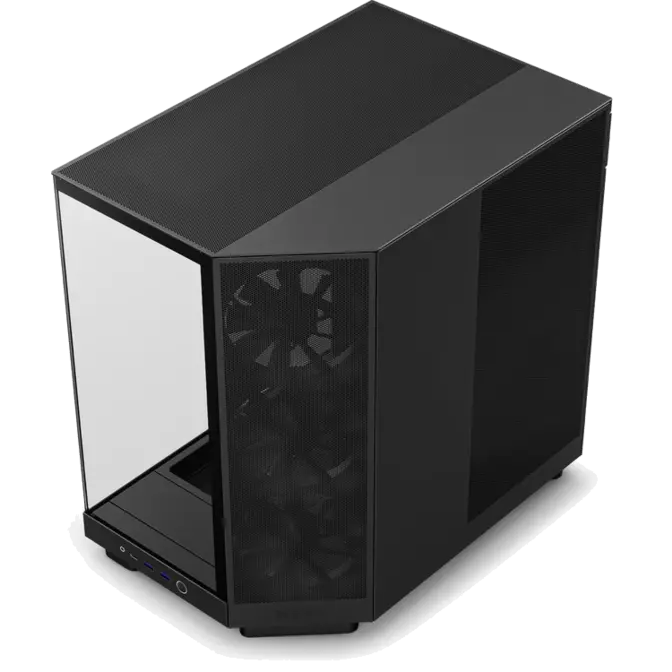

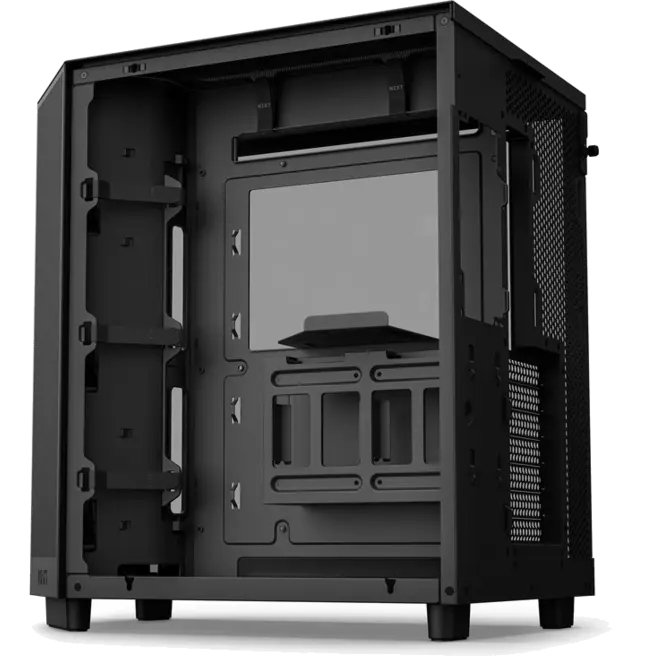

Experience performance with a fresh perspective. The H6 Flow's innovative compact design emphasizes GPU cooling with a strategically angled front corner, so the fans direct air where it's most needed. The panoramic glass proudly showcases the interior, while the dual-chamber layout frees up space for a cleaner look and better cooling performance. CASH PRICE
Manufacturer Warranty: 2 Year
Manufacturer PN: CC-H61FB-01
GTIN: 810074844147
$155SAVE $24
| Key Specs | |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Enclosure Type | Mid-Tower |
| Case Material | SGCC Steel, Ultra-Clear Tempered Glass, |
| Dark Tinted Tempered Glass (Black SKU only) | |
| Dimensions | |
| Height (with feet) | 435 mm / 17.13 in |
| Width | 287 mm / 11.3 in |
| Depth | 415 mm / 16.34 in |
| Weight | 9.4 kg |
| Compatibility & Clearance | |
| CPU Cooler Height | 163 mm / 6.42 in |
| GPU Length | 365 mm / 14.37 in |
| PSU Length | 200 mm / 7.87 in |
| Cable Management | 91 mm / 3.58 in |
| Top Radiator | 30 mm / 1.18 in |

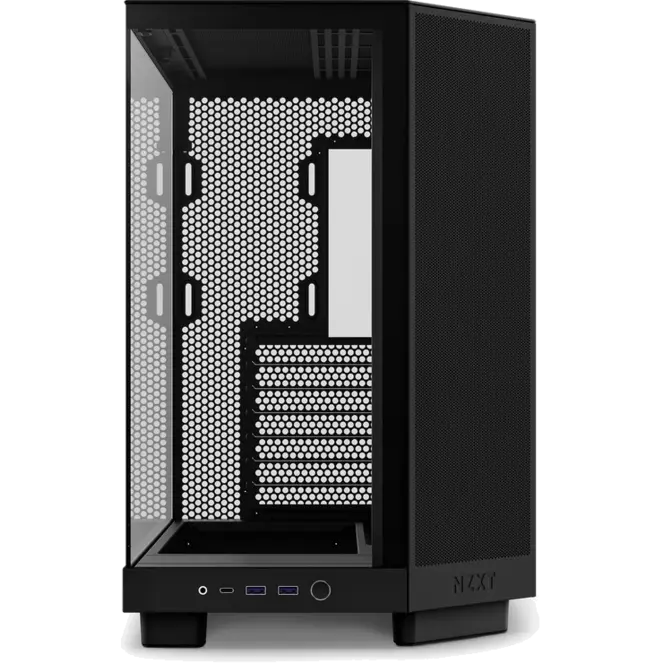

| Front I/O | |
| USB 3.2 Gen 1 Type-A | 2 |
| USB 3.2 Gen 2 Type-C | 1 |
| Headset Audio Jack | 1 |
| Expansion Slots | |
| Standard | 7 |
| Vertical | 0 |
| Drive Bays | |
| 2.5" | 2 |
| 3.5" | 1 |
| Fan Support | |

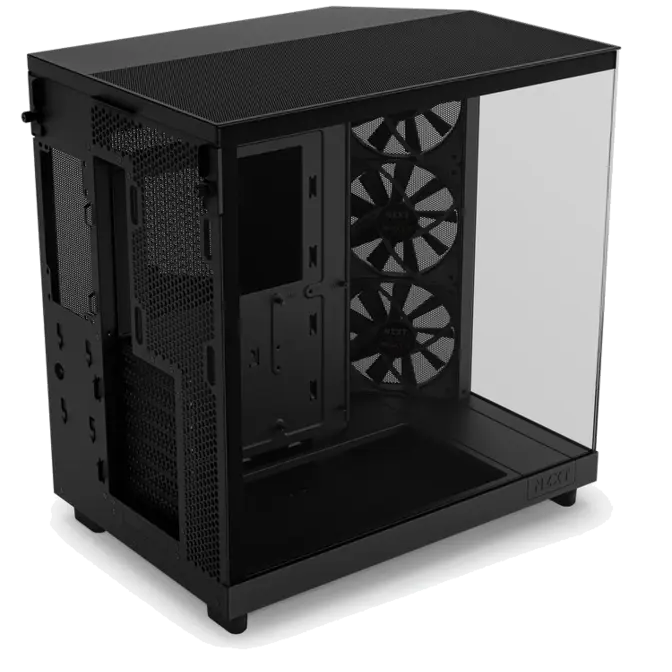

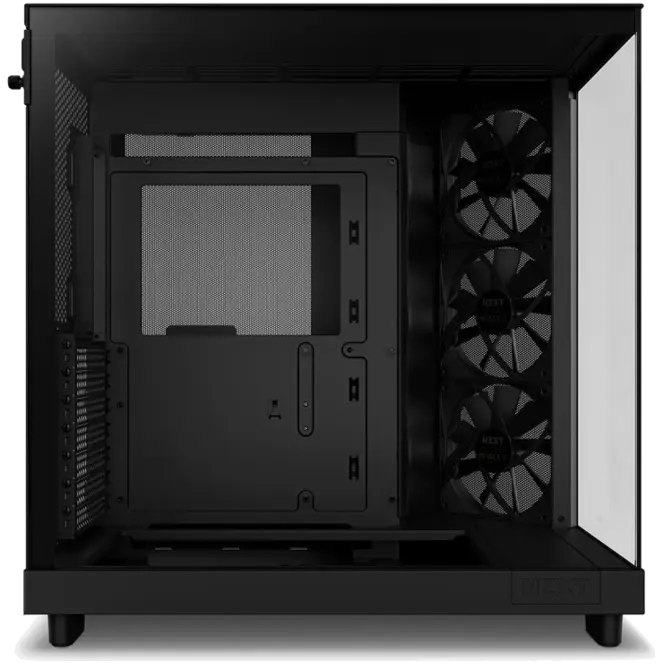

| Front-Right | 3 x 120 mm (3 x F120Q included) |
| Top | 3 x 120 mm / 2 x 140 mm |
| Bottom | 2 x 140 mm |
| Rear | 1 x 120 mm |
| Filters | High-Performance Mesh |
| Radiator Support | |
| Top | Up to 360 mm |
| Rear | Up to 120 mm |
| Fan Specs | |
| Model | F120Q Airflow Fan (Case Version) |
| Speed | 1200 ± 120 RPM |
| Airflow | 62.18 CFM |
| Static Pressure | 1.05 mm-H2O |
| Noise | 25.1 dBA |
| Fan Connector | 3-pin |
| General | |
| Warranty | 2 years |
| Model Number | CC-H61FW-01 (White) / CC-H61FB-01 (Black) |
| UPC | 810074844130 (White) / 810074844147 (Black) |
| EAN | 5056547204048 (White) / 5056547204055 (Black) |
| Inside the Box | |
| H6 Flow | 1 |
| F120Q Airflow (Case Version) | 3 |
| Installation Accessories | 1 |
| User Guide | 1 |
| Carton(Retail Box) | |
| Dimensions | 508 x 361 x 515 mm |
| Units Per Carton | 1 |
| Volume (CUFT) | 0.33 ft3 |
| Net Weight | 9.42 Kg |
| Gross Weight | 11.25 Kg |
