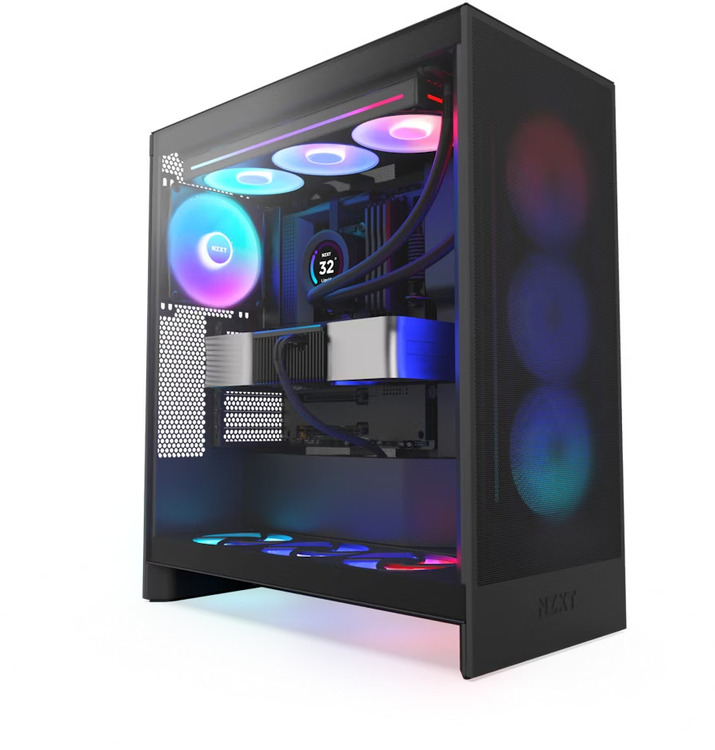

NZXT ATX H7 Flow RGB 2024 Black Case CM-H72FB-R1
Web ID: 40347
Case Type: ATX Case
Form Factor: ATX (PSU) || Mini-ITX || Micro-ATX || ATX || E-ATX
Colour: Black
Cooler Clearance: 185mm (Cooler Clearance)
GPU Max Length: 410mm Max GPU Length
Radiator Size: 120mm Radiator || 140mm Radiator || 240mm Radiator || 280mm Radiator || 360mm Radiator || 420mm Radiator
Interface: 2.5" Drive Bay || 3.5" Drive Bay
USB: 2 x USB 3.2 Type-A || 1 x USB 3.2 Type-C
Type: Gaming
Manufacturer Warranty: 2 Year
Manufacturer PN: CM-H72FB-R1
GTIN: 810074845571
Manufacturer Website
KEY SPECS
-
Motherboard Support:E-ATX (Up to 27.7mm), ATX, Micro-ATX, Mini-ITX
-
Enclosure Type:Mid-Tower
-
Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
DIMENSIONS
-
Height (With Feet):544 mm
-
Width:244 mm
-
Depth:468 mm
-
Weight:11.13 kg
COMPATIBILITY & CLEARANCE
-
CPU Cooler Height:Up to 185mm
-
GPU Length:Up to 410 mm
-
PSU Length:Up to 200 mm
-
Cable Management:Up to 34.5 mm
-
Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 57 mm
FRONT I/O PORTS
-
USB 3.2 Gen 1 Type-A:2
-
USB 3.2 Gen 2 Type-C:1
-
Headset Audio Jack:1
EXPANSION SLOTS
-
Standard:7
-
Vertical:0
DRIVE BAYS
-
2.5":2+2
-
3.5":2
FAN SUPPORT
-
Front:3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included)
-
Top:3 x 120 mm / 2 x 140 mm
-
Bottom:3 x 120 mm
-
Rear:1 x 120 mm / 1 x 140 mm
-
Filters:High-Performance Mesh
RADIATOR SUPPORT
-
Front:Up to 420 mm
-
Top:Up to 360mm
-
Rear:Up to 140mm
FAN SPECS
-
Model:F360 RGB Core Fan (Case Version)
-
Speed:1,700 ± 200 RPM
-
Airflow:50.1 CFM
-
Static:1.27 mm-H2O
-
Noise:23.3 dBA
-
Fan Connector:3-pin
GENERAL
-
Warranty:2 years
-
Model Number:CM-H72FB-R1 (Black) / CM-H72FW-R1 (White)
-
UPC:810074845571 (Black) / 810074845588 (White)
-
EAN:5056547205526 (Black) / 5056547205533 (White)
