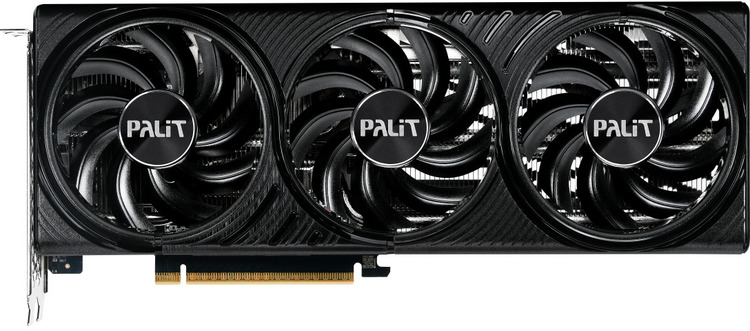

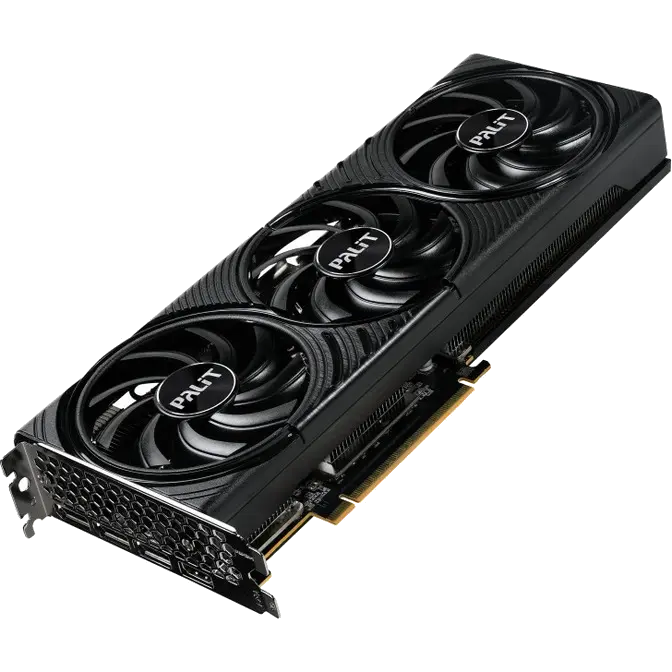

Palit GeForce RTX 5060 Ti Infinity 3 16GB Graphics Card
Web ID: 45475
NVIDIA Series: NVIDIA RTX 5060 Ti
VRAM Size: 16GB GDDR7 28Gbps
VRAM Type: GDDR7
VRAM Speed: 28Gbps

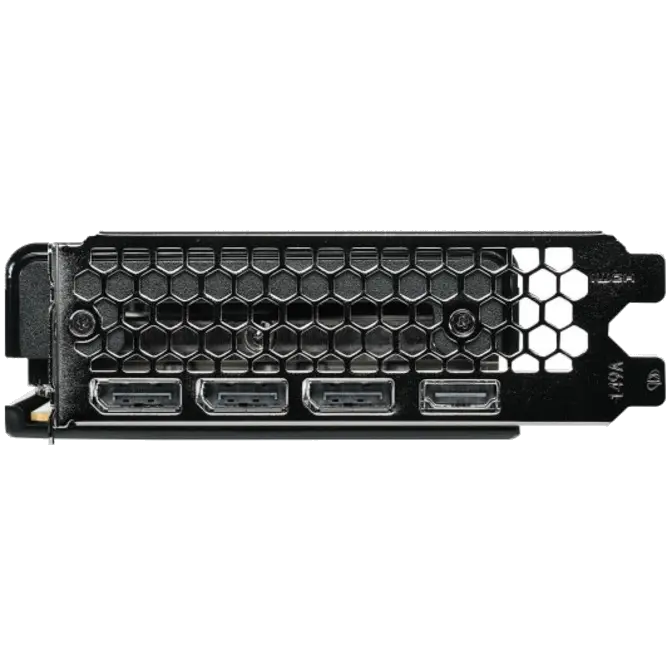

Display Output: 1 x HDMI Out || 3 x DisplayPort Out
Max. Displays: 4 Displays
PCIe Size: PCIe 5.0x8
GPU Technology: DLSS 4
Minimum PSU: 600 Watt
GPU Length: 295mm
CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: NE7506T019T1-GB2061S
Manufacturer Website
$819
| Memory Amount | 16 GB |
| Memory Interface | 128 bits |
| DRAM Type | GDDR7 |
| Graphics Clock | 2407 MHz |
| Boost Clock | 2572 MHz |
| Memory Clock | 28 Gbps |
| CUDA Cores | 4608 |
| Memory Bandwidth (GB/sec) | 448 |
| Microsoft DirectX | Microsoft DirectX® 12 Ultimate |
| OpenGL | 4.6 |
| Bus Support | PCI-E 5.0 |
| HDMI | HDMI 2.1b |
| DisplayPort | DP2.1b x 3 |
| Maximum Digital Resolution | 4K at 480Hz or 8K at 120Hz with DSC |
| Height | 2 Slot |
| Board Size | 291.9 x 116.6 x 41.3 mm |
| Graphics Card Power | 180 W |
| Recommended System Power | 600 W |
| Supplementary Power Connectors | 8-pin x 1 |
| Composite Heat Pipe | Y |
| Copper Base | Y |
| DrMOS | Y |
| 0-dB TECH | Y |
| NVIDIA Architecture | Blackwell |
| Ray Tracing Cores | 4th Generation |
| Tensor Cores | 5th Generation |
| NVIDIA DLSS 4 | Y |
| NVIDIA Reflex 2 | Y |
| NVIDIA Broadcast | Y |
| Resizable BAR | Y |
| NVIDIA App | Y |
| NVIDIA Ansel | Y |
| NVIDIA FreeStyle | Y |
| NVIDIA ShadowPlay | Y |
| NVIDIA® Highlights | Y |
| NVIDIA G-SYNC | Y |
| Game Ready Drivers | Y |
| NVIDIA Studio Drivers | Y |
| NVIDIA Omniverse | Y |
| RTX Remix | Y |
| NVIDIA GPU Boost | Y |
| Vulkan 1.4, OpenGL 4.6 | Y |
| NVIDIA Encoder (NVENC) | 1x 9th Generation |
| NVIDIA Decoder (NVDEC) | 1 x 6th Generation |
| AV1 Encode | Y |
| AV1 Decode | Y |
| CUDA Capability | 12.8 |
| VR Ready | Y |
| SFF-Ready Enthusiast GeForce Card | Y |
| Multi Monitor | 4 |
