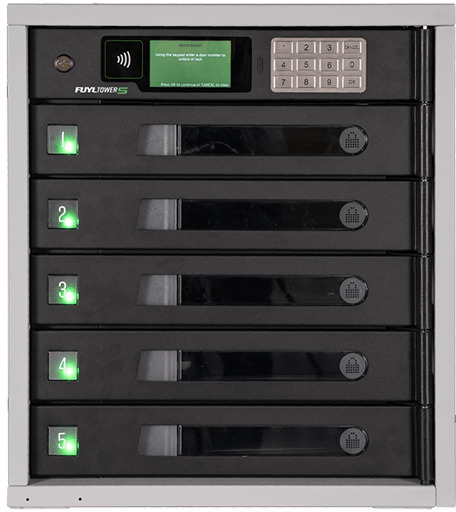

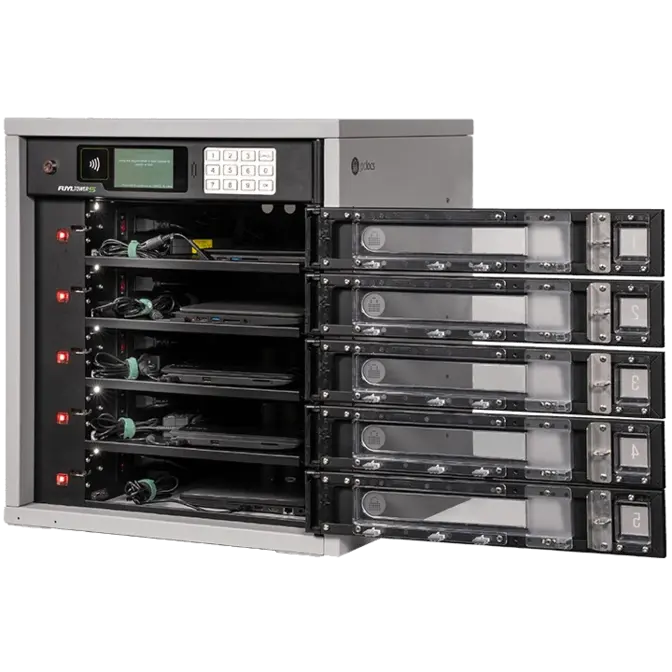

PC Locs FUYL Tower 5 Pro Mk3 1YR Cloud Essentials PCL3-10465

Web ID: 40118

Cloud essentials software enabled
A complete smart locker solution with cloud-based software to efficiently charge, store, secure and manage workflow for phones, tablets, laptops and other mobile devices.

STOCK IS SHIPPED DIRECT FROM SUPPLIER

ONLY WHILE STOCKS LAST!
Manufacturer Warranty: Lifetime
Manufacturer PN: PCL3-10465
Manufacturer Website

$6999
On-the-Fly Device Exchanges

Authorised users are granted on-the-fly access to loaner devices inside lockers.

External Cloud Integrations

This process can be automated further by integrating external help desk software with PC Locs Cloud.


Pre-Assigned Checkouts

Authorised users can access devices inside lockers any time without assistance.

On-the-Fly Checkouts

Authorised users can be given access to shared devices inside lockers on the fly.



Managed Public Charging

Authorised users can select a bay to charge their device at their convenience.

Full Public Mode

Anyone can select a bay and user-assigned PIN to charge their device.



FUYL Tower Hardware Features

USB-C PD Port and Power Outlet

Each bay contains one power outlet and one 36W USB-C PD Charging port.

Secure, Steel Construction

Robust construction deters attempted break-ins.

Serviceability in the FIeld

Various hardware and electronic components are packaged into modules.

RFID or PIN Code Access

Compartments can be opened via RFID or PIN code. FUYL Tower supports most RFID standards.

External LED Bay Status

Each bay has an external LED indicator to know if a bay is available (green), reserved (white) or offline (no light).

Illuminated Compartments

Internal bay lights help users clearly see contents inside when the door is open.

Easy-to-Follow Display

4.3" graphical color control module and keypad is simple to navigate for both admins and users.

Optional Network Kit

The Network Kit enables installation of a network switch (not included), making it possible to re-image devices remotely.





Tower Specs 528 (W) x 480 (D) x 583 (H) mm | 35 kg
Bay Specs 365 (W) x 438 (D) x 73 (H) mm
5 Bays per Tower
Bay Power One (1) power outlet
220-240VAC 50Hz 4A Max for each AC outlet

One (1) 36W USB-C Power Delivery port per bay
Available output power range: 5V 3A | 9V 3A | 12V 3A | 15V 2.25A | 20V 1.8A
Bay Access RFID
PIN
Tower Power Specs 1 IEC power receptical
220-240VAC, 50Hz, 10A
Hardware Bundle SKUs Cloud Software Bundle
PCL3-10465 - FUYL Tower Pro 5 & Cloud Bundle (1 Year Cloud Essentials)
Warranty Lifetime Warranty. Click for more details.
Optional Accessories FUYL Tower Pro 5 Network Kit (PCL3-10318).

FUYL Tower Pro 15 USB Retention Kit (PCL3-10409). Designed to secure USB-C cables inside the FUYL Towers USB-C port.

FUYL Tower Pro USB Retention Kit for Apple USB-C Cables (PCL3-10421). Designed to secure Apple USB-C cables inside the FUYL Towers USB-C port.
