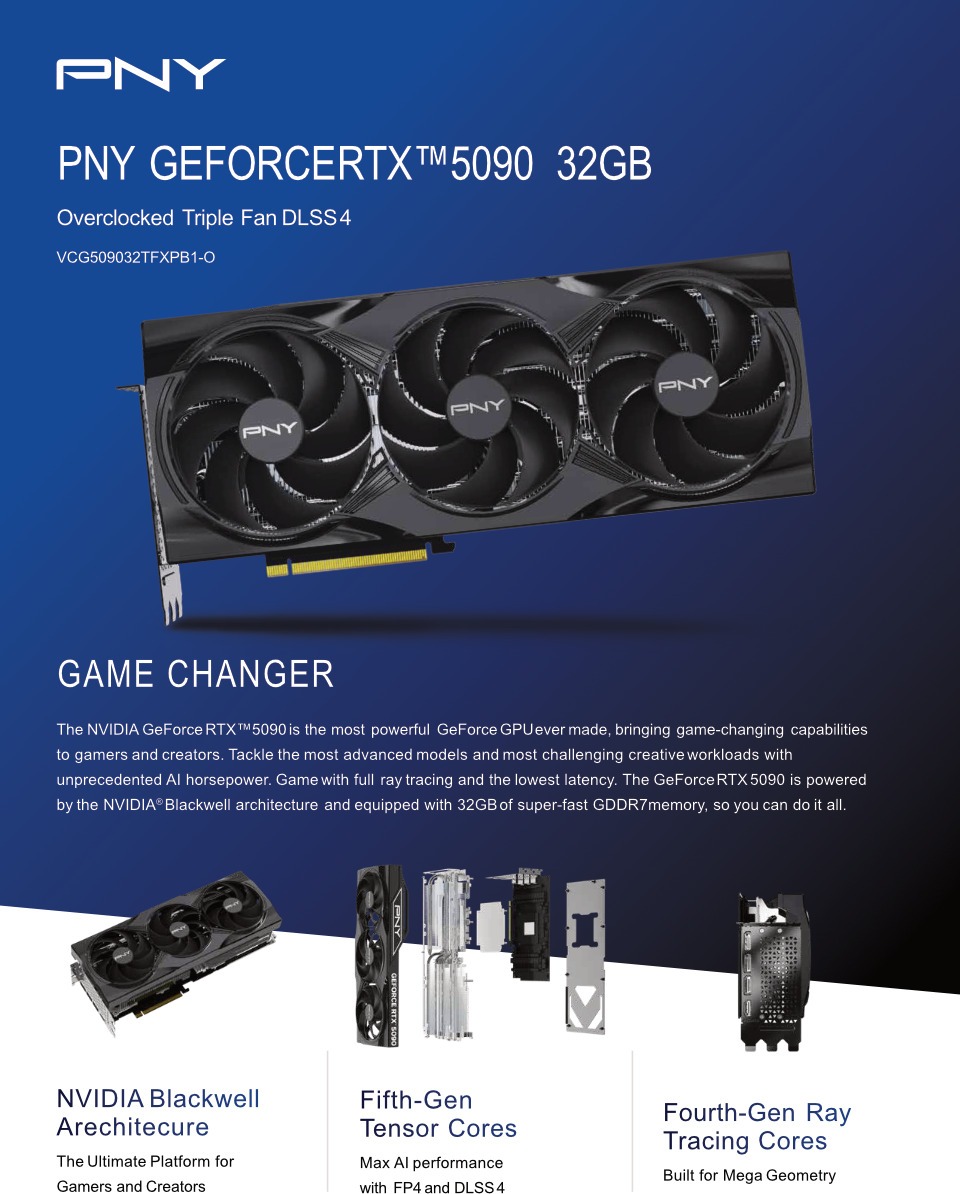

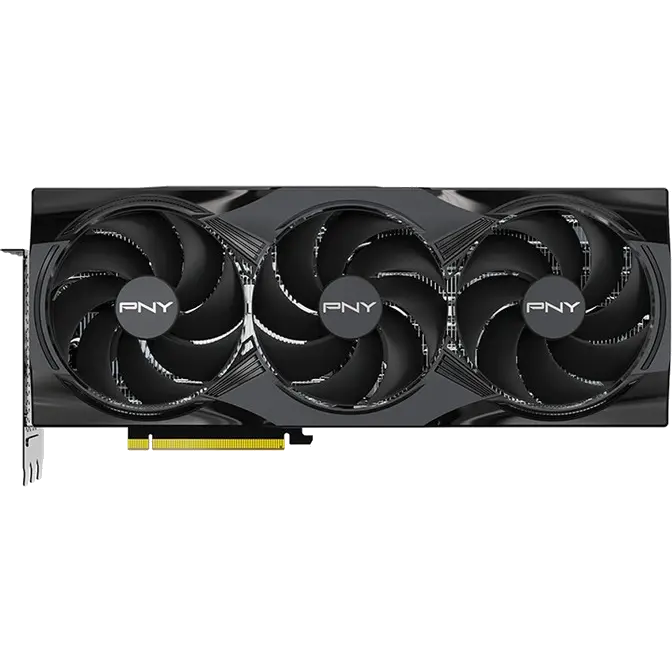

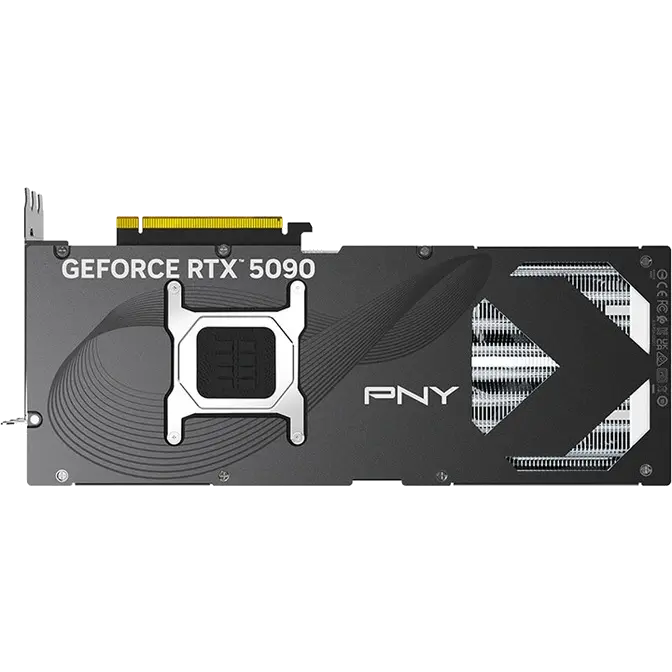

PNY RTX 5090 Triple Fan OC Graphics Card
Web ID: 45273
NVIDIA Series: NVIDIA RTX 5090
VRAM: 32GB GDDR7 28Gbps
Max. Displays: 4 Displays
Video Interface: 1 x HDMI || 3 x DisplayPort
PCIe Size: PCIe 5.0x16
GPU Technology: DLSS 4
Minimum PSU: 1000 Watt
GPU Length: 328mm
Manufacturer Warranty: 3 Year
Manufacturer PN: VCG509032TFXPB1-O
Manufacturer Website
$6999
Features
- NVIDIA Blackwell Architecture
- 32GB GDDR7 Memory
- 3x Display Port 1x HDMI
- 21,760 CUDA® Cores
- 600 W Thermal Design Power
System Requirements
- PCI Express-compliant motherboard with one 3.5-width x16 graphics slot
- Four 8-pin supplementary power connectors
- Total graphics power 575 W
- Required system power 1000 W2
- Microsoft Windows®?11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit
- Internet connection1
Package Contains
- PNY GeForce RTX™ 5090 OC
- 1x Auxiliary Power Cable

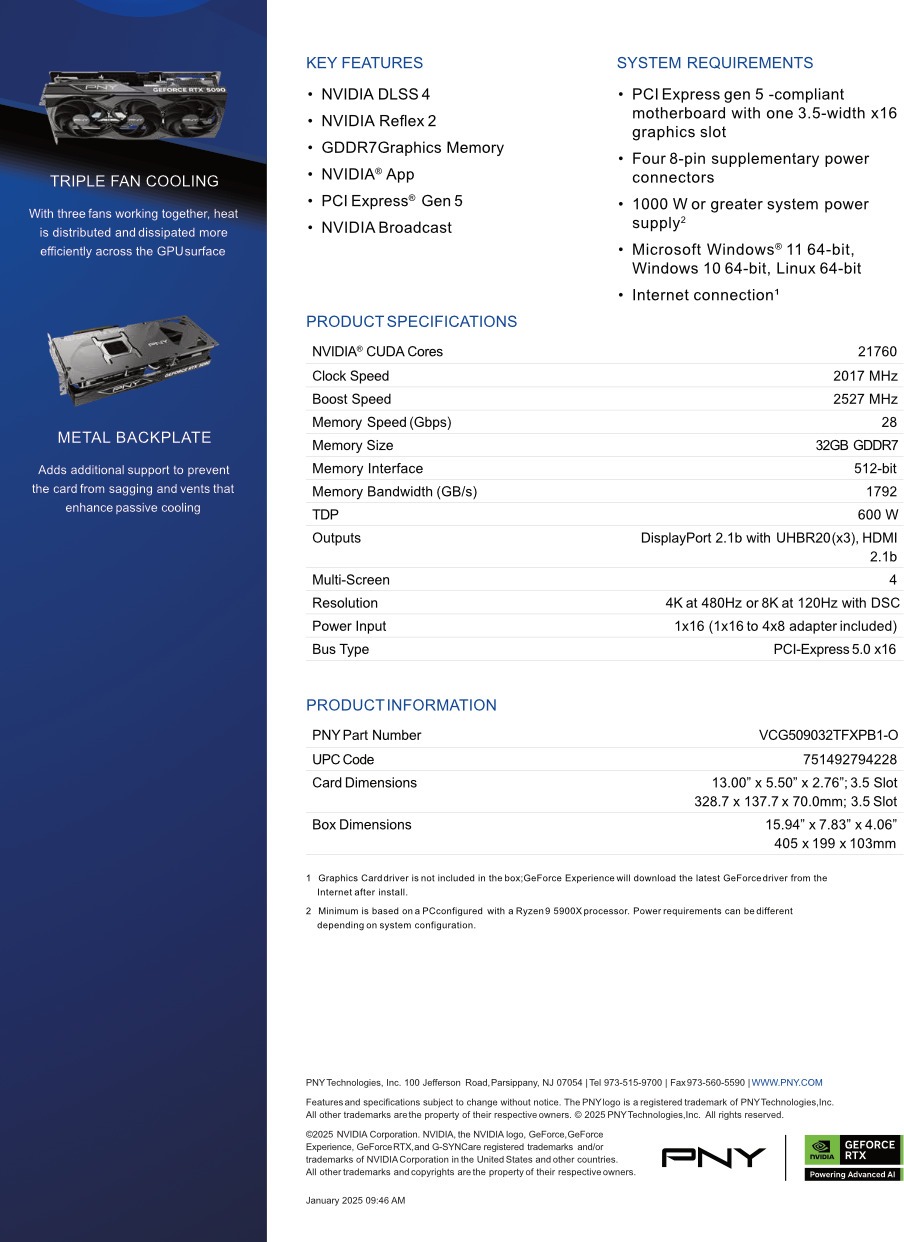

| Specifications | Details |
|---|---|
| PNY Part Number | VCG509032TFXPB1-O |
| UPC Code | 751492794228 |
| Architecture | Blackwell |
| CUDA® Cores | 21,760 |
| Clock Speed | 2.01 GHz |
| Memory Speed (Gbps) | 28 |
| Memory Size | 32GB GDDR7 |
| Memory Interface | 512-bit |
| Memory Bandwidth (GB/sec) | 1792 |
| TDP | 600 W |
| NVLink | Not Supported |

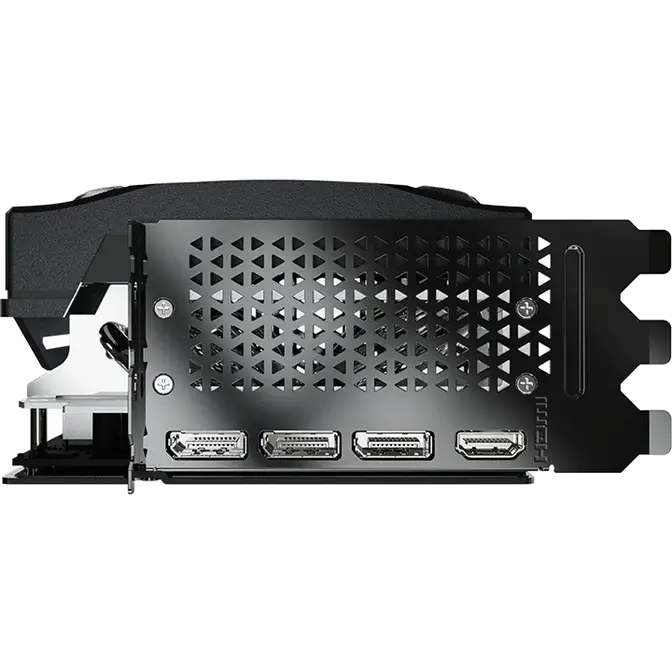

| Outputs | DisplayPort 2.1b (x3), HDMI 2.1b |
| Multi-Screen | 4 |
| Resolution | 4K at 480Hz or 8K at 120Hz with DSC 3 |
| Power Input | 16-pin (One 16-pin to Four 8-pin) |
| Bus Type | PCI-Express 5.0 x16 |
| Card Dimensions | 12.94" x 5.42" x 2.8"; 3.5 Slot |
