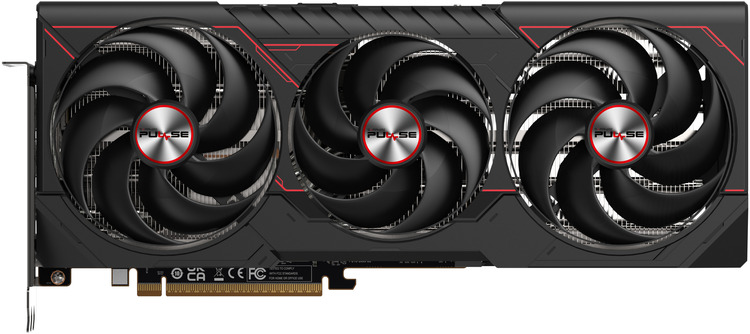

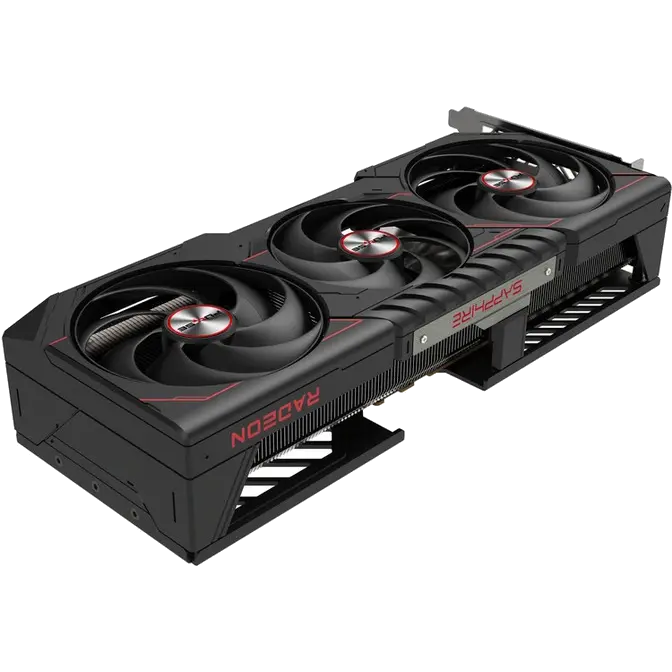

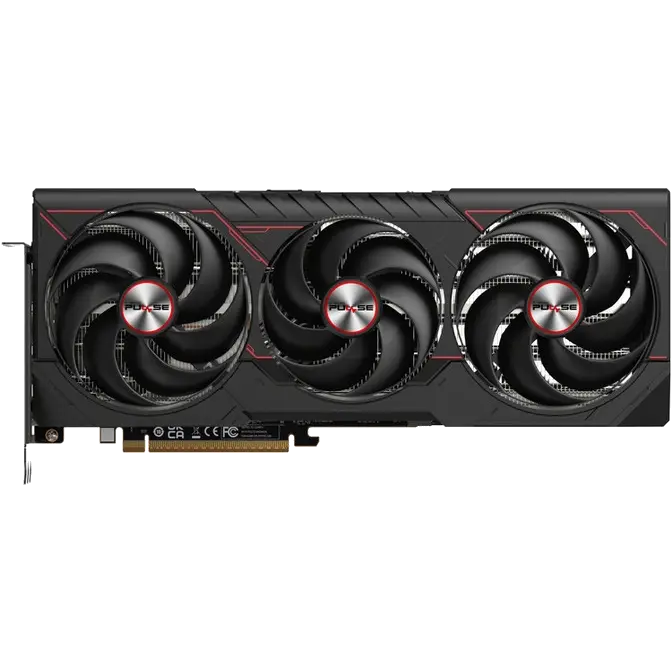

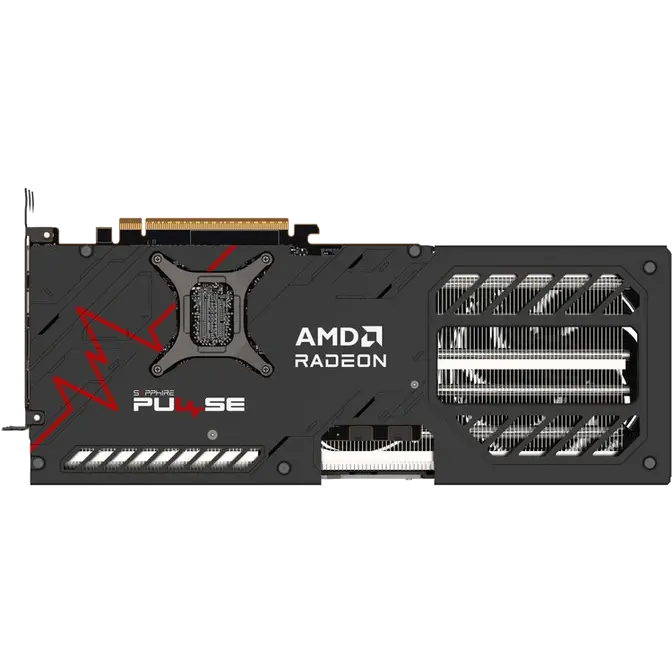

Sapphire RX 9070 XT PULSE 16GB Graphics Card
Web ID: 45426
Chipset Manufacturer: AMD Chipset
AMD Series: Radeon RX 9070 XT
VRAM Size: 16GB GDDR6 20Gbps
Max. Displays: 4 Displays
Video Interface: 2 x HDMI || 2 x DisplayPort
PCIe Size: PCIe 5.0x16
GPU Technology: FSR 4
Minimum PSU: 750 Watt
GPU Length: 320mm
ONLY WHILE STOCKS LAST! CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: 11348-03-20G
Manufacturer Website
$1359
| GPU | AMD Radeon™ RX 9070 XT Graphics Card |
| Architecture | AMD RDNA™ 4 Architecture |
| Engine Clock | Boost Clock: Up to 2970 MHz Game Clock: Up to 2400 MHz |
| Stream Processors | 4096 |
| Compute Units | 64 CUs (3rd Gen RT + 2nd Gen AI Accelerators) |
| Infinity Cache | 64MB |
| Ray Accelerators | 64 |
| AI Accelerator | 128 |
| Memory Size/Bus | 16GB/256 bit GDDR6 |
| Memory Clock | 20 Gbps Effective |
| Displays | Maximum 4 Displays |
| Resolution | HDMI®: 7680×4320 DisplayPort™ 2.1a: 7680×4320 |
| Interface | PCI-Express 5.0 x16 |
| Output | 2x HDMI® 2x DisplayPort™ 2.1a |
| BIOS Support | UEFI |
| Game Index | 4K |
| Sapphire Features | Honeywell PTM7950 Thermal Interface Material (TIM) AeroCurve Fan Blade Free Flow FrameDefense Integrated Cooling Module Tri-X Cooling Technology High TG Copper PCB Optimized Composite Heatpipes Metal Backplate Two-Ball Bearing Fans 14-Phase Digital Power Design Fuse Protection Intelligent Fan Control Precision Fan Control TriXX Supported TriXX Boost |
| Accessories Bundled | L-Shape Support Bracket |
| AMD Features | AMD RDNA™ 4 Architecture 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators) AMD HYPR-RX with AFMF 2 AMD FidelityFX™ Super Resolution 4 with AI Upscaling DisplayPort™ 2.1a AMD Radiance Display™ Engine AMD Fluid Motion Frames 2 technology AMD Radeon™ Anti-Lag 2 technology AV1 Encode/Decode AMD FidelityFX™ technologies Microsoft® DirectX® 12 Ultimate AMD Noise Suppression AMD Freesync™ technology 16 GB of GDDR6 on 256-bit Memory Bus AMD smart technologies AMD Software: Adrenalin Edition™ application |
| Cooler Type | Tri-X Cooling AeroCurve Fan Blade Free Flow Integrated Cooling Module High TG Copper PCB Optimized Composite Heatpipes Two-Ball Bearing |
| Form Factor | 3 slot, ATX Dimension: 320(L)X 120.25(W)X 61.6 (H)mm |
| Power Consumption | 304W Typical Board Power |
| OS | Linux®, Windows® 10, and Windows 11. 64-bit operating system required |
| System Requirement | Minimum 750 Watt Power Supply 2 x 8-pin Power Connector PCI Express® based PC with one X16 lane graphics slot available on the motherboard Minimum 8GB of system memory (16GB recommended) |
