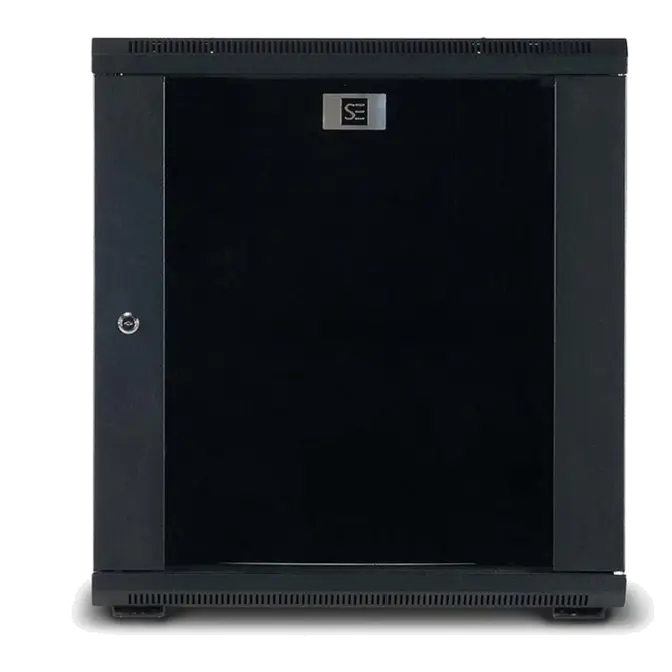

Serveredge 12RU Fully Assembled Wall Mounted Cabinet 600W x 600D x 630H Toughened Glass Door
Web ID: 20317
Serveredge Wall Mount cabinets and rack enclosures are perfect for storing your standard rack mount equipments on wall in various locations such as wiring receptacles, POS stations and offices were you have access to very limited floor space.This Serveredge rack is made up of sturdy wall mounting bracket and steel frame. It can mount up to 80 Kg of rack mount hardware. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: CBN-12RU-66SWM
Manufacturer Website
Serveredge Wall Mount cabinets and rack enclosures are perfect for storing your standard rack mount equipments on wall in various locations such as wiring receptacles, POS stations and offices were you have access to very limited floor space.This Serveredge rack is made up of sturdy wall mounting bracket and steel frame. It can mount up to 80 Kg of rack mount hardware. Vertical Mounting Rails in the rack are adjustable and can accommodate all standard 19 inch rack equipment. These Serveredge wall mount racks feature a toughened & tempered lockable glass door with perforated side panels to assure a generous airflow to keep your equipment operating safely. Side Panels of this rack are lockable & removable to ensure easy access to the mounted devices. The top and bottom panels of this rack include convenient cable routing ports. The rack features a removable back panel for easy routing cable through the wall when need be. The ingenious design allows for castors to be installed on the rack for use as a Free Standing Rack. The rack ships fully assembled and comes with a 25 Year manufacturer’s product warranty.
PRODUCT FEATURE
* Designed for limited space environments where equipment needs to be secure and out of the way
* Adjustable front vertical rack mount rails
* Locking, reversible front door and locking, removable side & rear panels
* Ingenious design allows for castors to be installed on the rack for use as a Free Standing Rack
* Fully assembled for quick installation
* Confirm to Standard ANSI/EIA RS-310-D, IEC297-2, DIN4191; PART1, DIN4194; PAT7, GB/T3047M 2-92
* Warranty : 25-year
PRODUCT SPECIFICATION
| Installed whole system maximum rack depth (mm) | 500 |
| Rack Height | 12RU |
| Shipping Dimensions (WDH/mm) | 650 X 650 X 687 |
| Shipping weight (kg) | 34 |
| Unit Dimensions (WDH/mm) | 600 X 600 X 637 |
| Unit weight (kg) | 28 |
| Colour | Black |
| Weight Capacity - Stationary (kg) | 80 |
| Grounding lug | Front and Back Door Frames |
PACKAGING INCLUDES
| Free Standing Rack | 1 |
| M6 screws | 20 |
| M6 cage nuts | 20 |
| M6 washers | 20 |
| Fixed Shelf | 1 |
| Keys | 2 |
| Owner's Manual | 1 |
