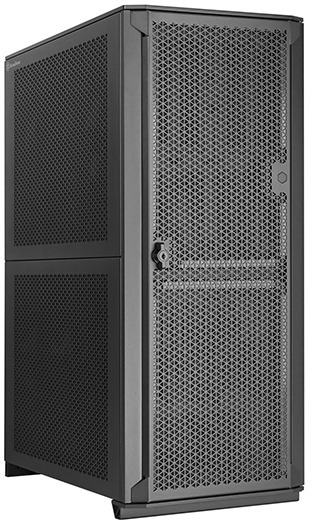

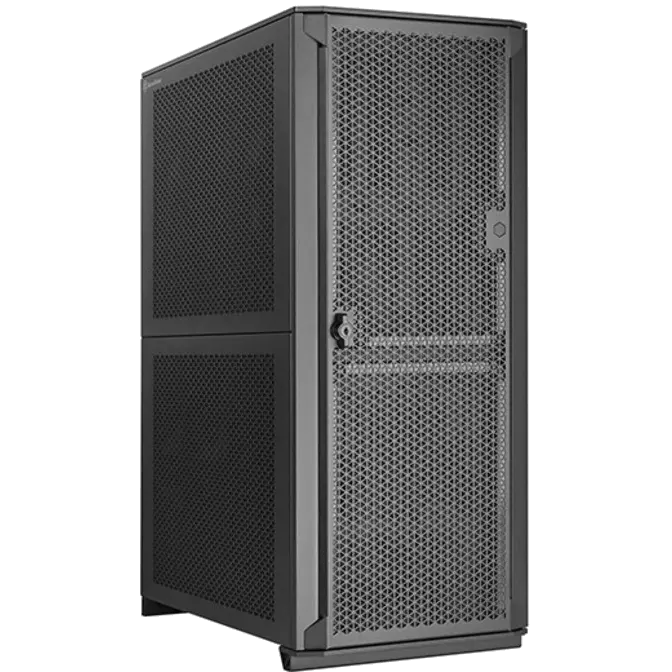

Silverstone ALTA D1 E-ATX Modular and Flexible Workstation Case
Web ID: 43636
Case Type: Server Chassis || Full Tower Case
Form Factor: ATX (PSU) || E-ATX || ATX || Micro-ATX || Mini-ITX
Colour: Black
Cooler Clearance: 190mm (Cooler Clearance)
GPU Max Length: 405mm Max GPU Length
Radiator Size: 120mm Radiator || 140mm Radiator || 240mm Radiator || 280mm Radiator || 360mm Radiator
Interface: 4 x 2.5" Drive Bay || 2 x 3.5" Drive Bay || 2 x 5.25" Drive Bay
USB: 2 x USB 3.0 || 1 x USB 3.1 Type-C
Usage: Workstation
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-ALD1B
Manufacturer Website
Model No.
SST-ALD1B
Material
Steel, aluminum
Motherboard
Drive bay
External
- (5.25" x 2 / 3.5" x 2 / 2.5" x 4) x 2 [1]
Cooling system
Front
- 180mm x 2 + 160mm x 1 or 140mm x 1 / 80mm x 8 + 140mm x 1
(180mm x 2 black fans included)
Rear
- 120mm x 1 / 140mm x 1 (140mm x 1 black fan included)
Bottom
- 120mm x 3 (without modular kit occupied)
Side
- Left side : 120mm x 6 / 140mm x 4 [2]
Right side : 120mm x 3 / 140mm x 2 [2]
Radiator support
Rear
- 120mm
Bottom
- 120mm / 240mm / 360mm (without modular kit occupied)
Side
- Left side : (120mm / 140mm / 240mm / 280mm / 360mm) x 2 [2]
Right side : 120mm / 140mm / 240mm / 280mm / 360mm [2]
Limitation of CPU cooler
191mm
Expansion slot
11 (without modular kit occupied)
7 (with modular kit occupied)
Limitation of expansion card
Length : 407mm (without installing front mounted fans)
Width : 186mm (with GPU brace installed) , 194mm (without GPU brace installed)
Power supply
Standard PS2 (ATX) + Standard PS2 (ATX)
Front I/O port
USB Type-C x 1
USB 3.0 x 2
Dimension
265mm (W), x 651mm (H), x 457mm (D), 78.84 liters
10.43" (W), x 25.63" (H), x 18" (D), 78.84 liters
Net weight
21.3 kg
Remark

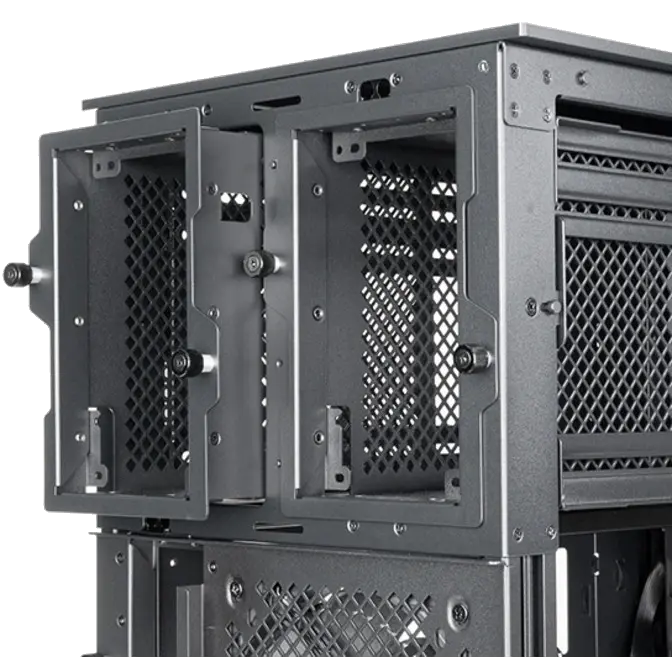

[1] Two drive cages are included, with a maximum of six cages that can be mounted inside the chassis. Additional cages can be purchased separately.
[2] Mounted on a fan/radiator bracket, with one bracket pre-installed on the left and right side of the chassis respectively, each bracket supports either 120mm x 3 or 140mm x 2 fans. The bracket on the right side can be removed to be mounted on the left side as per requirement. Additional brackets can be purchased separately
