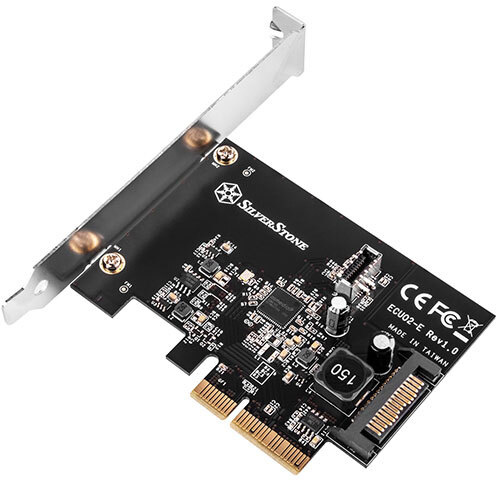

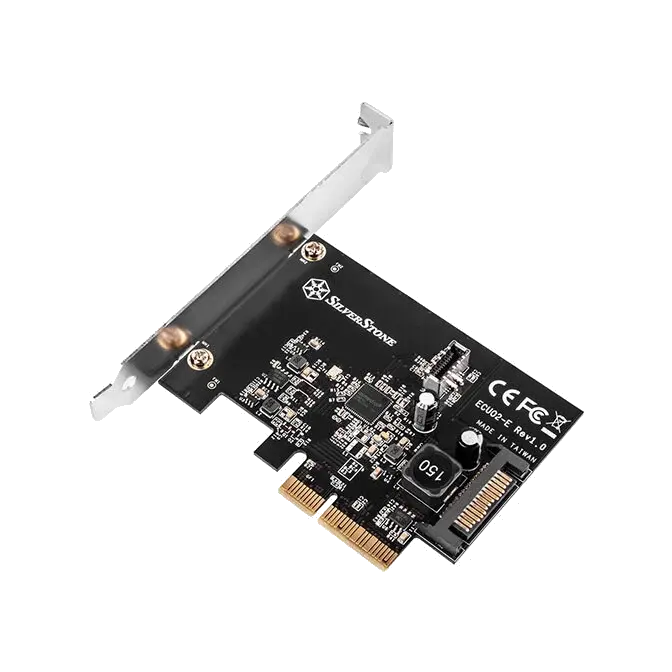

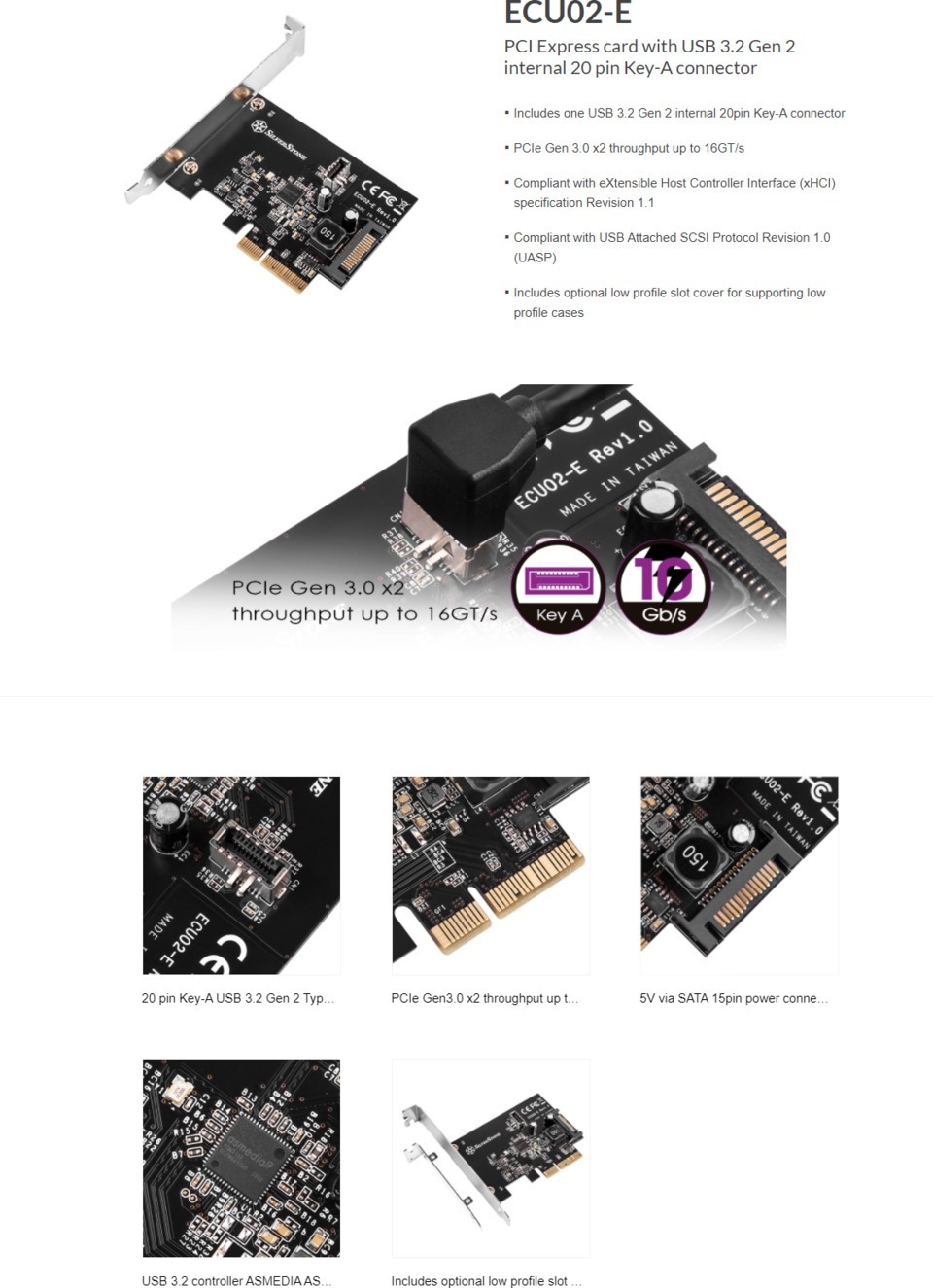

SilverStone ECU02-E Internal Expansion Card
Web ID: 38105
Includes one USB 3.2 Gen 2 internal 20pin Key-A connector
PCIe Gen 3.0 x2 throughput up to 16GT/s
Compliant with eXtensible Host Controller Interface (xHCI) specification Revision 1.1
Compliant with USB Attached SCSI Protocol Revision 1.0 (UASP)
Includes optional low profile slot cover for supporting low profile cases
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-ECU02-E
Manufacturer Website
Model No.
SST-ECU02-E
Host interface
Low profile - PCIe 3.0 x2 (16GT/s)
USB Ports
Internal 20 pin Key-A connector for USB 3.2 Gen2 Type-C port
USB 3.1 controller
ASMEDIA ASM3142
Transmitting Speed
USB 3.2 Gen2 (10Gbps), USB 3.1 Gen 1 / USB 3.0 (5Gbps), USB 2.0 (480Mbps), USB 1.1 (12Mbps)
Power requirement
5V via SATA 15pin power connector
Power Management
Support USB 3.2 and USB 2.0 link power management
Current protection
Support over current detection and protection
Operation Temperature
Operating temperature range: 0 ~ 70 ºC
Storage temperature range: -20 ~ +70 ºC
Humidity range: 5 ~ 95% RH
Operating system support
Windows 7* / 8 / 8.1 / 10** (32bit / 64bit) or future release version, Ubuntu / Linux / Mac OS***
Dimension
123mm (W) x 21mm (H) x 105mm (D)
Net weight
47g
Extra
UASP and Multiple INs function
