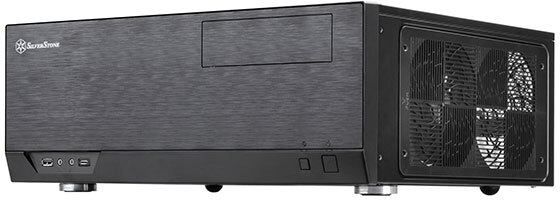

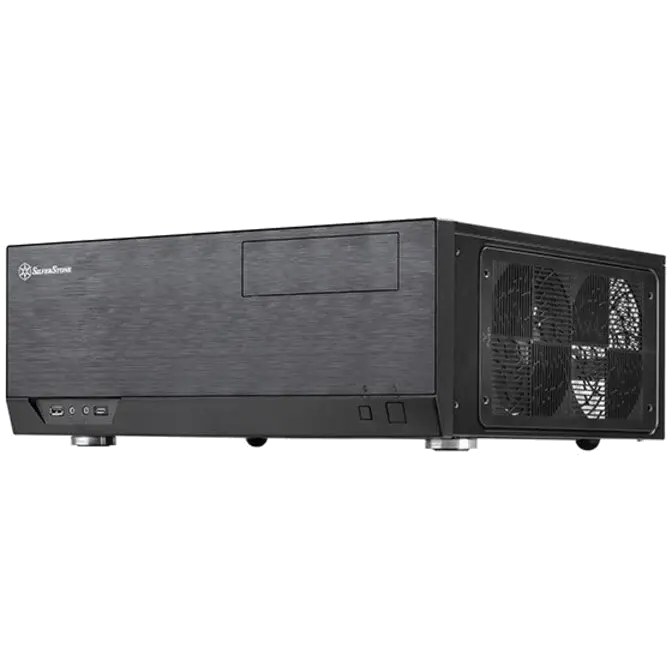

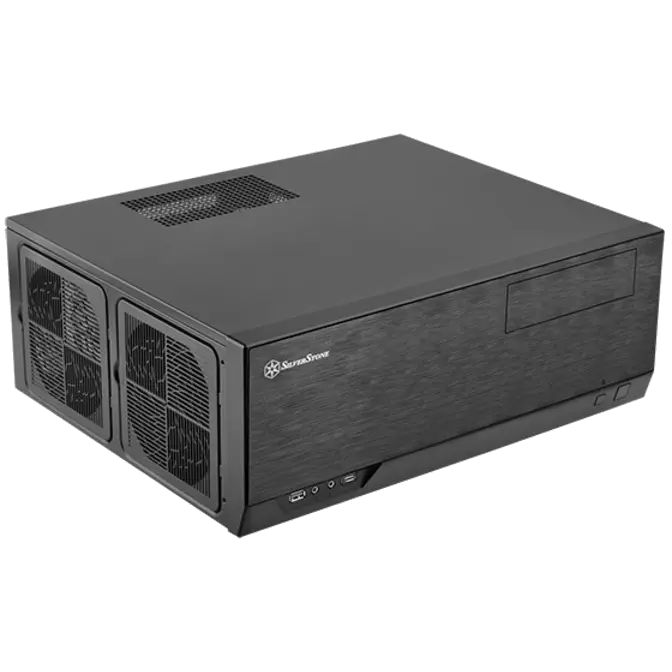

Silverstone GD09B-C Black 4U Rackmount Case No PSU
Web ID: 38011

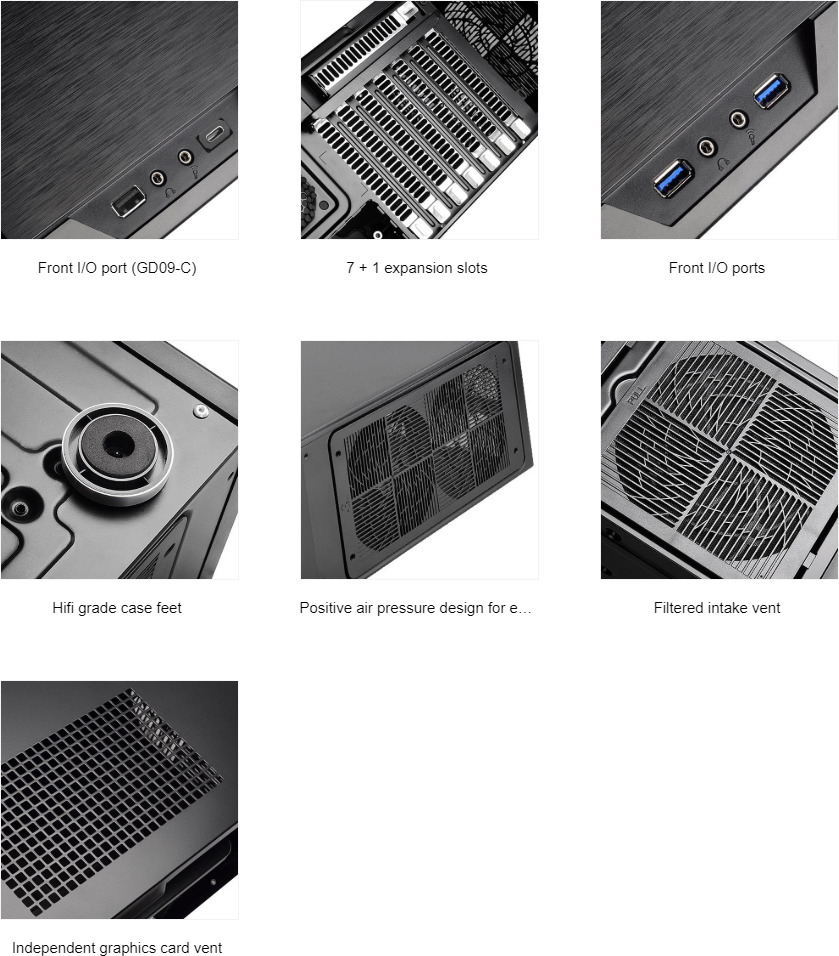

Includes USB Type-C front port (SST-GD09B-C only), Positive air pressure design for excellent cooling/quietness and dust-prevention, Supports SSI-CEB, ATX, Micro-ATX motherboards, Support SilverStone RA02 rackmount ears, Quick access filters included, Incredible 358mm depth to fit comfortably inside home theater cabinet, Drive cages with multi-purpose mounts eliminate need for adapters
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-GD09B-C
Manufacturer Website
Model No.
Type-C version
SST-GD09B-C (black, Type-C port)
USB 3.0 version
SST-GD09B (black)
Material
Plastic front panel with faux aluminum finish, 0.8mm steel body
Motherboard
Drive bay
External
- 5.25" x 1 (compatible with 3.5" x 1 or 2.5" x 2)
Internal
- 3.5" x 2 (one compatible with 2.5"), 2.5" x1
Cooling system
Rear
- 80mm x 2
Top
- Expansion card vent
Side
- Right:120mm x 2 (120mm x 1 fan included)
Left:120mm x 1 or 80mm x 1
Limitation of CPU cooler
138mm*

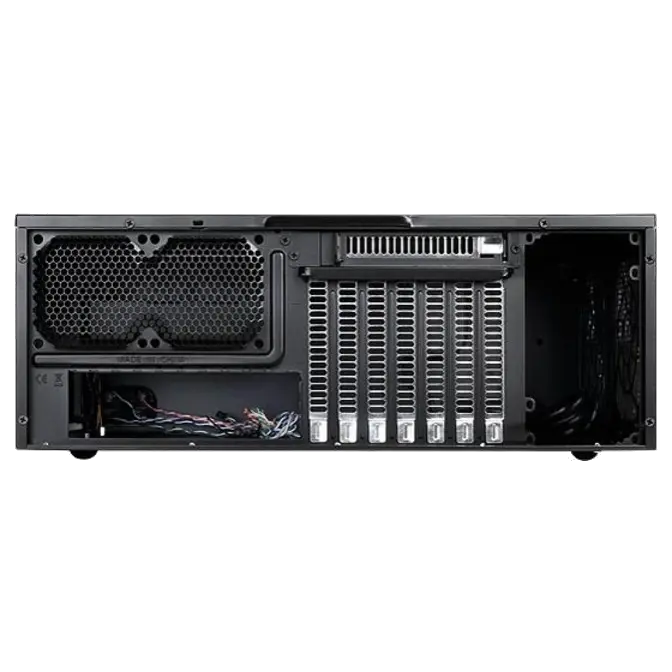

Expansion slot
7+1
Limitation of expansion card
Compatible up to 12.2" (309mm) long, width restriction-5.25" (133mm)
Power supply
Standard PS2 (ATX)
Limitation of PSU
170mm
Front I/O port
SST-GD09B-C: USB Type-C x 1, USB 3.0 x 1, Audio x 1, MIC x 1
SST-GD09B: USB 3.0 x 2, Audio x 1, MIC x 1
Dimension
440mm (W) x 170mm (H) x 358mm (D), 26.8 liters
17.32" (W) x 6.69" (H) x 14.09" (D), 26.8 liters
Net weight
4.2kg
Extra
Support Kensington lock
