SilverStone Mini-ITX Sugo Series SG16 Black Case
Web ID: 32377
SUGO 16

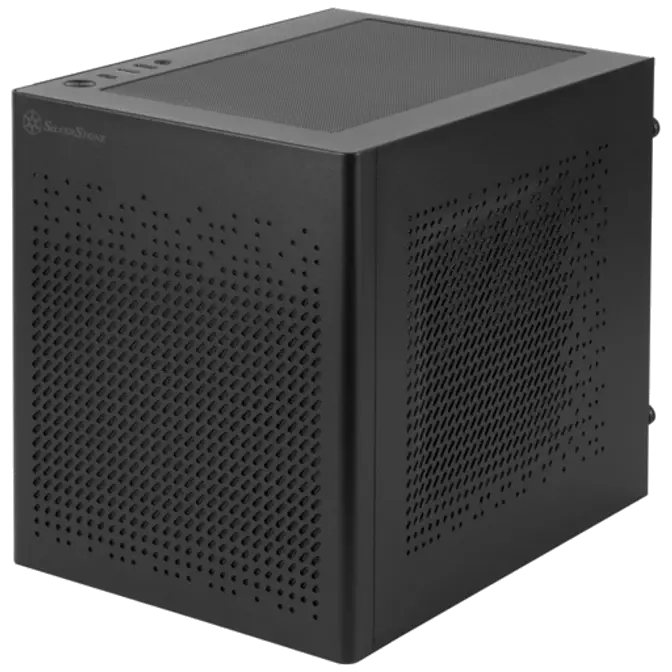

Mini-ITX cube chassis with all steel construction
Supports standard length graphics / expansion cards of up to 275mm
Compatible with Mini-DTX / Mini-ITX motherboard & ATX PSU
Supports 120mm All-In-One liquid cooling radiator
CPU cooler opening on motherboard back plate for convenient assembly and upgrade

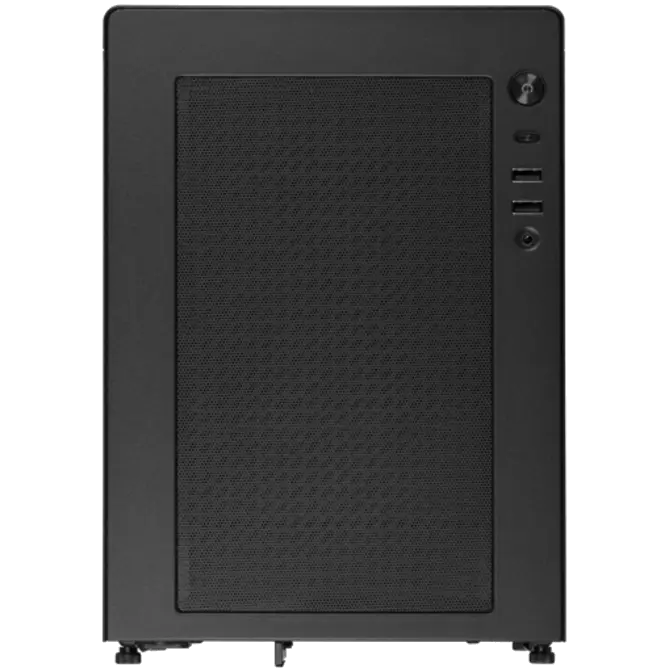

Front I/O port includes 2 x USB 3.0, combo audio x 1 ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-SG16B
GTIN: 844761024802
Manufacturer Website
$119
| Model No. | SST-SG16B (Black) SST-SG16W (White) |
|
| Material | Steel | |
| Motherboard | Mini-DTX, Mini-ITX | |
| Drive bay | External | -- |
| Internal | 2.5" x 1 2.5" x 1 or 3.5" x 1 (Occupies front fan mount) |
|
| Cooling system | Front | 80mm x 1 / 92mm x 1 / 120mm x 1 (120mm only allows SFX, SFX-L power supply installation) |
| Rear | 120mm x 1 | |
| Side | -- | |
| Top | -- | |
| Bottom | -- | |
| Internal | -- | |
| Radiator support | Front | 120mm (Can only install SFX, SFX-L power supply) |
| Rear | 120mm | |
| Top | -- | |
| Bottom | -- | |
| Internal | -- | |
| Expansion slot | 2 | |
| Front I/O port | USB 3.0 x 2 Combo audio x 1 |
|
| Power supply | Standard PS2(ATX) | |
| Limitation of VGA card | Length: 275mm Width: 147mm |
|
| Limitation of CPU cooler | Air cooler: 85mm ~ 172mm* | |
| Limitation of PSU | 150mm ~ 220mm | |
| Net weight | 2.66kg | |
| Dimension | 200mm (W) x 232mm (H) x 280mm (D), 13 Liters 7.87" (W) x 9.13" (H) x 11.02" (D), 13 Liters |
|
| Extra | Support Kensington lock | |
| Remark |
| * When installing a high tower air cooler, an SFX PSU must be installed as there will be interference when using an ATX PSU. Please refer to manual for more details. |
 |
